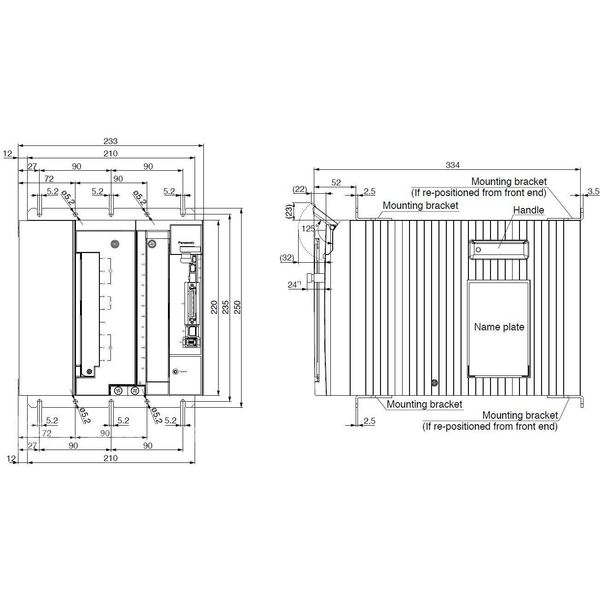

PANASONIC MGDHTB4A2 A5 SERIES G-FRAME AC SERVO DRIVE

MSRP: $4,813.00
Starting At: $4,692.68

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: MGDHTB4A2
IMS Product Code: 1970471
Packaging: Sold Individually

Description:

Panasonic MGDHTB4A2 A5 Series G-Frame AC Servo Drive, Three Phase Input - Supply Voltage 400VAC - Rated Output Current 150A - (Current Detector) 120A

Specifications:

  • Functions:
    (Control method) IGBT PWM Sinusoidal wave drive
    Connection to external regenerative resistor
    Built in dynamic brake
    Position control
    Speed control
    Torque control
    Combined position/speed control
    Combined position/torque control
    Combined speed/torque control
    Full-closed control
  • Type of network: Three phase input
  • Compliant with standard(s):
    EN55011
    EN61000-6-2
    EN61800-3
    EN61800-5-1
    ISO13849-1(PL d; Cat 3)
    EN61508
    EN62061
    EN61800-5-2(STO)
    IEC61326-3-1
    UL508C
    C22.2 No 14
    KN11
    KN61000-4-2; 3; 4; 5; 6; 8; 11
  • Analog inputs:
    1 × 16-bit A/D analog input
    2 × 12-bit A/D analog inputs
  • Analog outputs: 2 x analog monitor outputs
  • Digital inputs:
    10 x control signal inputs
    1 x Photo-coupler pulse signal input
    1 x line receiver pulse signal input
  • Digital outputs:
    6 x control signal outputs
    3x line driver pulse signal output
    1 x open collector pulse signal output

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
