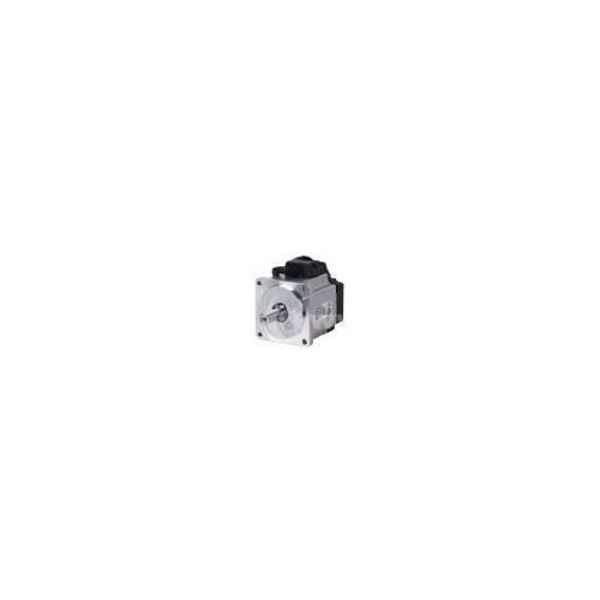

PANASONIC MHMF011L1D4 AC SERVO MOTOR

MSRP: $822.00
Starting At: $801.45

Quick Overview

Manufactured By: PANASONIC
Manufacturer Part Number: MHMF011L1D4
IMS Product Code: 1970509
Packaging: Sold Individually

Description:

Panasonic MHMF011L1D4 AC Servo Motor, (A6 Series - MHM) - Supply Voltage 100VAC

Specifications:

  • Functions:
    Round shaft
    Brake
    Oil seals with protective lip
  • Net Width (mm): (Flange) 40mm
  • Current consumption: (Brake excitation) 0.3A
  • Connection type: (Encoder terminal) Leadwire
  • Mechanical withstand:
    (During assembly; Radial load; P-direction) 147N
    (During assembly; Thrust load; A-direction) 88N
    (During assembly; Thrust load; B-direction) 117.6N
    (During operation; Radial load; P-direction) 68.6N
    (During operation;Thrust load; A; B-direction) 58.8N
  • Operating torque:
    (Rated torque) 0.32N.m
    (Continuous stall torque) 0.33N.m
    (Momentary max Peak torque) 1.11N.m
    (Brake static friction) 0.38N.m
  • Moment of inertia: 0.000074kg.m²
  • Net weight: 0.64kg
  • Rotational speed:
    (Rated) 3000rpm
    (Max) 6500rpm

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 30 Days
