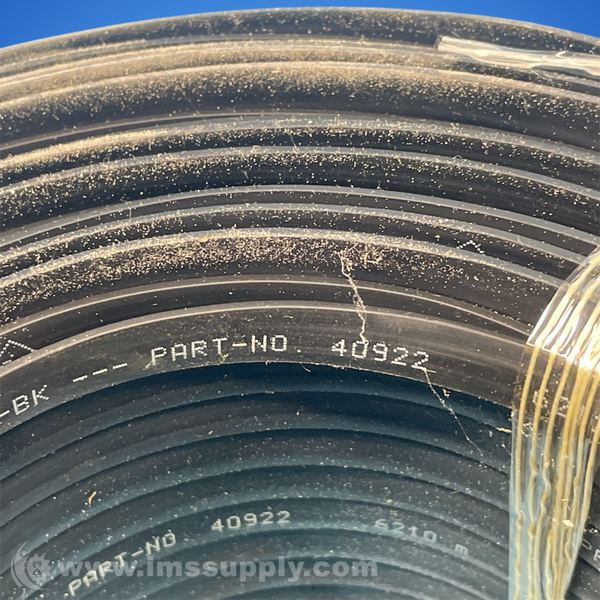

PEPPERL & FUCHS VAZ-FK-S-BK AS-INTERFACE FLAT CABLE
Quick Overview
Manufactured By: PEPPERL & FUCHS
Manufacturer Part Number: VAZ-FK-S-BK
IMS Product Code: 2088887
Packaging: Sold Individually
Description:
Pepperl & Fuchs VAZ-FK-S-BK AS-Interface Flat Cable
AS-Interface flat cable for external auxiliary voltage up to 24 V
Specifications
- Nominal Voltage: 24 V
- Current Loading Capacity: According to DIN VDE 0298 Part 4, Table 6, Column 4
- Conductor Temperature: Operating mode: 90 degrees C (363 K)Short-circuit: 200 degrees C (473 K)
- Ambient Temperature: Cable, fixed installation: -40 ... 85 degrees C (-40 ... 185 degrees F)Cable, flexing: -25 ... 85 degrees C (-13 ... 185 degrees F)
- Core Cross Section: 1.5 mm2
- Bending Radius: min. permissible bend radii in accordance with DIN VDE 0298 Part 3, Table 2
- Tension Loading: max. 50 N/mm2 on laying acc. to DIN VDE 0298 Part 3
- Material: Thermoplastic Elastomer (TPE)Rubber compound EM3, based on DIN VDE 0207 Part 21
- Core Insulation: Thermoplastic Elastomer (TPE)
- Sheath Color: black (similar to RAL 9005)
- Number of Cores: 2
- Cores Color: Core 1: brownCore 2: blue
- Cable Length: 100 m
- Mount: Cable
- Environmental Classification: RoHS Compliant
