ABB 1SCA022793R1010 ENCLOSED SWITCH DISCONNECTOR
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: 1SCA022793R1010
IMS Product Code: 2140362
Packaging: Sold Individually
Description:

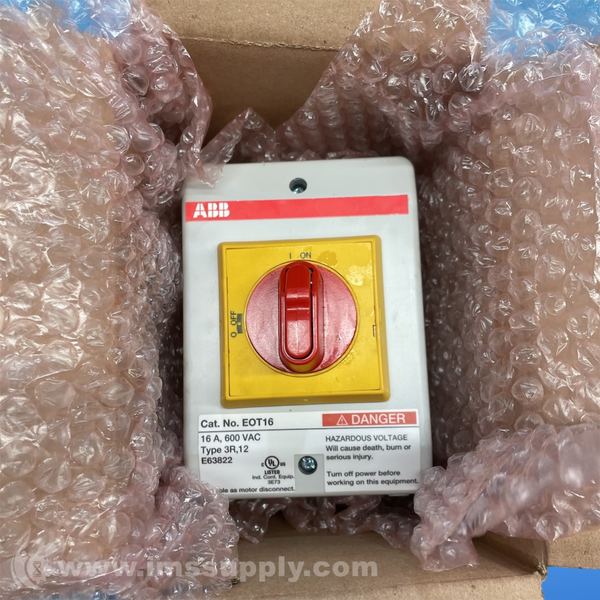

ABB 1SCA022793R1010 Enclosed Switch Disconnector
3-pole enclosed switch disconnector with selector handle, plastic enclosure, NEMA Type 3R Rainproof and NEMA 12 Indoor ratings, 16A general purpose current rating, interlocked cover with defeatable interlocking.
Specifications
- Number of Poles: 3
- Conventional Thermal Current (Ithe): 16 A
- Rated Operational Voltage: Main Circuit 750 V
- Rated Insulation Voltage (Ui): 750 V
- Degree of Protection: IP65
- Enclosure Material: Plastic
- Enclosure Type: NEMA Type 3R Rainproof
- Handle Type: Selector handle
- Handle Color: Red / Yellow
- Mechanical Durability: 20000
- Connecting Capacity Main Circuit: Screw Clamp 0.75...10 mm²
- Cable Entry Position: Up/Down
- Cable Outlets Per Side: 2x(ø0.5 / 12.7+ø0.75 / 19.1)
- Position of Line Terminals: Top In - Bottom Out
- Terminal Type: Screw Terminals
- Tightening Torque: 0.8 N·m
- Maximum Operating Voltage UL/CSA: 600 V
- Ampere Rating: 16 A
- Horsepower Rating UL/CSA: (220 ... 240 V AC) Three Phase 5 Hp, (480 V AC) 10 hp, (600 V AC) 10 Hp
- Tightening Torque UL/CSA: Main Circuit 7 in·lb
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
