ABB 1SCA108824R1001 FUSE SWITCH
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: 1SCA108824R1001
IMS Product Code: 2140464
Packaging: Sold Individually
Description:

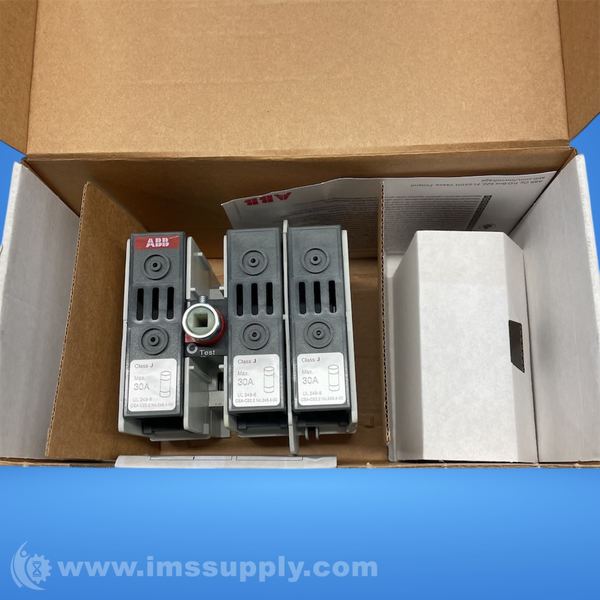

ABB 1SCA108824R1001 Fuse Switch
Front-operated fused manual switch-disconnector / load-break switch (LBS) with operating mechanism between the poles - for UL class J / J-type fuse
Specifications
- Product Net Width: 143 mm
- Product Net Height: 100 mm
- Product Net Depth / Length: 119 mm
- Product Net Weight: 0.7 kg
- Cable Cross-Section: 2.5 ... 25 mm
- Connecting Capacity: Stranded 0.75 10 mm
- Conventional Free-air Thermal Current (Ith): = 40 C 32 A
- Degree of Protection: acc. to IEC 60529 IP20
- Fuse Size: 30 A
- Fuse System: Class J
- Mounting Type: Base mounting
- Number of Poles: 3P
- Operating mode: Front
- Pollution degree: 3
- Power Loss: at Rated Operating Conditions per Pole 2 W
- Rated Conditional Short-Circuit Current (Inc): (600 V AC) 200 kA
- Rated Current (In): Main Circuit 30 A
- Rated Impulse Withstand Voltage (Uimp): 12 kV
- Rated Insulation Voltage (Ui): 1000 V
- Rated Operational Voltage: Main Circuit 600 V AC
- Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 1 kiloampere rms
- Standards: UL98
- Standards: IEC 60947-3
- Terminal Type: Screw Terminals
- Tightening torque: 1.5 2 Nm
- Wire Stripping Length: Main Circuit 12...14 mm
- Ampere Rating: 30 A
- Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
- Maximum Operating Voltage UL/CSA: Main Circuit 250 V DC

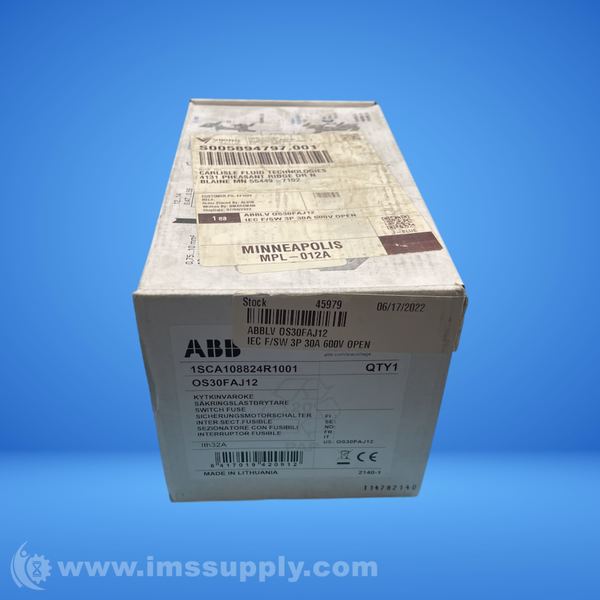

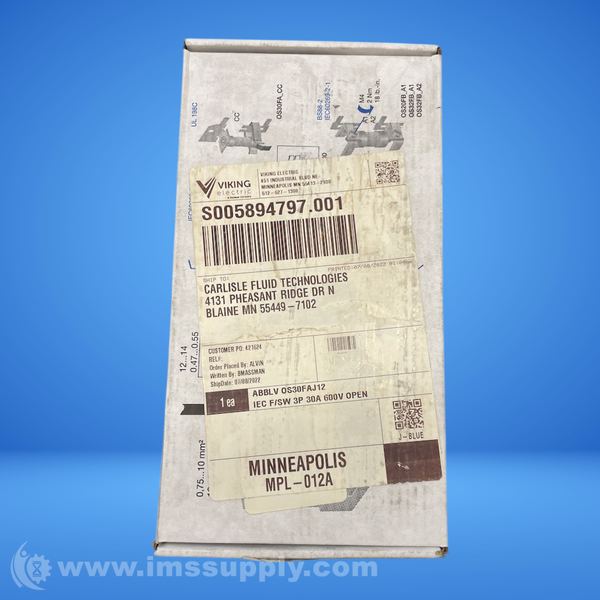

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
