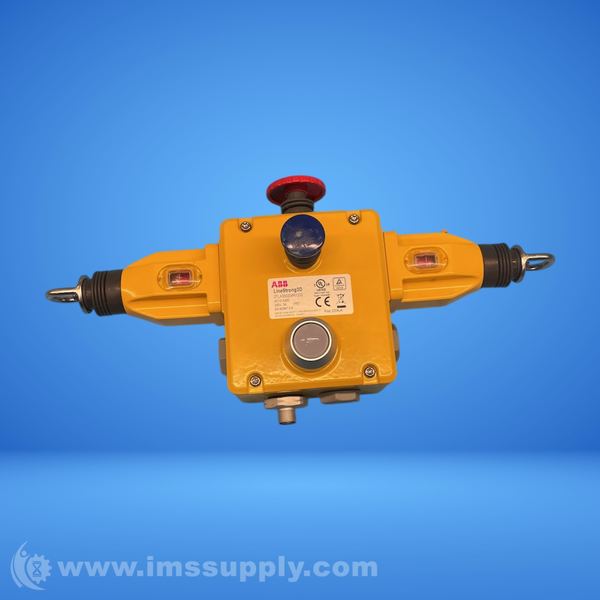

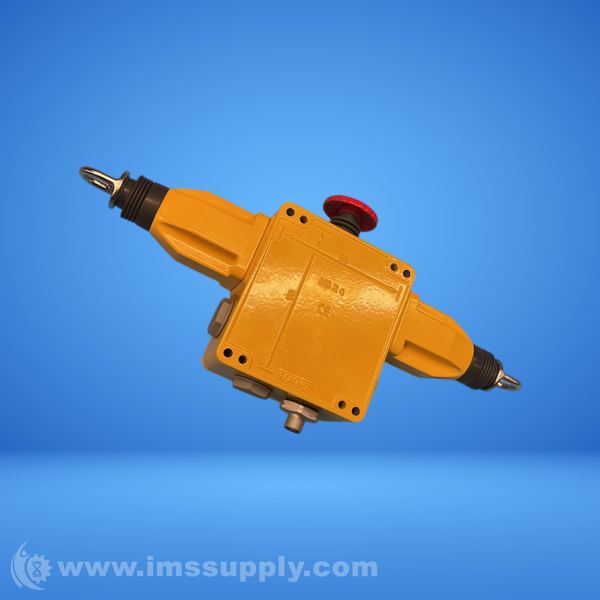

ABB 2TLA050204R1232 LINE STRONG 3D SAFETY ROPE PULL SWITCH
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: 2TLA050204R1232
IMS Product Code: 2130371
Packaging: Sold Individually
Description:
ABB 2TLA050204R1232 Line Strong 3D Safety Rope Pull Switch
Heavy Duty Safety Rope Pull Switch, 240 V, 3 A, 4NO/4NC Contact Configuration, Rope Actuator, NEMA 6/IP67 Enclosure, Clamp Terminal, -25 to 80 degrees C Ambient, Stainless Steel, 361 mm L x 92 mm W x 143 mm H Dimensions
Specifications
- Actuator: Rope
- Amperage Rating: 3 A
- Application: For designed to protect long conveyor lengths
- Casing Material: Die-Cast Yellow
- Color: Yellow
- Contact Configuration: 4NO/4NC
- Dimensions: 361 mm L x 92 mm W x 143 mm H
- Enclosure: NEMA 6/IP67
- Fuse Type: Switch
- LED Indicator: NPT LED
- Material: Stainless Steel
- Mounting Style: Cable
- Operating Voltage: 24VDC
- Rope Span: Up to 250 meters with two switches or 200 meters with a single switch
- Series: Line Strong 3D
- Standards/Approvals: BAA Compliant|cULus Listed|CE Certified|TUV Certified|IEC 947-5-1|IEC 947-5-5|EN 954-1|EN 62061|UL 508
- Temperature Rating: -25 to 80 degrees C Ambient
- Terminal Type: Clamp
- Type: Heavy Duty
- Voltage Rating: 240 V
- Weight: 3 lbs 3 oz
