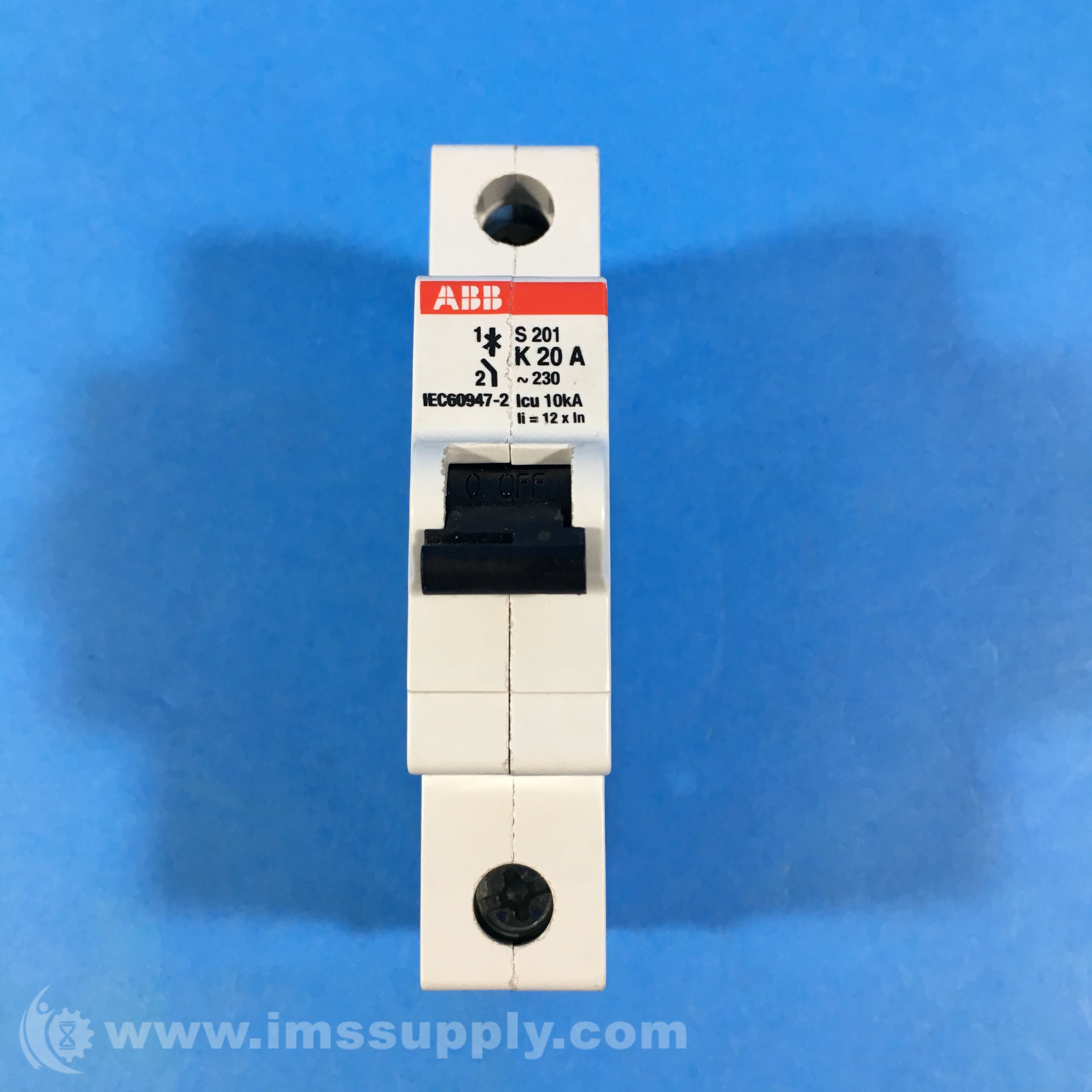

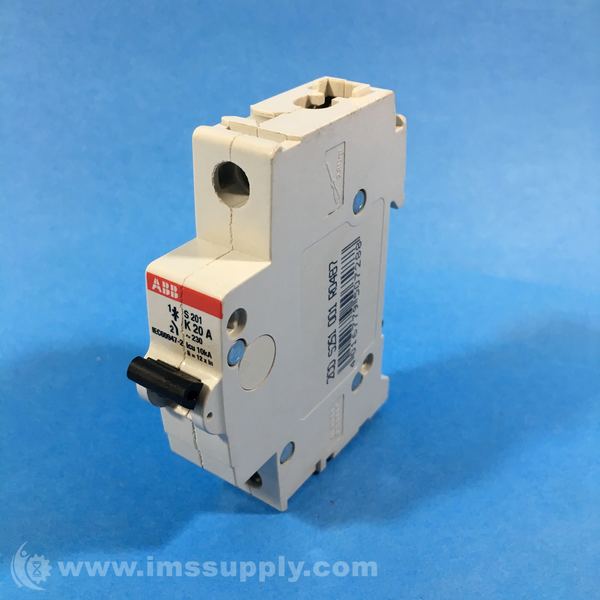

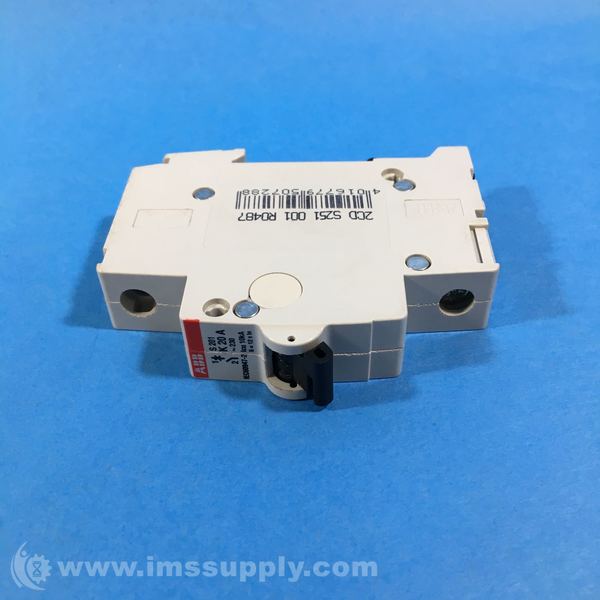

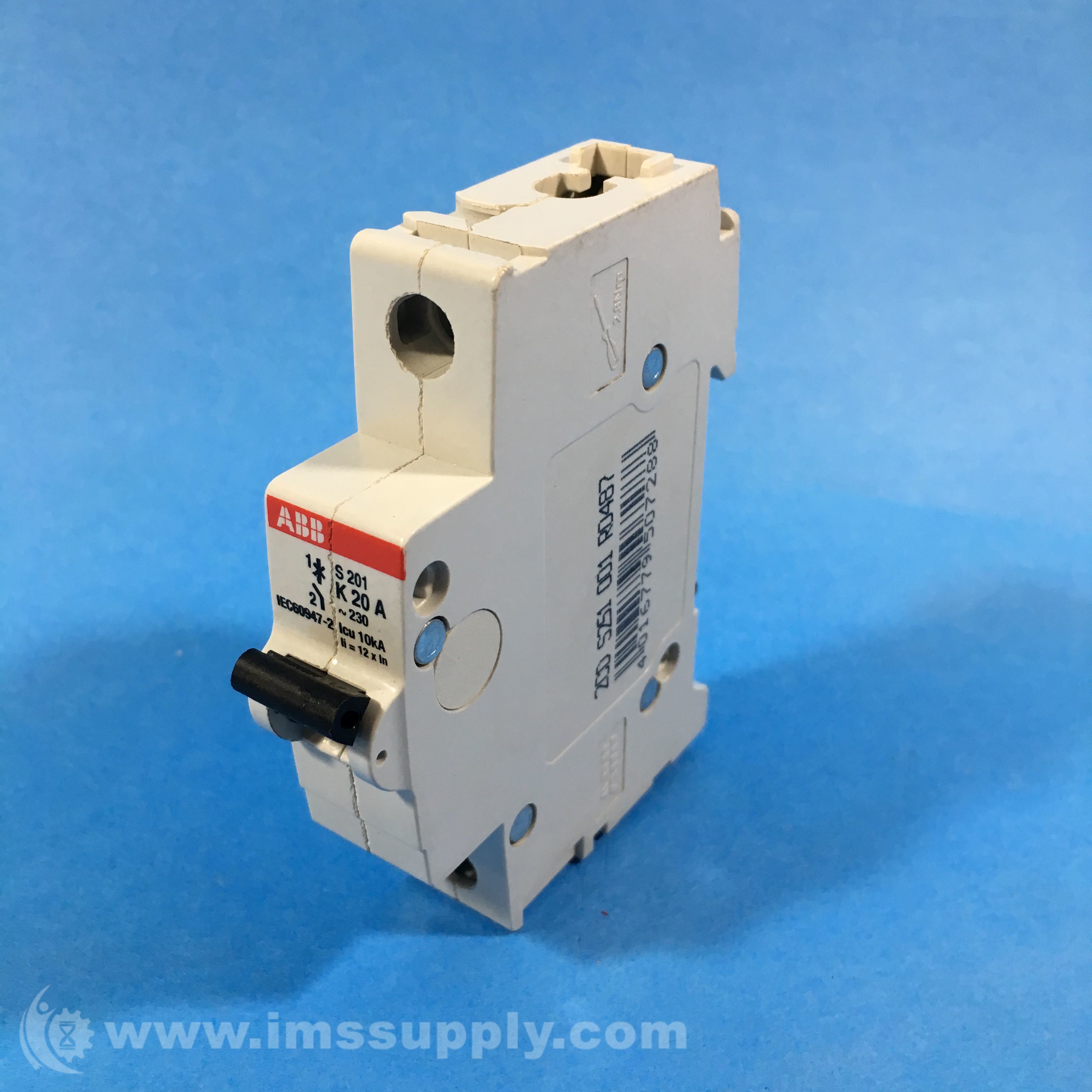

ABB S201-K20 MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: ABB
Manufacturer Part Number: S201-K20
IMS Product Code: 1808322
Packaging: Sold Individually
Description:
ABB S201-K20 Miniature Circuit Breaker
Miniature circuit breaker with K-curve characteristic, 1-pole, 20A rated current, 6kA interrupt rating at 277/480V AC. Screw connection, DIN rail mounting, IP20 enclosure.
Specifications
- Actuator Type: Toggle
- Actuator marking: I / O
- Actuator material: Insulation Group II, Black, Sealable
- Amperage Rating: 20
- Color: Light Gray
- Connection Type: Screw
- Contact position indication: Red ON / Green OFF
- Curve: K
- Dielectric test voltage: 50/60 Hz, 1 min- 2 kV
- Dimensions: 69 mm L x 17.5 mm W x 88 mm H
- Electrical endurance: 20000 AC cycle
- Enclosure Type: IP20
- Frequency Rating: 50/60 Hz
- Height: 69 mm
- Housing material: Insulation Group II, RAL 7035
- Input voltage type: AC/DC
- Installation size: acc. to DIN 43880 1
- Interrupt Rating: 6 kA
- Length: 88 mm
- Mechanical endurance: 20000 cycle
- Mount: DIN Rail
- Mounting Position: any
- Mounting Type: DIN Rail
- Number of Poles: 1
- Number of protected poles: 1
- Operational voltage: Maximum (Incl. Tolerance) 253 V ACMaximum (Incl. Tolerance) 72 V DC
- Overvoltage category: III
- Power Rating: 2.7 W
- Power supply connection: Arbitrary
- Rated conditional short-circuit current: (230 V) 10 kA(400 V) 10 kA
- Rated current (In): 20 A
- Rated impulse withstand voltage: 4 kVat 2000 m 5 kVat Sea Level 6.2 kV
- Rated insulation voltage: acc. to IEC/EN 60664-1 440 V
- Rated operational voltage: acc. to IEC 60898-1 230 / 400 V ACacc. to IEC 60947-2 230 V AC
- Rated service short-circuit breaking capacity: (133 V AC) 15 kA(230 V AC) 7.5 kA
- Rated short-circuit capacity: (AC) 6 kA(DC) 6 kA(230 V AC) 6 kA(400 V AC) 6 kA
- Rated ultimate short-circuit breaking capacity: (133 V AC) 20 kA(230 V AC) 10 kA(24 V DC) 20 kA(60 V DC) 10 kA
- Recommended screw driver: Pozidriv 2
- Screw terminal type: Failsafe Bi-directional Cylinder-lift Terminal
- Series: S200
- Temperature Rating: -25 to 55 deg C
- Tightening torque: 2.8 Nm
- Trip Range: 1.13 to 1.45 A, 3 to 5 A
- Trip Type: K-Curve/Electromechanic/Thermal Magnetic
- Tripping characteristic: K
- Voltage Rating: 277/480Y VAC, 60/110 VDC
- Wire Size: 18 to 4 AWG, 18 to 8 AWG
- Wire stripping length: 12.5 mm
