ACE MA 4525-S ADJUSTABLE SHOCK ABSORBER
Quick Overview
Manufactured By: ACE CONTROLS INC.
Manufacturer Part Number: MA 4525-S
IMS Product Code: 1909353
Packaging: Sold Individually
Description:

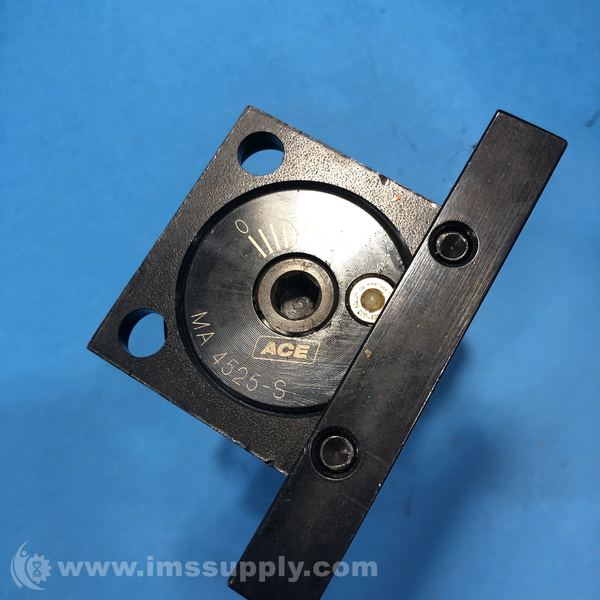

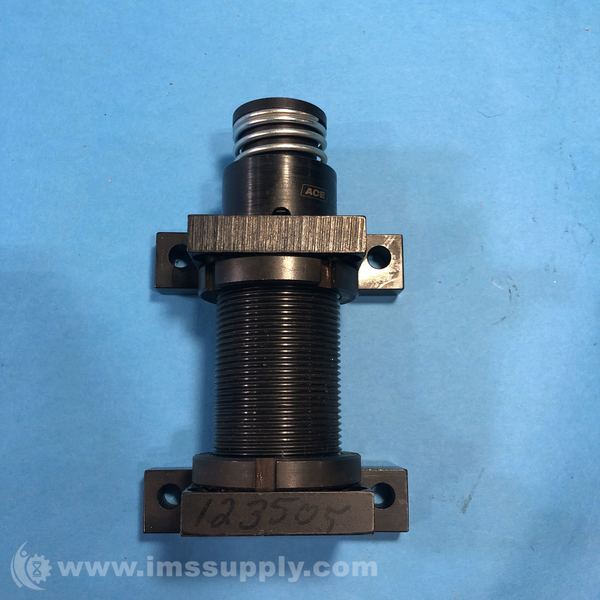

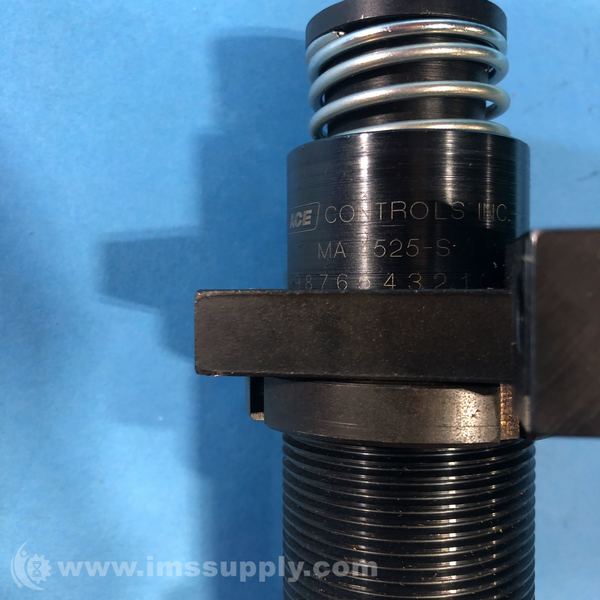

ACE MA 4525-S Adjustable Shock Absorber
Adjustable shock absorber with side foot mount, effective weight range of 95-22000 lbs, 0.91 in stroke, and internal accumulator style.
Specifications
- Type: Adjustable
- Mounting Options: Side Foot Mount
- Effective Weight Range (lbs): 95 - 22000
- Stroke: 0.91 in
- Button Options: Steel
- Accumulator Style: Internal
- Energy Capacity (lbs/Cycle): 3450
- Low Velocity: No
- Maximum Effective Weight (lbs): 22000
- Minimum Effective Weight (lbs): 95
- Mounting Thread: 1 3/4-12 UNF
- Return Method: Spring
- Rod Length: Standard
- Size: Medium
- Temperature Range: Standard
