ACE CONTROLS MC600H-B MINIATURE SHOCK ABSORBER
Quick Overview
Manufactured By: ACE CONTROLS INC.
Manufacturer Part Number: MC600H-B
IMS Product Code: 1803885
Packaging: Sold Individually
Description:

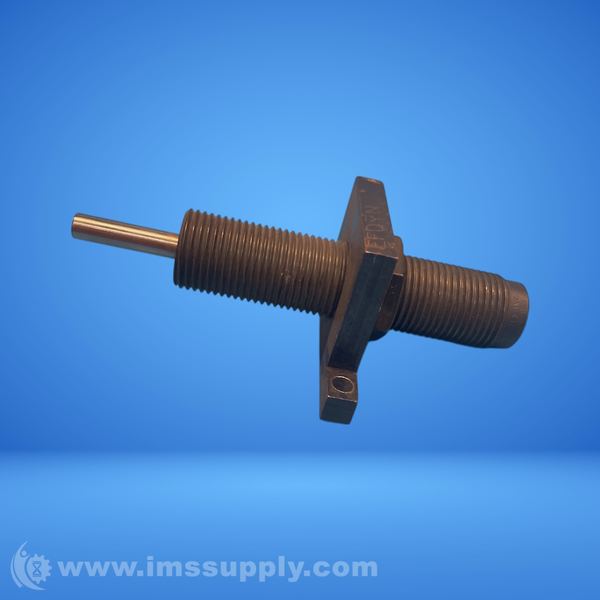

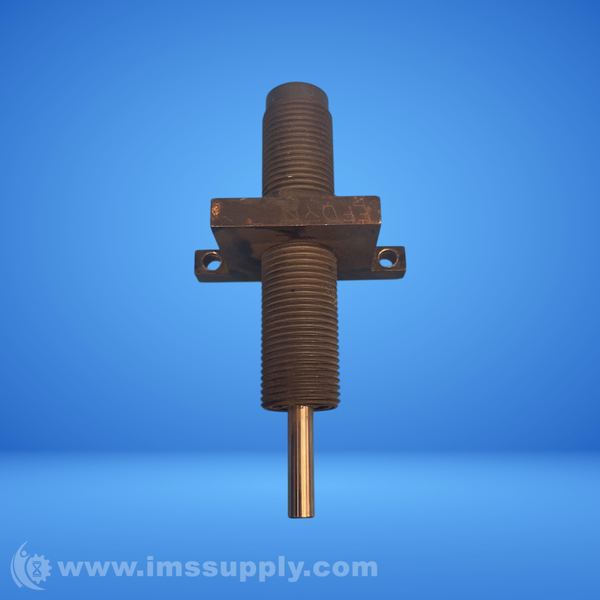

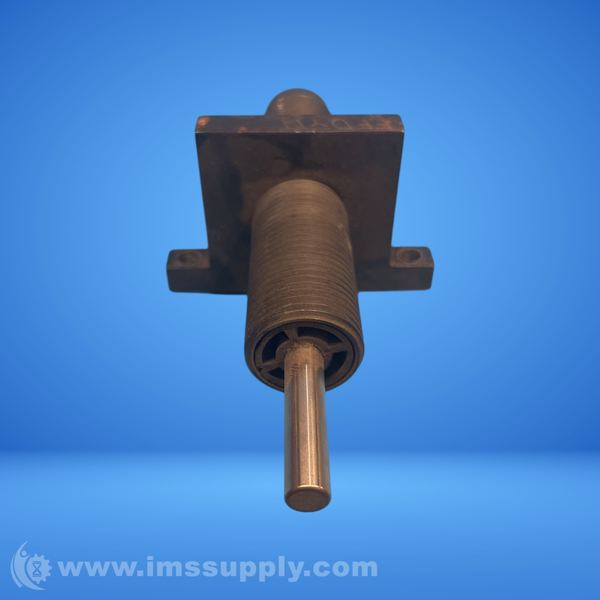

ACE Controls MC600H-B Miniature Shock Absorber
Self-compensating shock absorber with threaded body and internal accumulator style. Effective weight range is 250-2500 lbs with 1 inch stroke and 1200 lbs/cycle energy capacity.
Specifications
- Stroke: 1 in
- Energy Capacity (lbs/Cycle): 1200
- Effective Weight Range (lbs): 250 - 2500
- Mounting Options: Threaded Body
- Type: Self-compensating
- Button Options: Nylon
- Accumlator Style: Internal
- Return Method: Spring
- Mounting Thread: 1-12 UNF
- Material: Outer body, Accessories: Steel corrosion-resistant coating; Main bearing: Plastic; Piston rod: Hardened stainless steel; Rolling diaphragm: EPDM
- Damping medium: Oil, temperature stable
- Operating temperature range: 32 F to 150 F
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
