Manufactured By: ACE CONTROLS INC.
Manufacturer Part Number: SC925M-1
IMS Product Code: 1792617

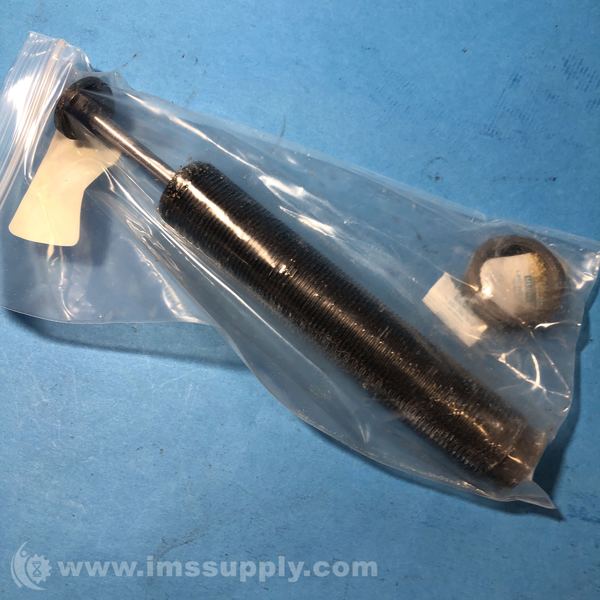

ACE Controls Inc. SC925M-1 Shock Absorber, Self-Compensating


  • Energy capacity: 975 in-lbs/cycle
  • Energy capacity: 800,000 in-lbs/h
  • Effective weight min. (self-compensating): 30 lbs
  • Effective weight max. (self-compensating): 200 lbs
  • Effective weight min. (soft contact): 50 lbs
  • Effective weight max. (soft contact): 160 lbs
  • Return Force min.: 2.4 lbs
  • Return Force max.: 7.4 lbs
  • Return Time: 0.4 s
  • Side Load Angle max.: 5 °
  • Impact velocity range: 0.5 ft/sec to 12 ft/sec.
  • Operating temperature range: 32 °F to 150 °F
  • Mounting: In any position
  • Positive stop: Integrated
  • Damping medium: Oil, temperature stable

A previously used, fully functional product that may have some signs of cosmetic wear.

Availability: 1 In Stock

Ships Tomorrow

Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of ACE Controls Inc.. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
