ACE MC 4575-3 SHOCK ABSORBER
Quick Overview
Brand: ACE
Part Number: MC 4575-3
IMS Product Code: 2150548
Packaging: Sold Individually
Description:

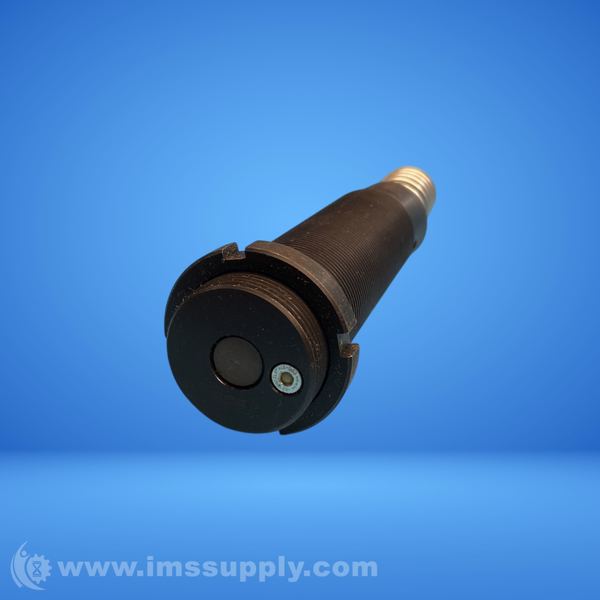

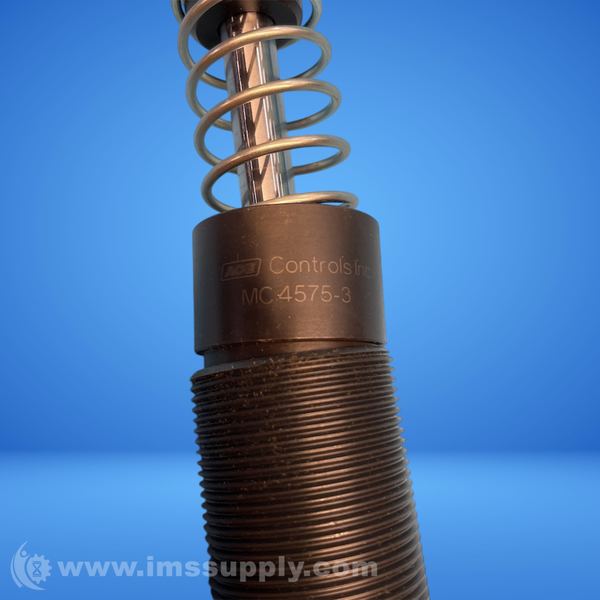

ACE MC 4575-3 Shock Absorber
Self-compensating industrial shock absorber with threaded body mounting and internal accumulator.
Specifications
- Stroke: 2.91 inch
- A max.: 9.69 inch
- L2: 5.72 inch
- M: 1-3/4-12 UNF
- d1: 1.65 inch
- d2: 1.38 inch
- Energy capacity: 10,000 in-lbs/cycle
- Energy capacity (h): 1,300,000 in-lbs/h
- Effective weight min.: 1,370 lbs
- Effective weight max.: 6,920 lbs
- Return Force max.: 40.3 lbs
- Return Force min.: 11.7 lbs
- Return Time: 0.11 s
- Side Load Angle max.: 2 degrees
- Impact velocity range: 0.5 ft/sec to 16.5 ft/sec
- Operating temperature range: 10 degrees F to 150 degrees F
- Mounting: In any position
- Material: Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel
- Damping medium: Automatic Transmission Fluid (ATF)
- Type: Self-compensating
- Mounting Options: Threaded Body
- Effective Weight Range (lbs): 1730 - 6920
- Button Options: Steel
- Accumulator Style: Internal
- Energy Capacity (lbs/Cycle): 9000
- Return Method: Spring

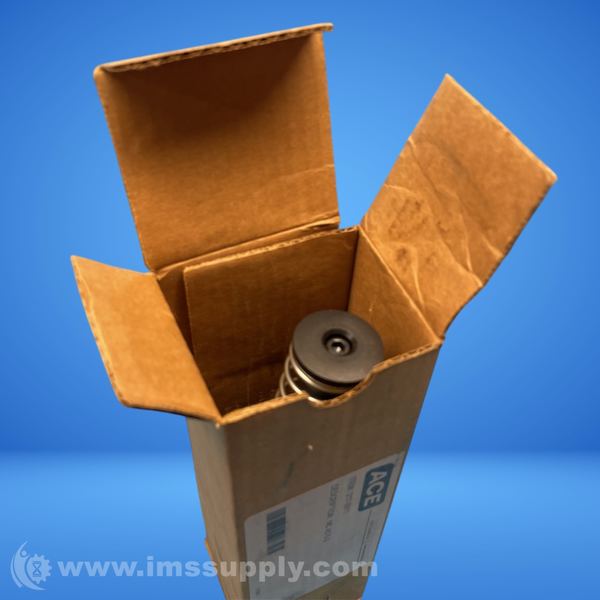

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, December 22, 2025
