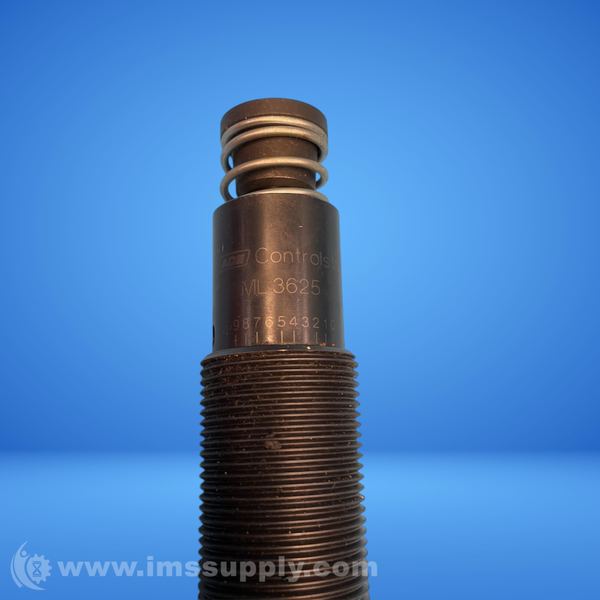

ACE ML3625 INDUSTRIAL SHOCK ABSORBER
Quick Overview
Brand: ACE
Part Number: ML 3625
IMS Product Code: 2150582
Packaging: Sold Individually
Description:
Ace ML3625 Industrial Shock Absorber
Industrial shock absorber with high energy absorption and progressive adjustment. Adjustable with integrated positive stop.
Specifications
- Stroke: 0.91 inch
- A max.: 5.44 inch
- L2: 3.25 inch
- M: 1-3/8-12 UNF inch
- d1: 1.15 inch
- d2: 1.00 inch
- Energy capacity: 1,505 in-lbs/cycle
- Energy capacity (high): 730,000 in-lbs/h
- Energy capacity with oil recirculation: 1,570,000 in-lbs/h
- Energy capacity with air/oil tank: 1,170,000 in-lbs/h
- Effective weight min.: 7 lbs
- Effective weight max.: 24 lbs
- Return Force max.: 19.8 lbs
- Return Force min.: 10.3 lbs
- Return Time: 0.03 s
- Side Load Angle max.: 4 degrees
- Impact velocity range: MA: 0.5 ft/sec to 16.5 ft/sec. ML: 0.06 ft/sec to 1.5 ft/sec
- Operating temperature range: 10 degrees F to 150 degrees F
- Mounting: In any position
- Positive stop: Integrated
- Adjustment: Hard impact at the start of stroke, adjust the ring towards 9. Hard impact at the end of stroke, adjust the ring towards 0.
- Material: Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel; Accessories: Steel with black oxide finish or nitride hardened
- Damping medium: Automatic Transmission Fluid (ATF)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
