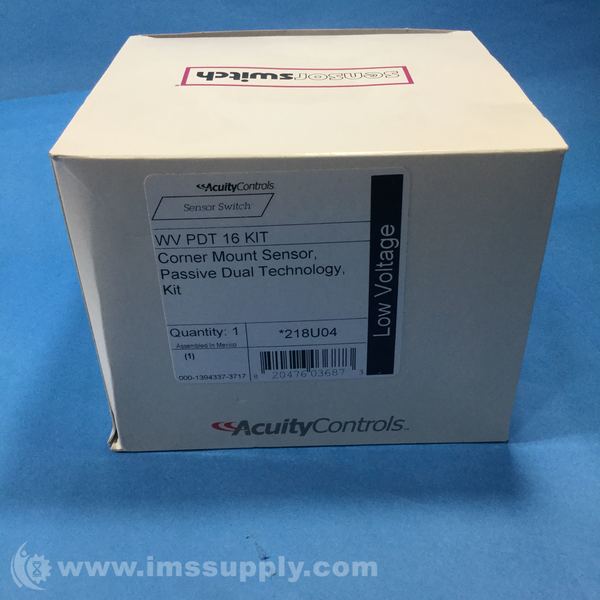

ACUITY CONTROLS WV PDT 16 KIT CORNER MOUNT SENSOR
Quick Overview
Manufactured By: ACUITY CONTROLS
Manufacturer Part Number: WV PDT 16 KIT
IMS Product Code: 1838273
Packaging: Sold Individually
Description:

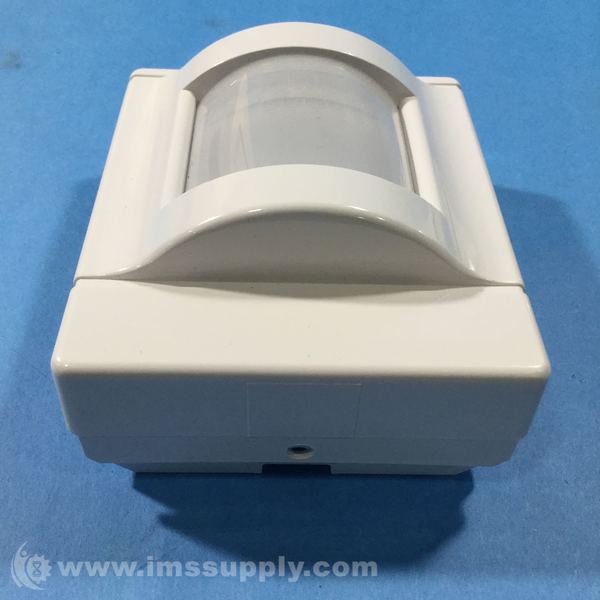

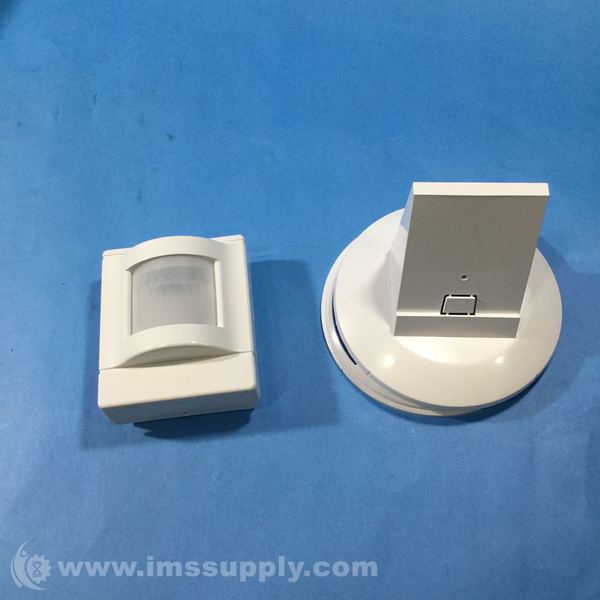

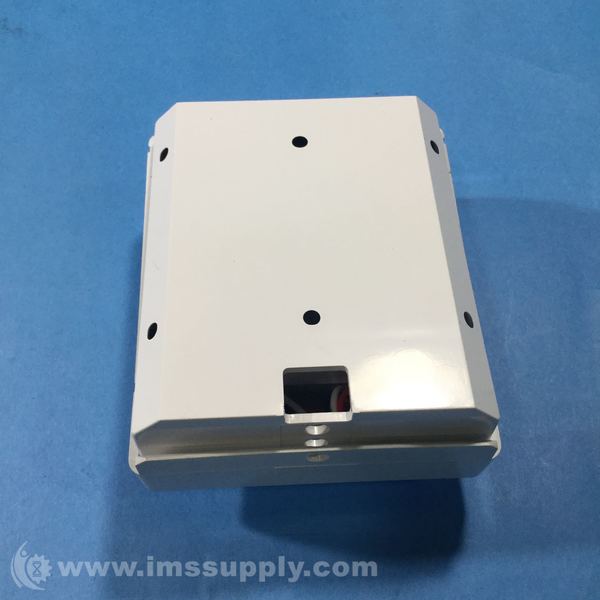

Acuity Controls WV PDT 16 KIT Corner Mount Sensor
Low voltage, dual technology wide view occupancy sensor
Specifications
- Color: White
- Supply Voltage: 12-24 VAC @ 0.1 VA, 24 VDC, @ 4mA (16mA w/ relay option)
- Sensing Type: Infrared
- Mount: Ceiling
- Relay Output: WV Motion initiated (Int.) 24VDC output @200mA
- Technology: Single or dual technology sensors (per order)
- Occupied Mode (Occ): Occ.-Auto ON w/Either technologies w/TD OFF
- Approximate Coverage Pattern: Corner @9' /40-70' Semi circle (120° wedge)
- OFF Delay Time (TD): 5 settings from 0 to 20 minutes
- Indication: Green LED for set-up

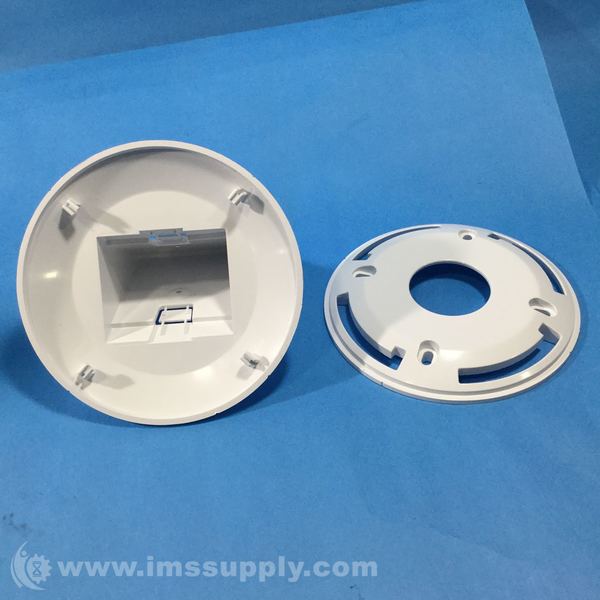

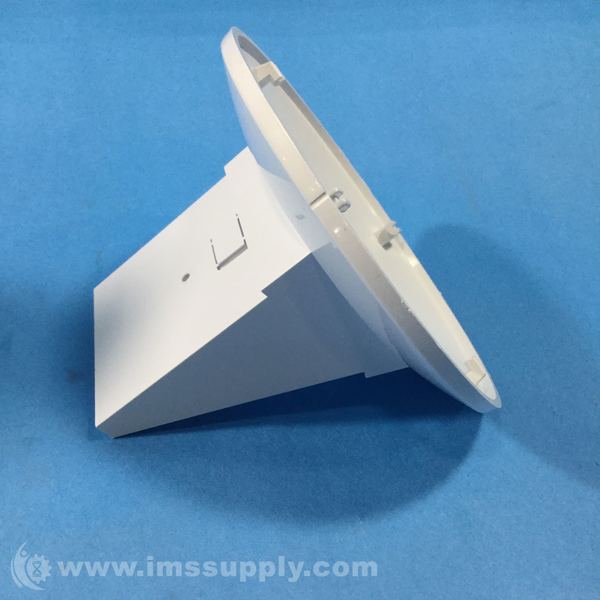

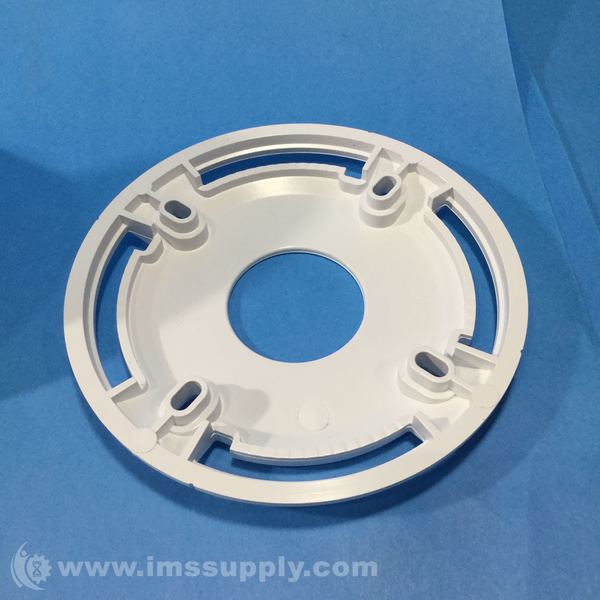

- Mounting: Direct Wall/Corner, (Ceiling w/WV-BR braket), Box Mount (Octagonal or single gang)
- Operating Temperature: 14 to 160 degrees F (-10 to 71 degrees C)
- Operating Humidity: 20 to 90% non-condensing
- Wiring: 3 or 7 wire Pig tails (see wiring)
- Enclosure Rating: NEMA 1
- Dimensions: 3.6"W x 3.0"H x 1.75"D (9.14 x 7.62 x 4.45 cm)
- Weight: 0.32 lb (0.15 Kg)
- Approvals: UL File #E167435, RoHs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
