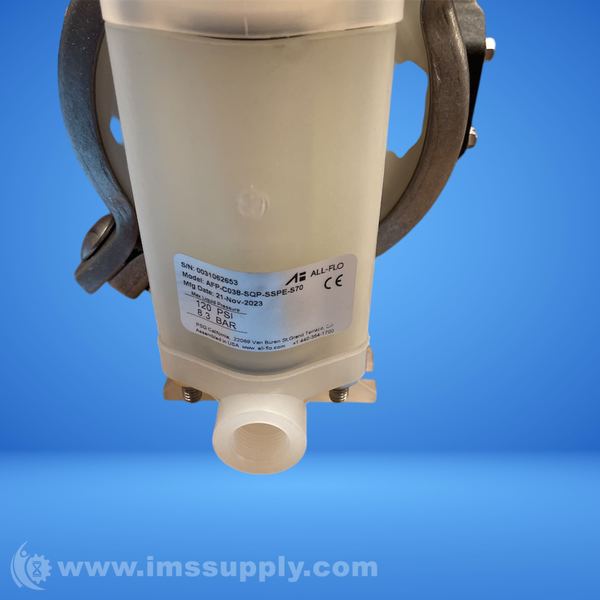

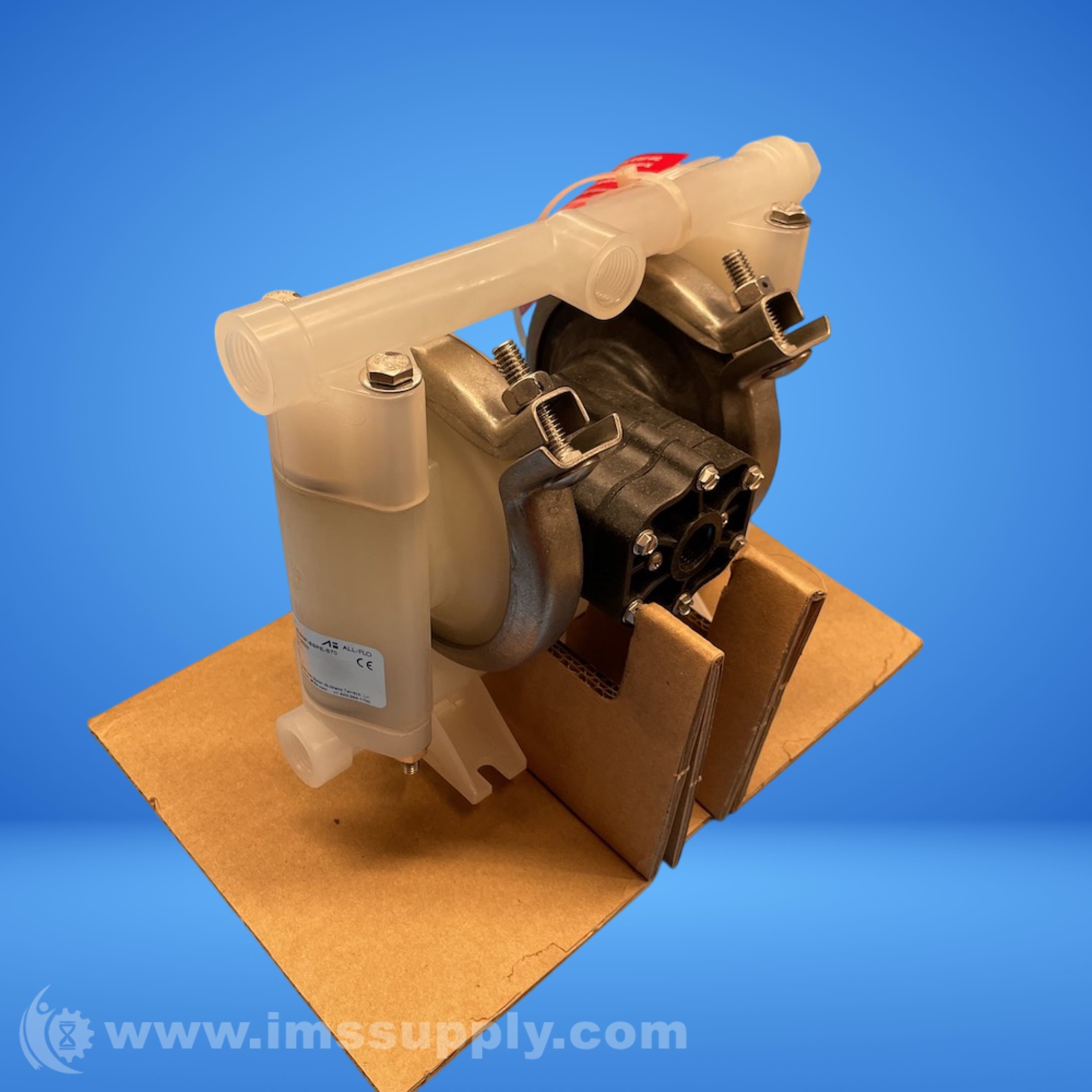

ALL-FLO AFP-C038-SQP-SSPE-S70 DIAPHRAGM PUMP
Quick Overview
Manufactured By: ALL-FLO PUMP CO.
Manufacturer Part Number: AFP-C038-SQP-SSPE-S70
IMS Product Code: 2146598
Packaging: Sold Individually
Description:
All-Flo AFP-C038-SQP-SSPE-S70 Diaphragm Pump
Air-operated double diaphragm pump with 3/8" NPT/BSP connections, polypropylene construction, and santoprene diaphragms and balls
Specifications
- Air Inlet Size: 1/4" FNPT
- Connection Type: NPT (BSP)
- Diaphragm Material: Santoprene (TPE Curve)
- Fluid Chamber Material: Polypropylene
- GPM: 9.0
- Inlet Diameter: 0.375"
- Inlet Size: 0.375"
- Max Air Pressure: 120 PSI
- Max Flow: 9.00 GPM
- Max Solids Handling: 0.625"
- Max Suction Lift (Dry): 10 Feet
- Max Suction Lift (Wet): 26 Feet
- O-Ring Material: EPDM
- Outlet Diameter: 0.375"
- Power: Air
- Pump Style: Diaphragm Pump
- Pump Type: Double Diaphragm Pump
- Series: C Series
- Size: 3/8"
- Style: Diaphragm Pump
- Type: Double Diaphragm Pump
- Valve Ball Material: Santoprene
- Valve Seat Material: Polypropylene
- Weight: 5 Lbs.
