ALLEN BRADLEY 100-C09*10 3-POLE AC CONTACTOR
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 100-C09*10
IMS Product Code: 1735148
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:

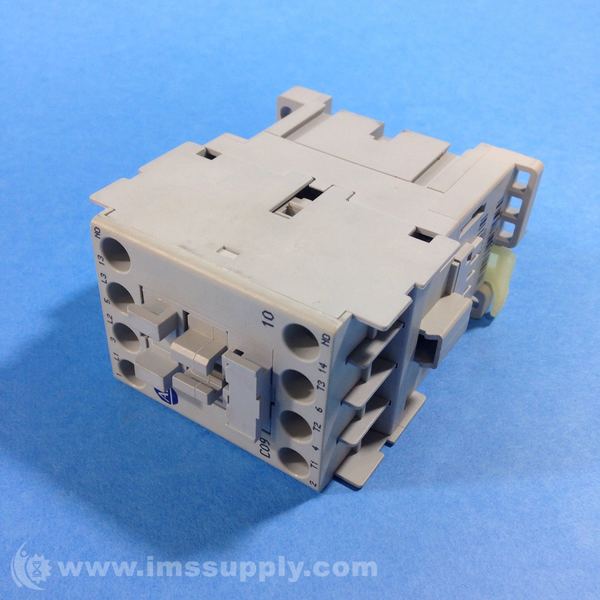

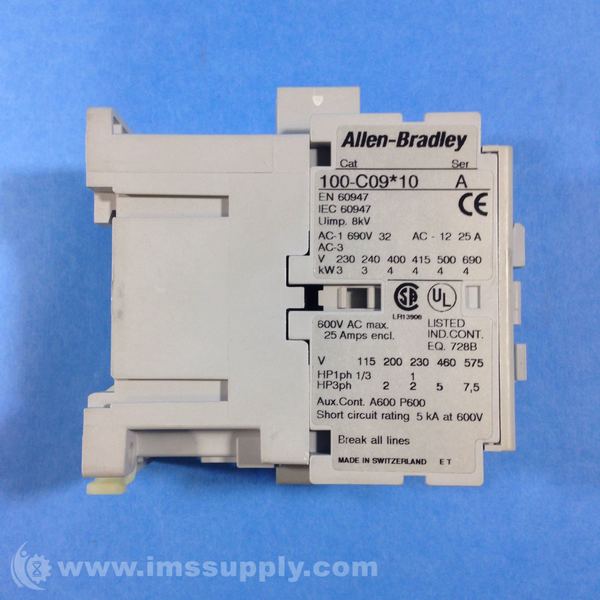

Allen Bradley 100-C09*10 3-Pole AC Contactor
3-phase IEC rated contactor for electric motor control, rated 2 HP at 230V and 5 HP at 460V, with 1NO auxiliary contact.
Specifications
- AC3 Amp Rating: 9
- AC1 Amp Rating: 32
- Three Phase HP Rating at 230V: 2
- Three Phase HP Rating at 460V: 5
- Auxiliary Contacts NO: 1
- Auxiliary Contacts NC: 0
- Rated Current (AC-3): 9A
- Poles: 3
- Auxiliary Contacts: 1 NO
- Coil Voltages Available: 24V, 120V, 240V AC
- Mounting: DIN Rail or Panel Mount
- Certifications: UL, CSA, IEC
- AMP Rating: 9 AMPS AC-3 / 32 AMP AC-1
- H.P. Rating @ 230 Volt 3 Phase: 2 H.P.
- H.P. Rating @ 460 Volt 3 Phase: 5 H.P.
- Base Mounted Auxiliary Contact: 1 normally open
- Termination: Screw Terminals
- Mounting style: 35mm DIN Rail or base screw mounting
- Country of Origin: Switzerland
- voltage_rating: 600 Volts AC
- rated_current: 25 Amps
- rated_coil_voltage: 120 Volts
- Type: Motor Starter
- Number of Poles: 3
- Ampere Rating: 25 Amp
- Voltage Rating: 600VAC
- Series: Ser. A
- Voltage: 690V
- Current: 32A
- Phase: 3PH
- Insulation Voltage: 6kV
Used (Special):
Allen Bradley 193-EA1DB and 100-F attached.
