ALLEN BRADLEY 1398-DDM-030X SERVO DRIVE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1398-DDM-030X
IMS Product Code: 144711
Packaging: Sold Individually
Description:

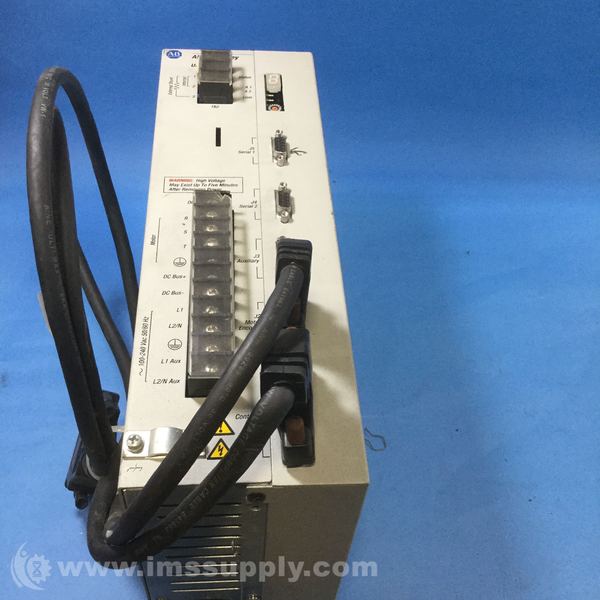

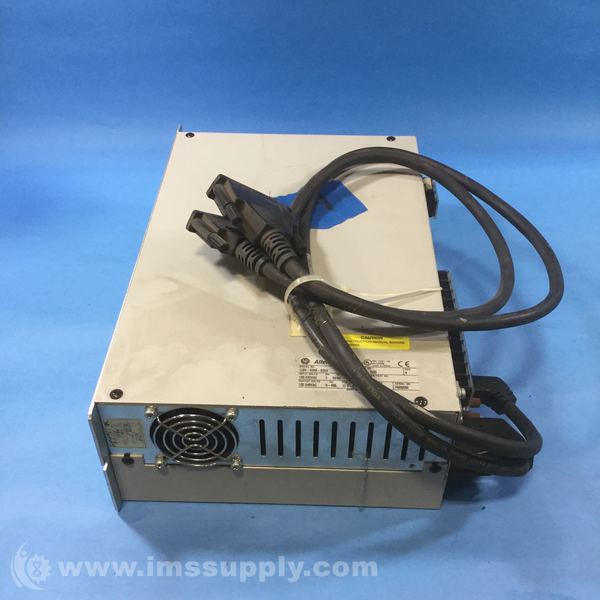

Allen Bradley 1398-DDM-030X Servo Drive
The Allen-Bradley 1398-DDM-030X is a digital servo drive from the ULTRA 200 series. It operates on a single-phase voltage source with a continuous output power rating of 3000 Watts. It can be connected to an Allen-Bradley brushless servo motor and operate at a continuous torque rating of 3 to 450 pounds on an inch and at a peak torque rating of 9 to 1100 pounds on an inch. It features a Motorola 68HC16 microcontroller, 512 KB user parameter storage, and 128 KB flash memory. The drive is certified CE and UL, with a NEMA 12 rating.
Specifications
- Continuous Output Power: 3000 Watts
- Voltage Range: 100 to 240 Volts AC
- Frequency: 50 to 60 Hertz
- Microcontroller: Motorola 68HC16
- Memory: 512 KB user parameter storage, 128 KB flash memory
- NEMA Rating: NEMA 12
- Certifications: CE, UL
- Weight: 6.48 kilograms
- Operating Temperature Range: 0 to 50 degrees Celsius
- Dimensions: 360.6 x 104.1 x 226.8 mm
New - Missing Box (Special):
Has no cable attachments
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 47 minutes.
