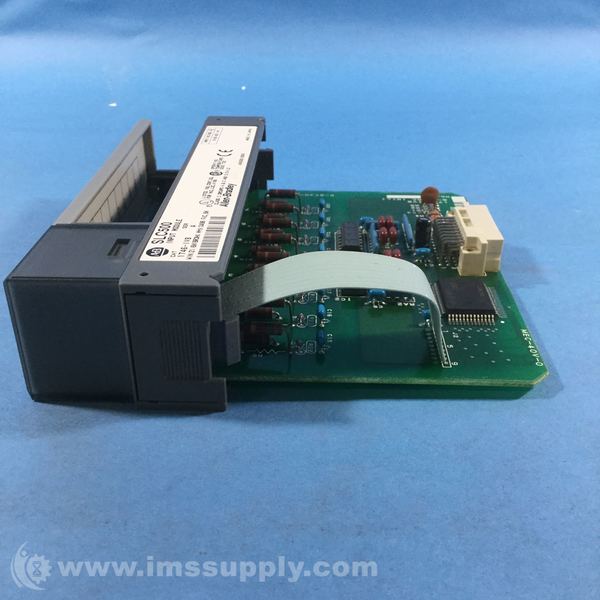

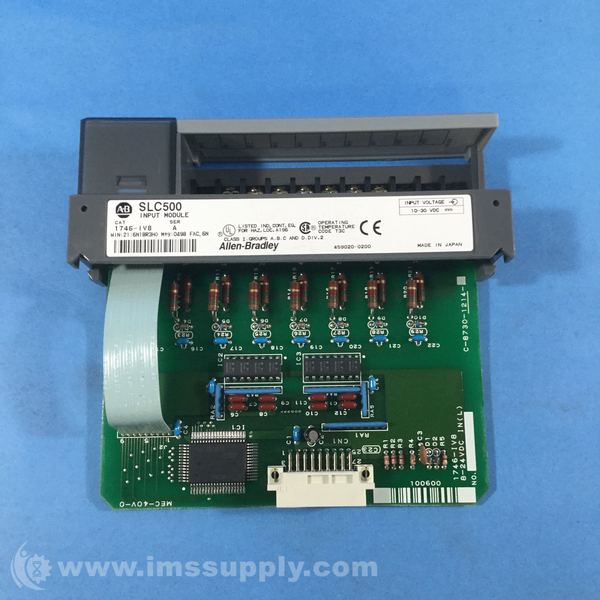

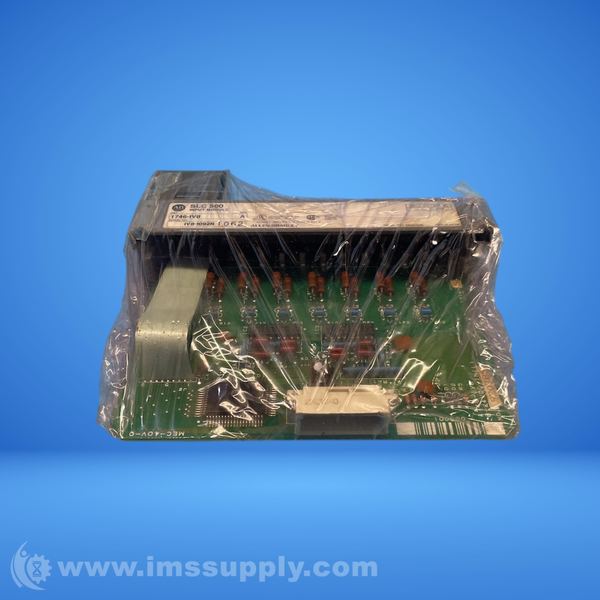

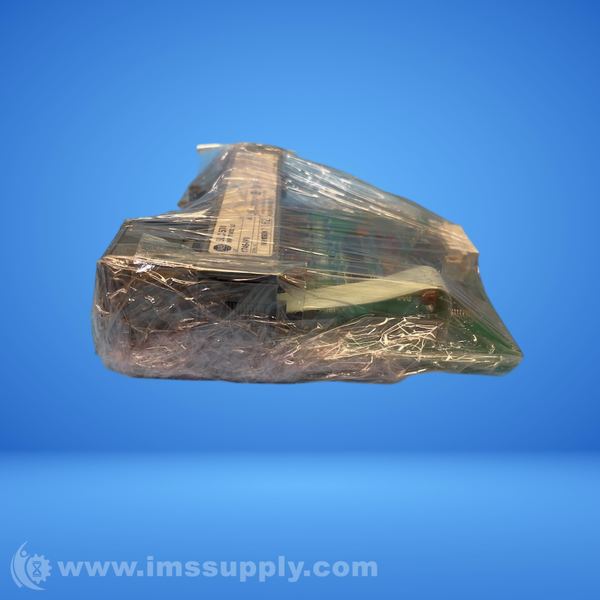

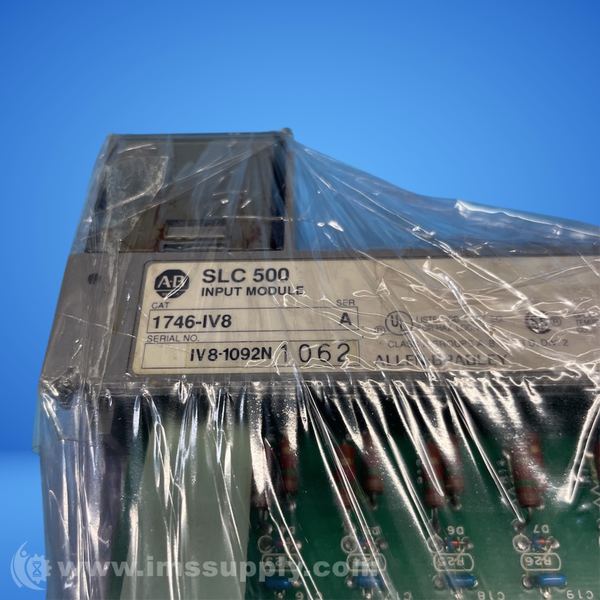

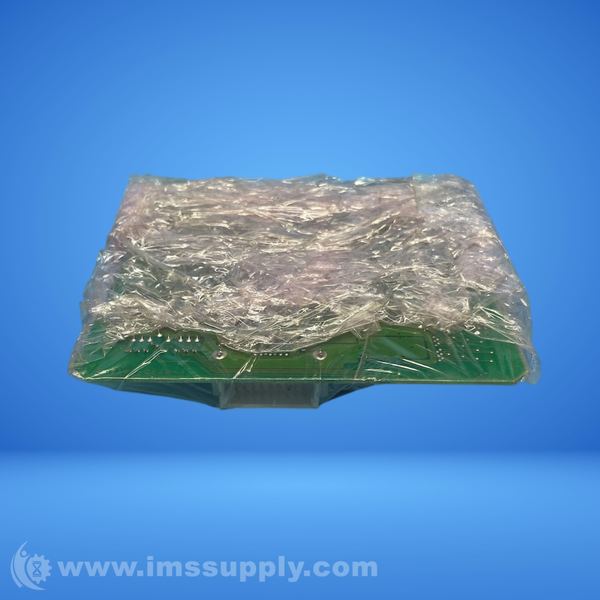

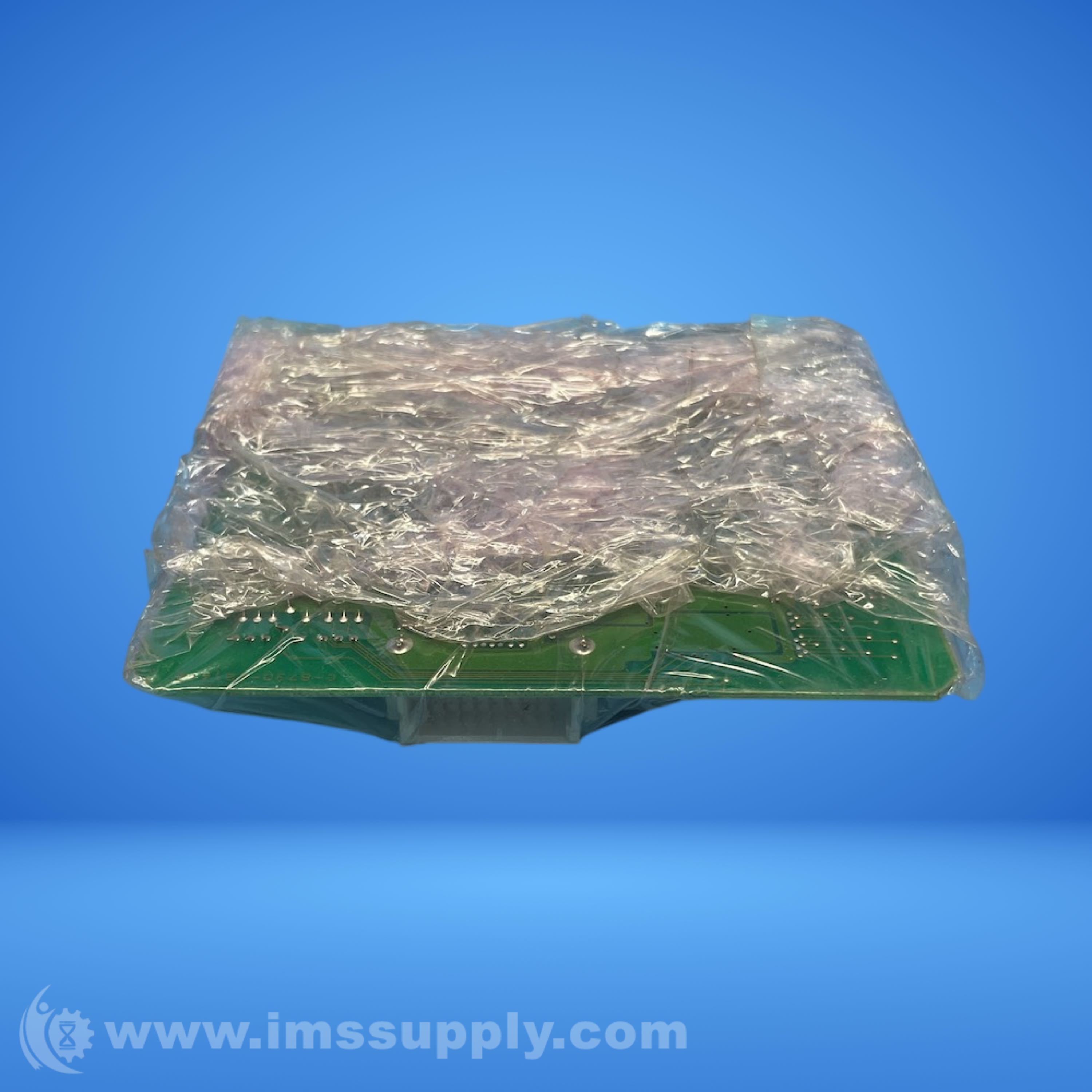

ALLEN BRADLEY 1746-IV8 8 POINT 24V DC INPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1746-IV8
IMS Product Code: 147767
Packaging: Sold Individually
Description:
Allen Bradley 1746-IV8 8 Point 24V DC Input Module
8 point 24V DC sourcing input module for SLC 500 series. 10-30V DC input voltage range, 8mA nominal input current at 24V DC. 50mA backplane current at 5V DC.
Specifications
- input voltage range: 10-30V DC
- nominal input current at 24V DC: 8mA
- backplane current at 5V DC: 50mA
- number of inputs: 8
- signal delay ON: 8ms max
- signal delay OFF: 8ms max
- maximum off-state input voltage: 5V DC
- maximum off-state input current: 1mA
- weight: 0.17 kg (0.38 lbs)
- operating temperature: 0-60 degrees C
- storage temperature: -40-85 degrees C
- relative humidity: 5-95% without condensation
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 35 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 35 minutes.
