ALLEN BRADLEY 1746-OB16 SLC 500 DC OUTPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1746-OB16
IMS Product Code: 147785
Variation: Unspecified
Unspecified
Revision: B
Series: D
Packaging: Sold Individually
Description:

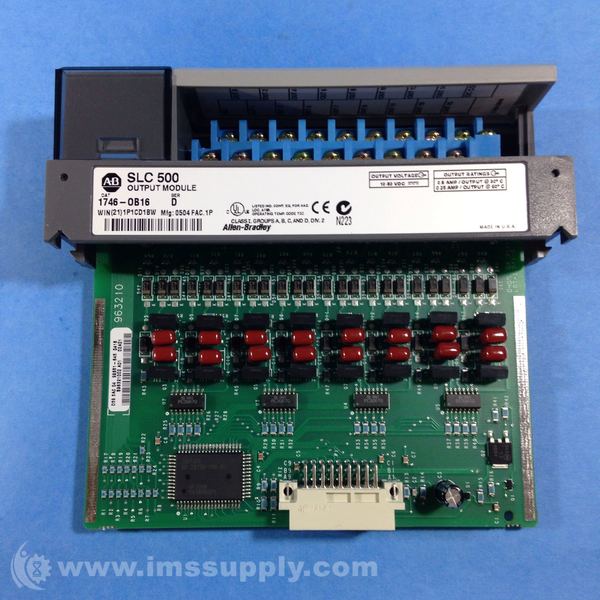

Allen Bradley 1746-OB16 SLC 500 DC Output Module
The Allen-Bradley 1746-OB16 is a SLC 500 Current Sourcing DC Output Module with 16 outputs, operating between 10-50VDC. It provides a signal ON delay of 0.1ms and OFF delay of 1ms on maximum resistive load.
Specifications
- Number Of Channels: 16
- Output Voltage Range: 10-50VDC
- Signal Voltage: 24VDC
- Operating Voltage Range: 10 to 50VDC
- Output Type: Current Sourcing DC
- Backplane Current at 5V DC: 0.280A
- Backplane Current at 24V DC: 0.0A
- Signal ON Delay: 0.1 ms
- Signal OFF Delay: 1.0 ms
- Maximum Off-State Leakage Current: 1mA
- Continuous Current per Point @ 30�C: 0.50 A
- Continuous Current per Point @ 60�C: 0.25 A
- Surge Current per Point: 4.0 A for 10 ms
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 8 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships today if ordered in the next 14 hours and 8 minutes.
Used (Special):
Terminal cover only.
Availability: 8 In Stock
Ships today if ordered in the next 14 hours and 8 minutes.
