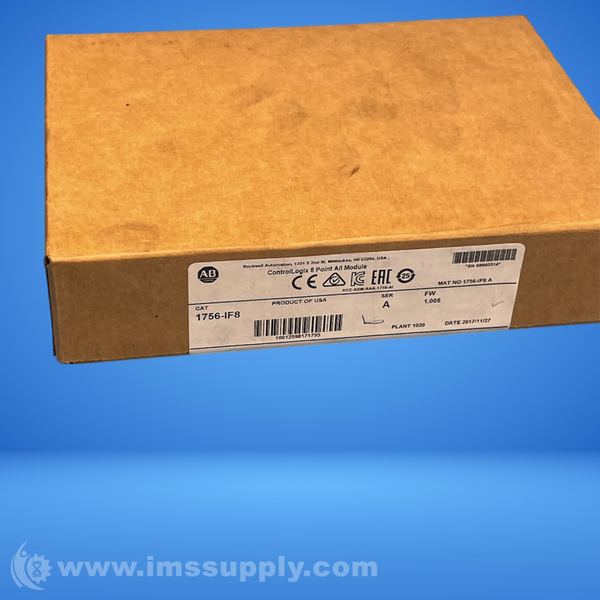

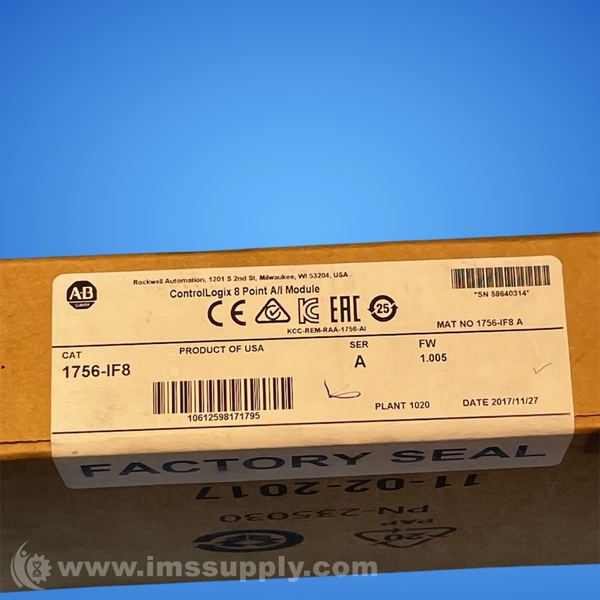

ALLEN BRADLEY 1756-IF8 ANALOG INPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1756-IF8
IMS Product Code: 147938
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:
Allen Bradley 1756-IF8 Analog Input Module
The Allen-Bradley 1756-IF8 is an analog input module from the ControlLogix product family. This module features eight single-ended or differential input channels, configurable for various voltage and current signals.
Specifications
- Input Range: +/-10V, 0 to 10V, 0 to 5V, 0 to 20mA
- Resolution: 15 bits for +/-10VDC, 16 bits for other signal types
- Current Draw: 150mA @ 5.1V, 40mA @ 24V
- Total Backplane Power: 1.73W
- Input Impedance: Voltage: 10 MO or higher, Current: 249O
- Operating Temperature: 0...60 degrees C (32...140 degrees F)
- Mounting: Chassis
- Isolation: None between channels (Single Ended)
- Conversion: Sigma-Delta
- Normal Mode Rejection: 80 dB
- Common Mode Rejection: 100 dB
