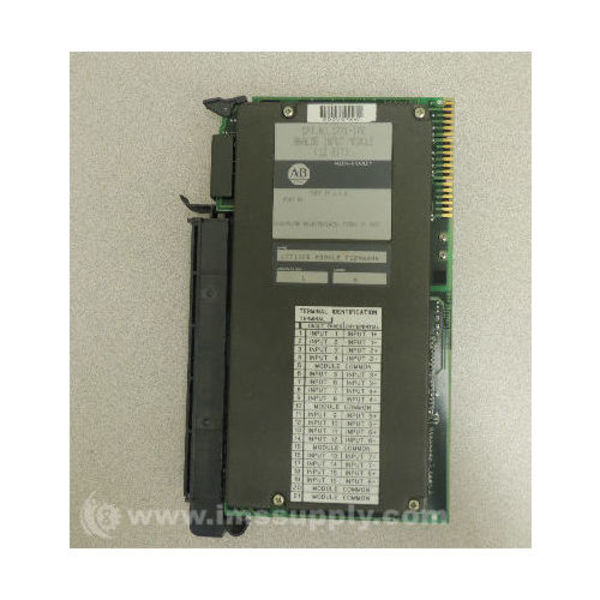

ALLEN BRADLEY 1771-IFE ANALOG INPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1771-IFE
IMS Product Code: 148309
Variation: Unspecified
Unspecified
Series: A
Series: C
Packaging: Sold Individually
Description:
Allen Bradley 1771-IFE Analog Input Module
12-bit analog input module for programmable logic controllers, featuring 16 single-ended or 8 differential inputs, various voltage and current ranges, and high accuracy.
Specifications
- Inputs per module: 16 single-ended; 8 differential low level
- Module location: 1771 I/O rack - 1 slot
- Input voltage ranges (nominal): +1 to +5V dc, 0 to 5V dc, -5 to +5V dc, -10 to +10V dc, 0 to +10V dc
- Input current ranges (nominal): +4 to +20mA, 0 to +20mA, -20 to +20mA
- Resolution: 12-bit binary, 12 bits plus sign on bipolar ranges
- Accuracy: 0.1% of full scale range @ 25 degrees C
- Linearity: +1 LSB
- Repeatability: +1 LSB
- Isolation Voltage: +1500V, (transient)
- Input overvoltage protection: 200V (voltage mode), 8V (current mode)
- Input overcurrent protection (current ranges): 30mA
- Common mode voltage: +14.25 Volts
- Input impedance: 100 Megohms for voltage ranges; 250 ohms for current ranges
- Common mode rejection: 80 db, DC-120 Hz
- Current Requirements: 0.75A @ +5V from I/O chassis backplane
- Power Dissipation: 3.75 Watts (maximum)
- Thermal Dissipation: 12.8 BTU/hr (maximum)
- Operational temperature: 0 to 60 degrees C (32 to 140 degrees F)
- Storage temperature: -40 to 85 degrees C (-40 to 185 degrees F)
- Relative humidity: 5 to 95% (without condensation)
- Wiring: 14 gauge stranded (max.); 3/64 inch insulation (max.)
- Field Wiring Arm Screw Torque: 7-9 inch pounds
