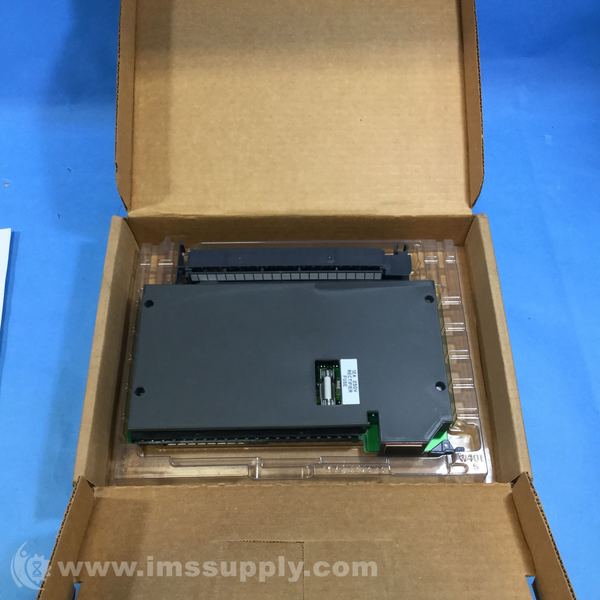

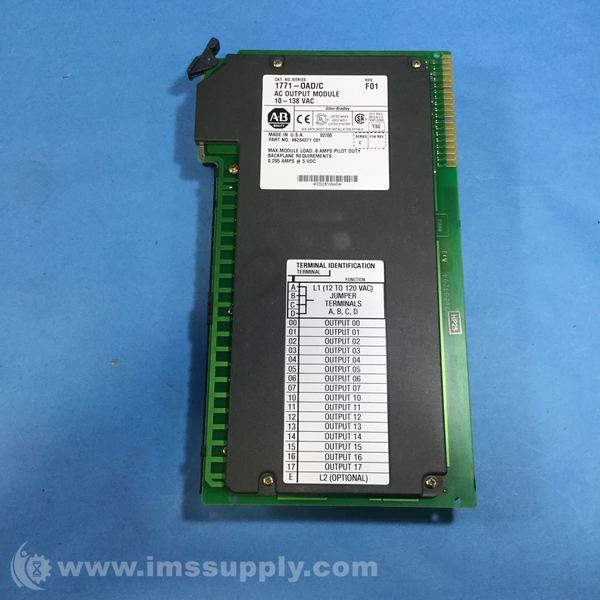

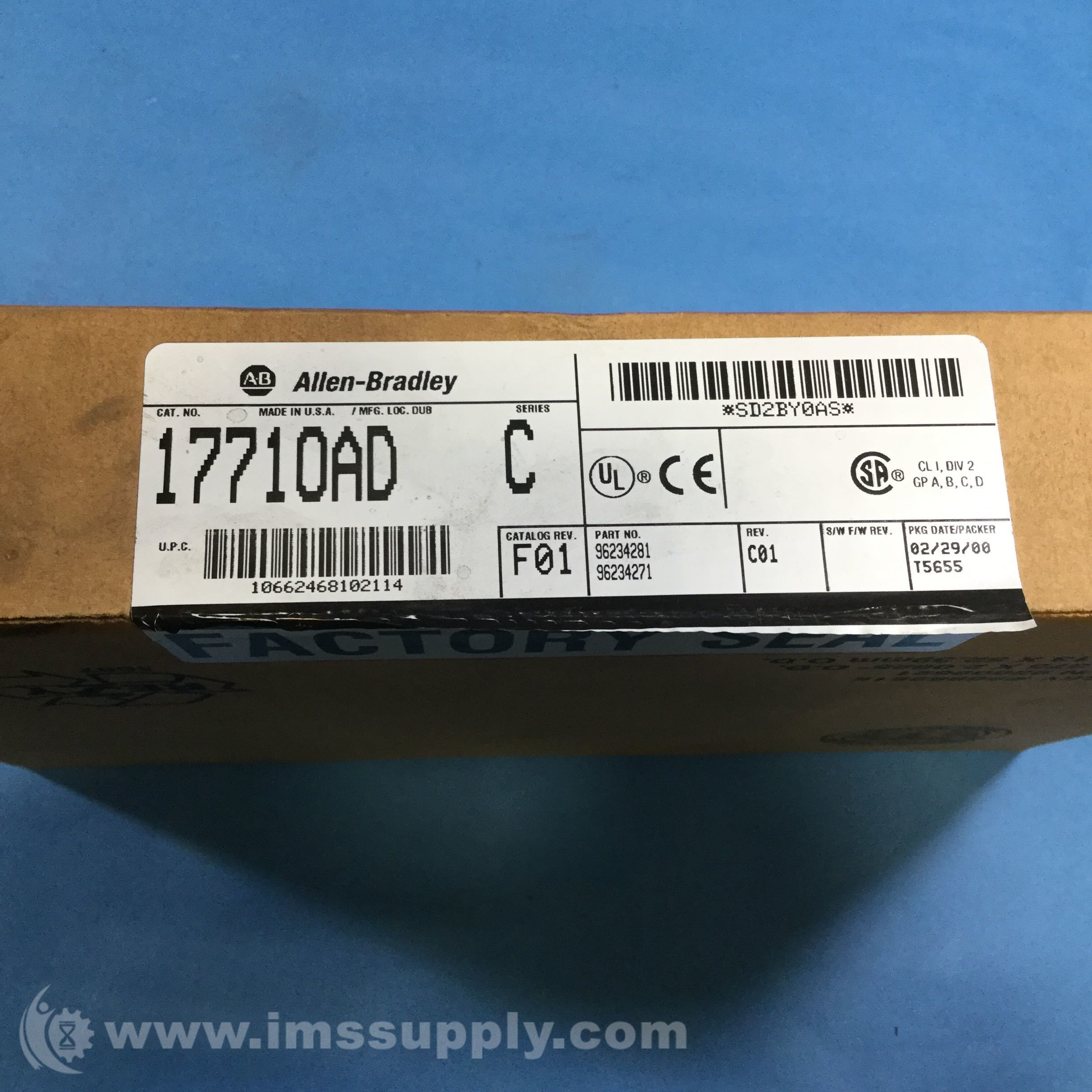

ALLEN BRADLEY 1771-OAD AC OUTPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1771-OAD
IMS Product Code: 148381
Variation: Unspecified
Unspecified
Series: A
Series: B
Series: C
Packaging: Sold Individually
Description:
Allen Bradley 1771-OAD AC Output Module
PLC-5 digital AC output module with 16 outputs, 12-120V AC, rack-mountable
Specifications
- Number of Outputs: 16
- Output Voltage Category: 12-120V AC
- Output Voltage Range: 10-138 Volts
- Frequency: 47-63 Hertz
- Backplane Current: 0.7 AMP AT 5 VDC
- Output Current per Output: 2 Amps
- Output Current per Module: 8 Amps
- Maximum Surge Current: 25 Amps for 100 ms
- On-State Maximum Leakage Current: 3.0 mA at 138 Volts AC
- On-State Voltage Drop: 1.5 Volts at <50 mA, 5.8 Volts at >50 mA
- Power Dissipation: 1.5W-13W
- Thermal Dissipation: 5.13-48 BTU/hour
- Mounting Style: Rack Mount
- Terminal Style: Screw
Refurbished:
A refurbished product that has been restored to working order.
Availability: 7 In Stock
Ships today if ordered in the next 1 hours and 20 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 6 In Stock
Ships today if ordered in the next 2 hours and 20 minutes.
