ALLEN BRADLEY 1771-OGD TTL OUTPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1771-OGD
IMS Product Code: 148402
Packaging: Sold Individually
Description:

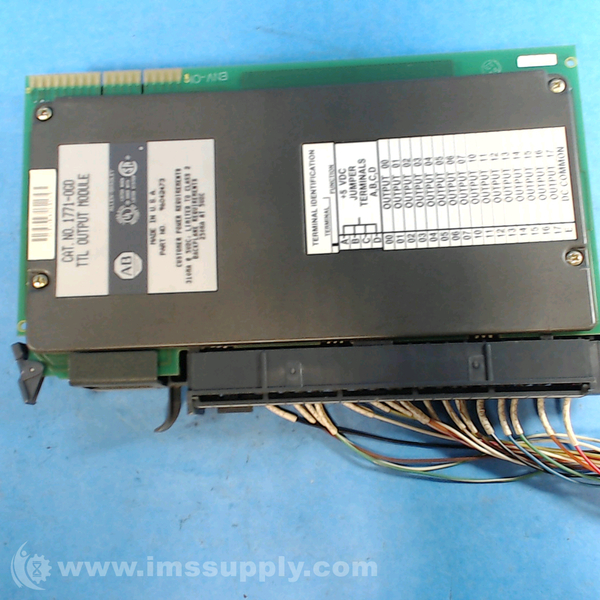

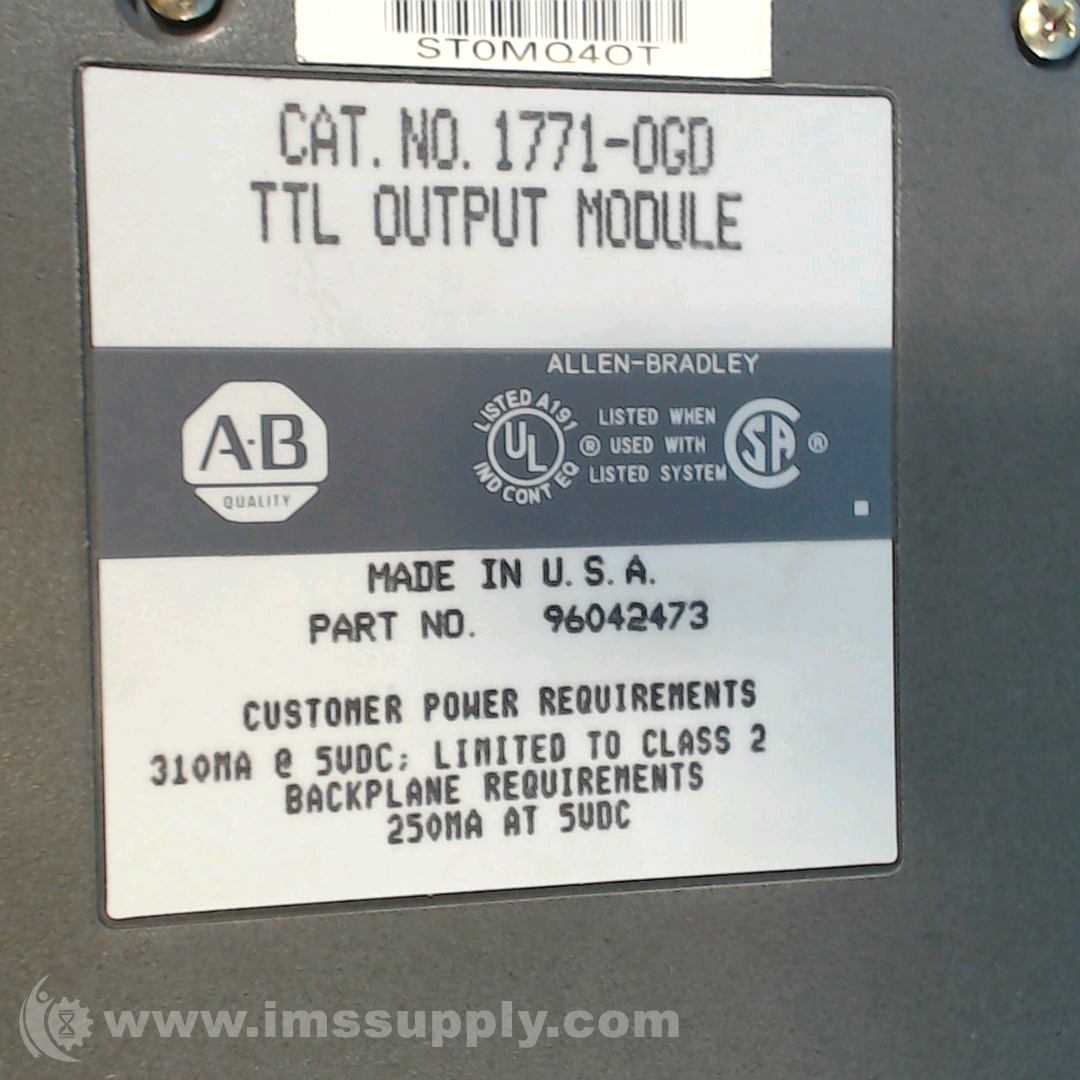

Allen Bradley 1771-OGD TTL Output Module
The Allen-Bradley 1771-OGD is a PLC-5 digital DC TTL output module designed for use within the 1771 Universal I/O system. It provides 16 TTL outputs for controlling logic-level devices and requires both the chassis backplane supply and an external 5 VDC source for operation.
Specifications
- Module Type: Digital DC Output Module
- Number of Outputs: 16
- Voltage Category: 5 Volts DC, TTL
- DC Operating Voltage: 5.0-5.3 Volts
- Backplane Current: 230 Miliamperes
- Max Continuous Current Per Output: 0.20 Amperes (Sink) and 0.001 Amperes (Source)
- Wiring Arm: 1771-WH
- Mounting: Rack Mountable
- Series: A and B
- Weight: 1.85 lbs
- Coating: Conformal Coat
- Typical AC Signal Delay (Off): 45 (+/- 15) ms
- Typical DC Signal Delay (Off): 50 ms
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships on Monday, March 9, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
