ALLEN BRADLEY 1794-IF4I FLEX 4 POINT ANALOG INPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1794-IF4I
IMS Product Code: 148919
Packaging: Sold Individually
Description:
Allen Bradley 1794-IF4I Flex 4 Point Analog Input Module
The Allen-Bradley 1794-IF4I is a Flex IO analog input module. This module features Four (4) Voltage / Current isolated analog input channels. It supports analog input current signals such as 4-20 mA (user configurable), 0-20 mA (user configurable) ±20 mA; Voltage signals such as ±10V (user configurable) 0-10V (user configurable) ±5V (user configurable) and 0-5V (user configurable). It is compatible with a variety of terminal base units such as 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, and 1794-TBN. It is compatible with any 1794 Flex IO adapters to implement distributed I/O application.
Specifications
- Conversion Type: Sigma Delta
- No. of inputs: Four (4); isolated
- Input signal type: 0 to 20mA, 4 to 20 mA, +/-20mA, +/- 10VDC and 0 to 10 VDC, +/-5VDC and 0 to 5 VDC
- Input resolution: 16 bits – unipolar; 15 bits plus sign – bipolar; Current: 0.156 mV/cnt unipolar; Voltage:0.313 mV/cnt bipolar 0.320 µA/cnt unipolar; 0.640 µA/cnt bipolar
- Terminal base: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794- TB3TS, and 1794-TBN
- External DC supply, nom: 24V DC
- External DC supply range: 19.0…31.2V DC (includes 5% AC ripple)
- Mounting: DIN Rail
- Operating Temperature: 0 to 55 C (32 to 131 F)
- Storage Temperature: –40…85 °C (–40…185 °F)
- Vibration: 5g @ 10 to 500 Hz
- Operating Shock: 30 g
- Thermal dissipation, max: 6.8 BTU/hr @ 31.2V DC
- Power dissipation, max: 2.0 W @ 31.2V DC
- Resolution: 16 bits
- FlexBus Current: 50mA
- Isolation Voltage: 120 Volts Continuous
- Weight: 0.12 kgs

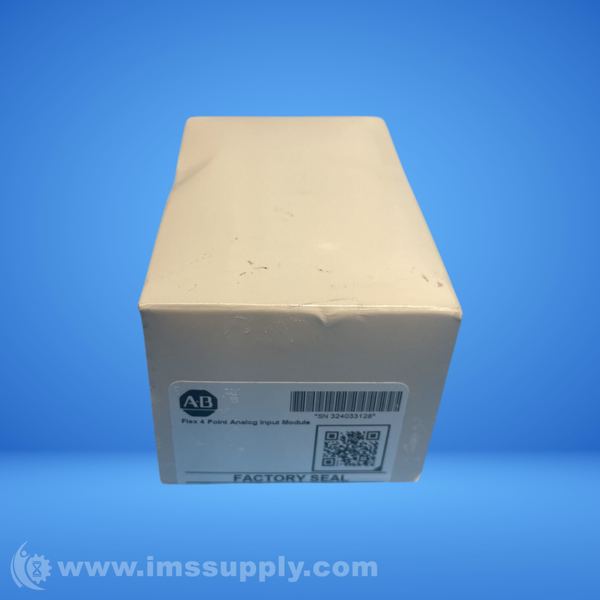

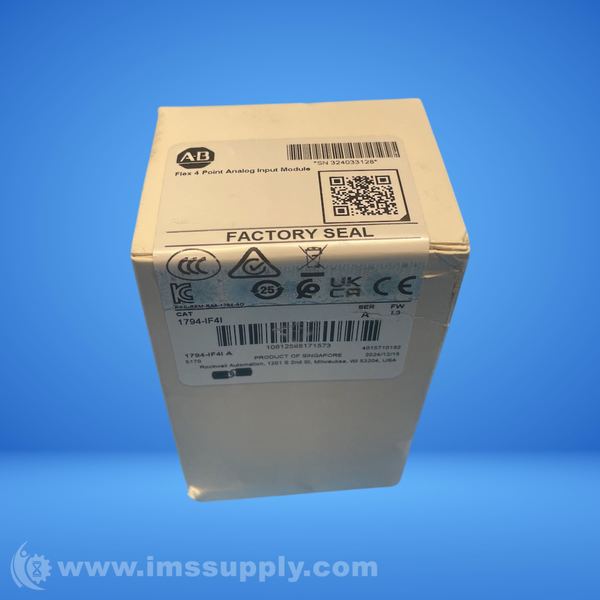

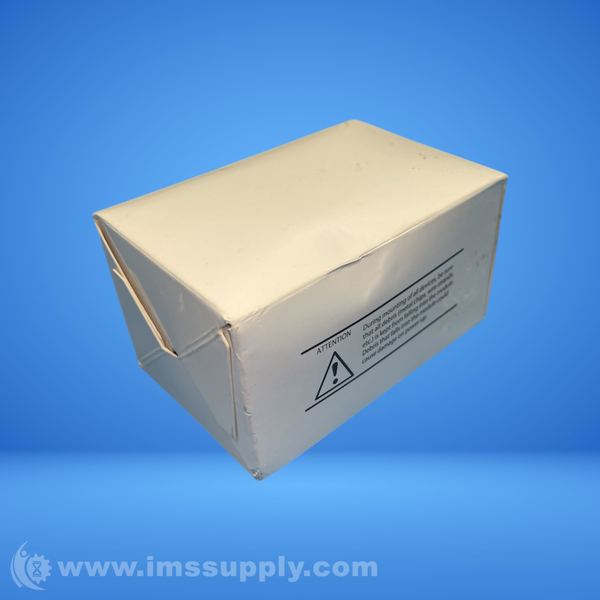

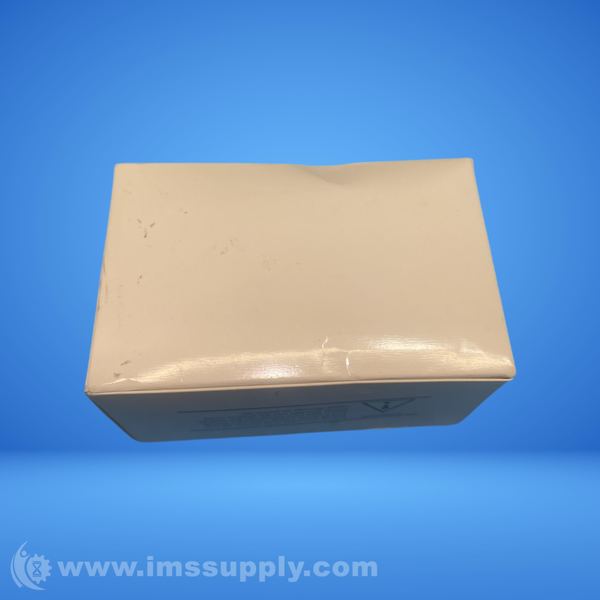

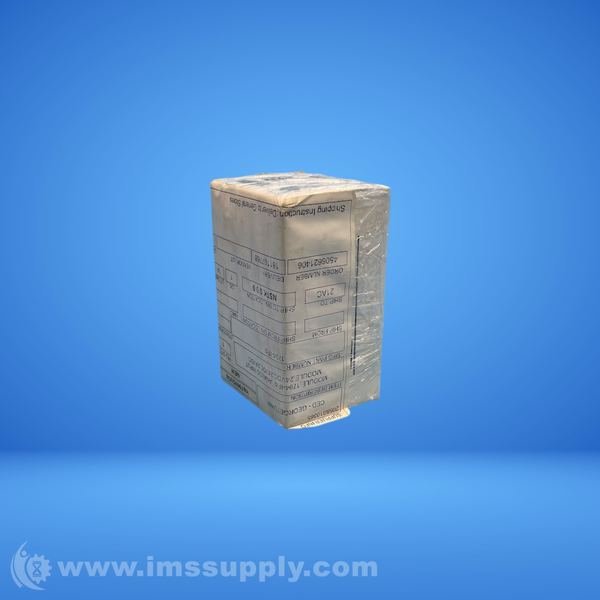

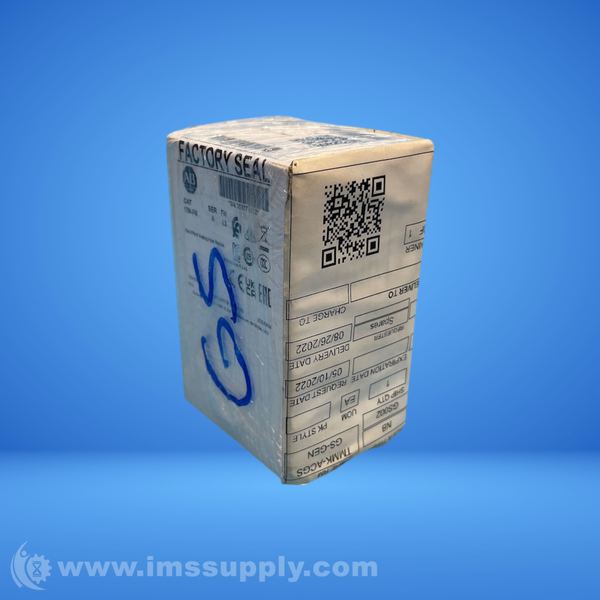

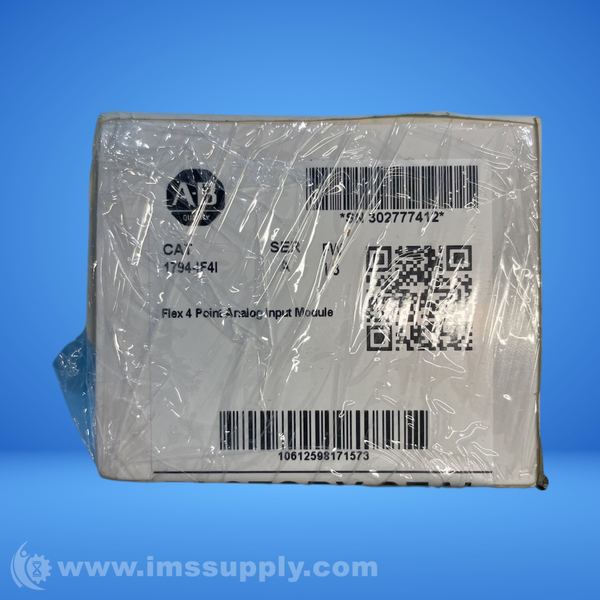

New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 26 minutes.

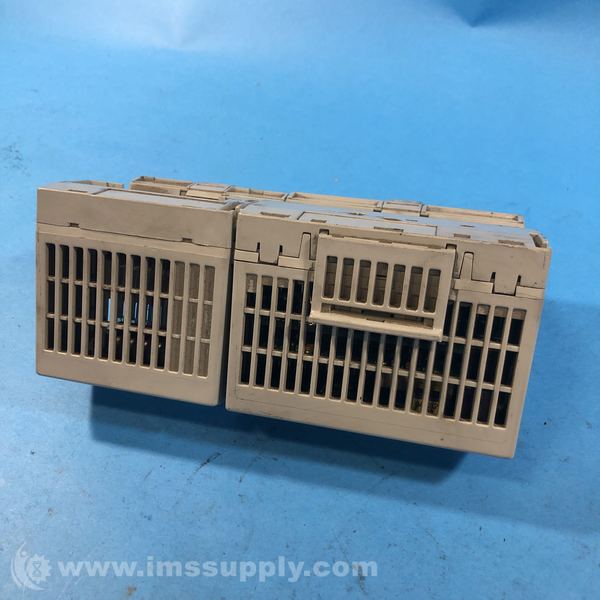

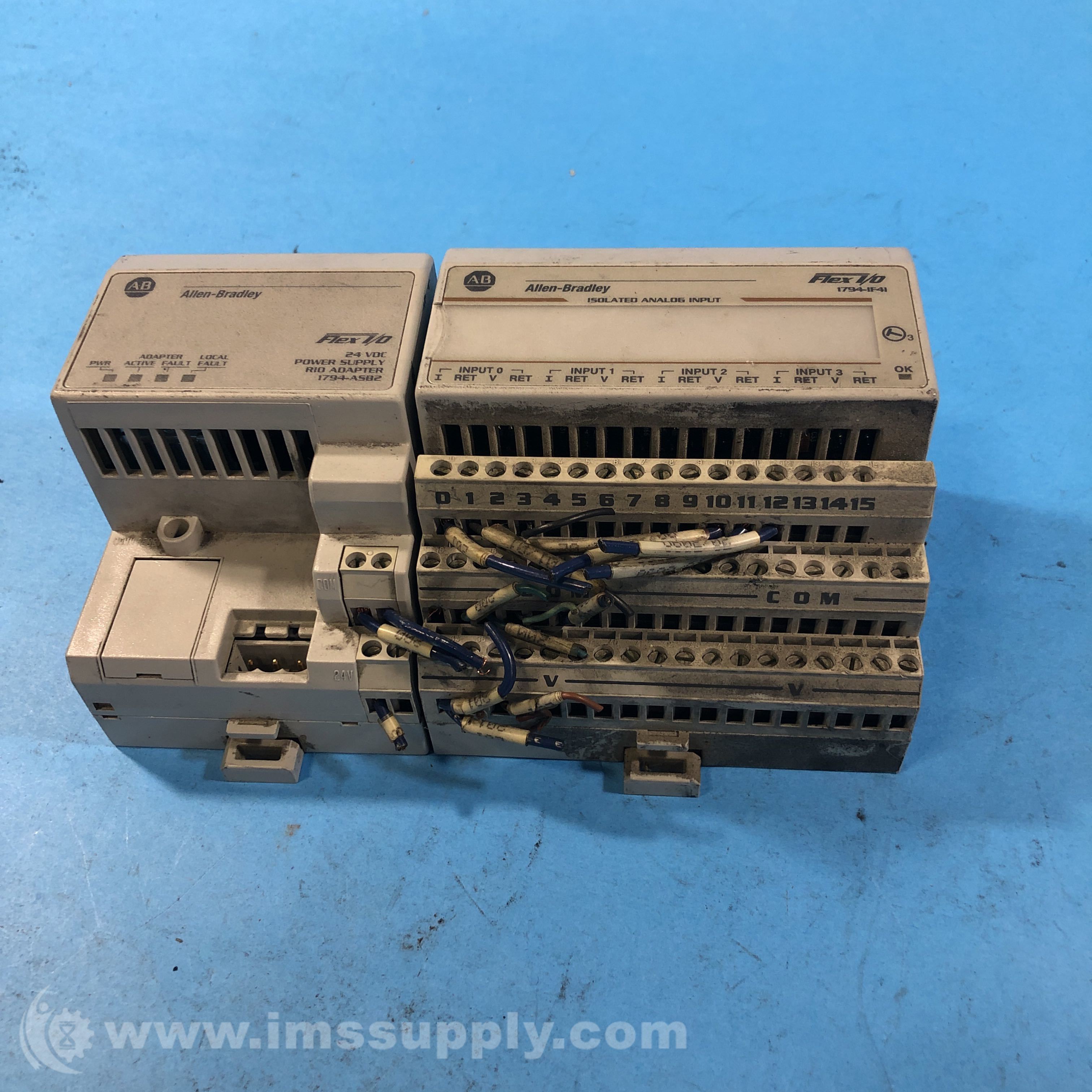

Used (Special):

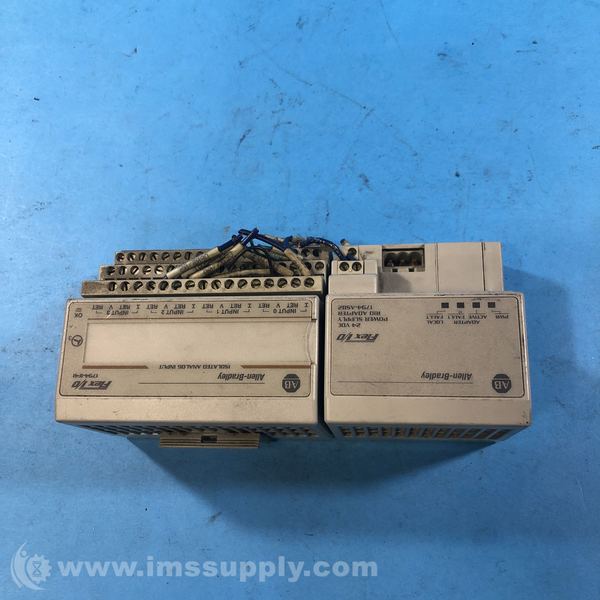

Part also comes with part#1794-ASB2 POWER SUPPLY RIO ADAPTER.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 26 minutes.
