ALLEN BRADLEY 1794-OB16P FLEX I/O DIGITAL DC OUTPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1794-OB16P
IMS Product Code: 148933
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:

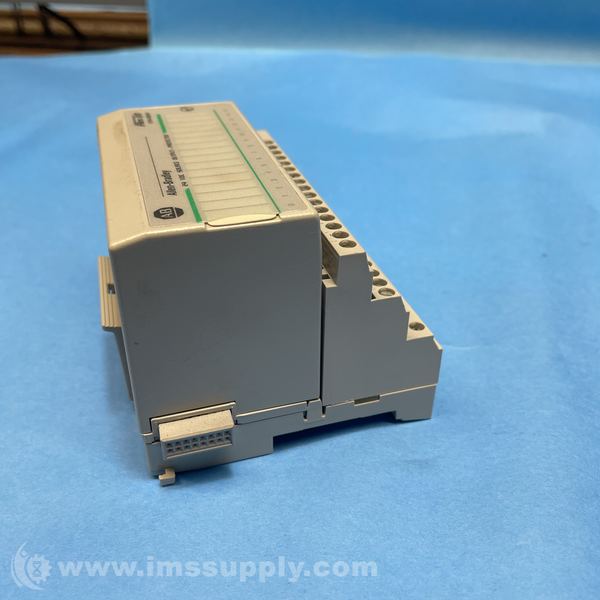

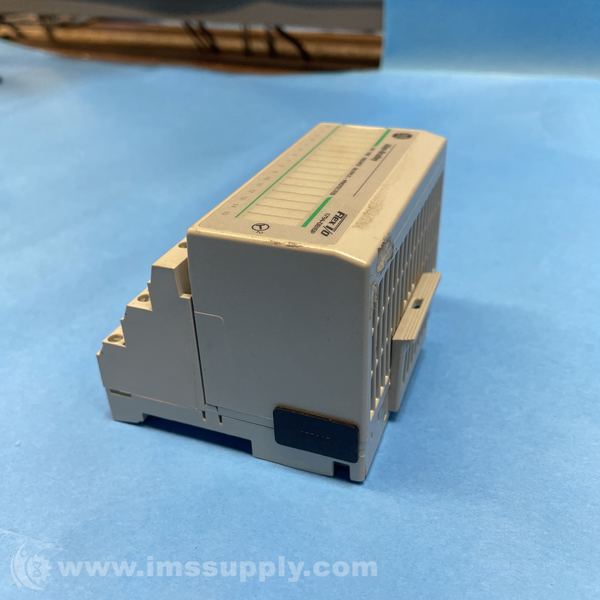

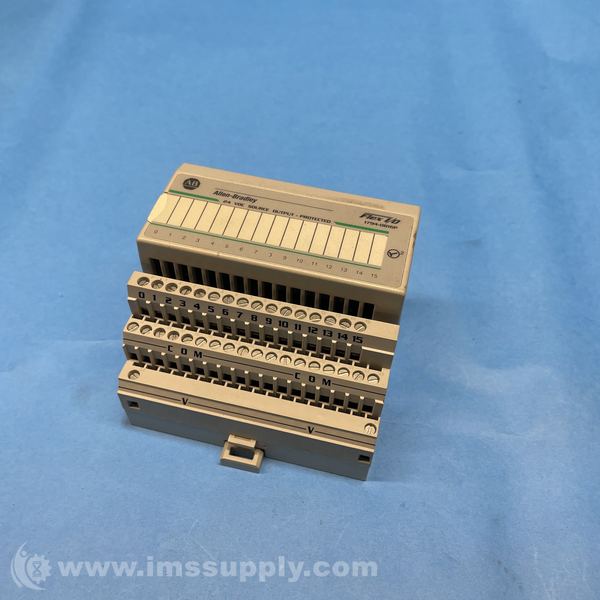

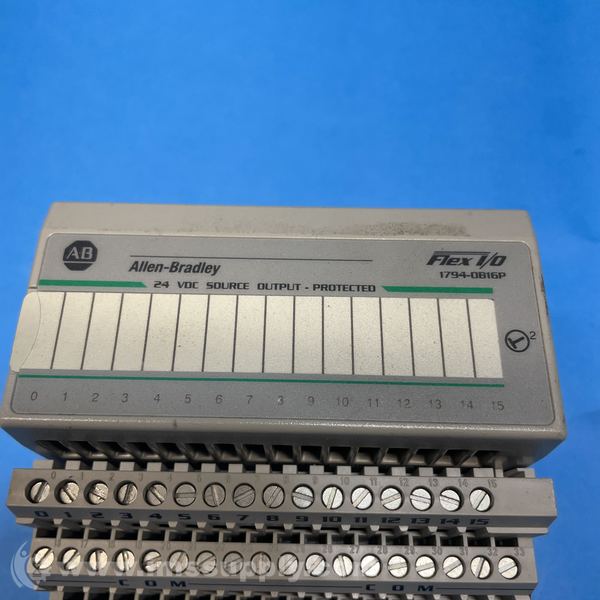

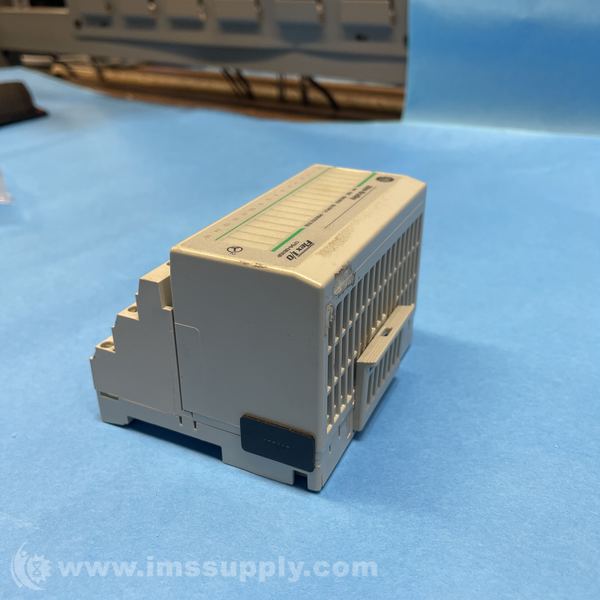

Allen Bradley 1794-OB16P Flex I/O Digital DC Output Module
The Allen-Bradley 1794-OB16P is a Flex I/O digital DC output module providing 16 non-isolated sourcing outputs rated at 24V DC nominal voltage and 500mA per channel. It requires a separate terminal base for installation and is compatible with various FLEX I/O communication adapters.
Specifications
- Number of Outputs: 16
- Output Type: Current sourcing
- Output Voltage: 24VDC
- On-state voltage range: 10 to 31.2 Volts DC
- Output current rating: 8.0A total, 500mA per channel
- Isolation voltage: 50V continuous, 2121VDC for 60s type tested
- Output signal delay: 0.5ms OFF to ON, 1.0ms ON to OFF
- Dimensions: 3.7 x 3.7 x 2.7 Inches
- Mounting style: DIN rail mount
- Enclosure type: Open type
- Series: Flex I/O
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 26 minutes.
