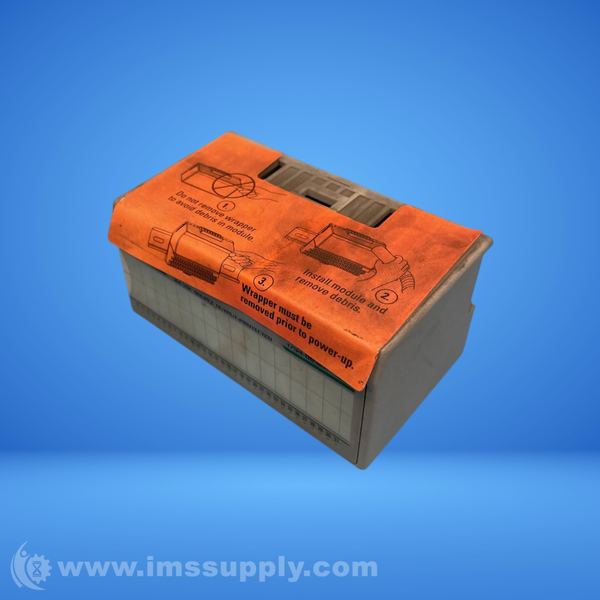

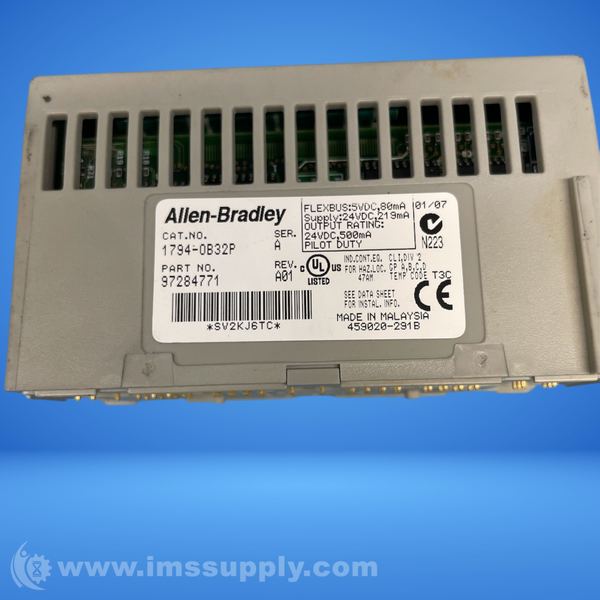

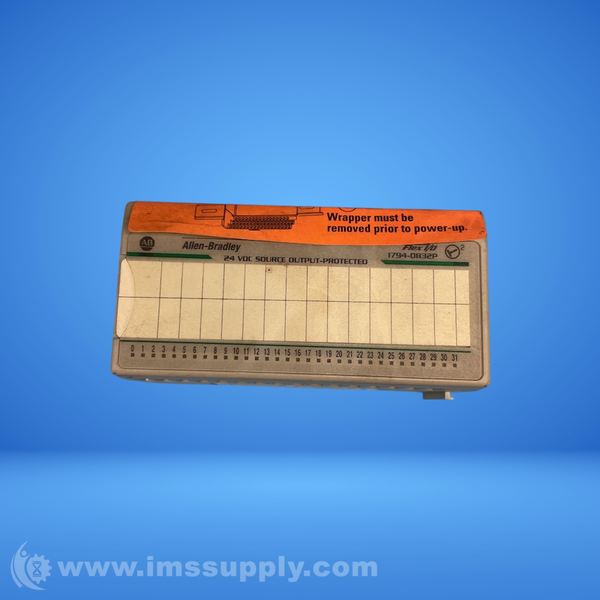

ALLEN BRADLEY 1794-OB32P FLEX 32 POINT DIGITAL OUTPUT MODULE
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 1794-OB32P
IMS Product Code: 2127992
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:
Allen Bradley 1794-OB32P Flex 32 Point Digital Output Module
32-point digital output module with 24V DC sourcing output type.
Specifications
- Output Type: 24 Volt DC sourcing
- Output Channels: 32
- Output Current Rating: 14.0 Amperes per module
- Output Current Rating Channels 0-15: 6 Amperes
- Output Current Rating Channels 16-31: 8 Amperes
- Voltage Rating: 24 Volts DC
- Current Rating: 0.5 Amps Per Channel
- On-State Voltage Range: 10 to 31.2 Volts DC
- On-State Voltage Drop max.: 0.5V DC
- Off-state Leakage Current max.: 0.5mA
- Isolation Voltage: 50V Continuous
- Flexbus Current: 80mA 5V DC
- Power Dissipation: 5.3W 31.2V DC max.
- Thermal Dissipation: 18.1 BTU/hr. 31.2V DC max.
- Temperature Rating: 0…55 °C (32…131 °F)
- Dimensions: 3.7 x 3.7 x 2.7 Inches
- Mounting: DIN Rail
- Series: Flex I/O
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
