ALLEN BRADLEY 2094-PRS4 KINETIX 6000 SLIM POWER RAIL
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 2094-PRS4
IMS Product Code: 149589
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:

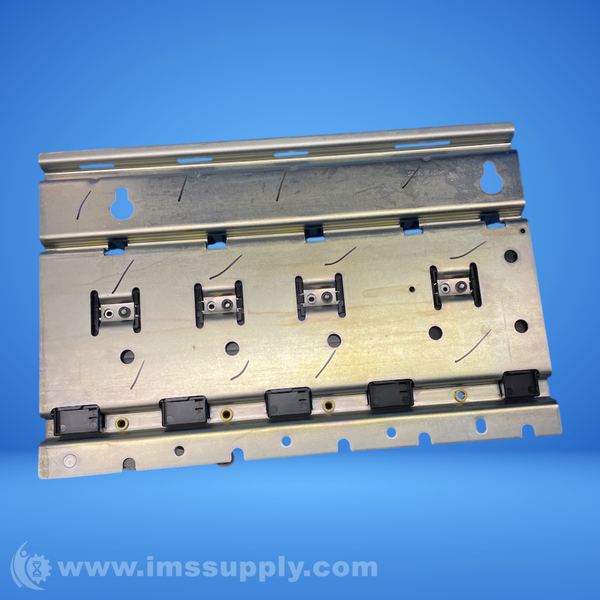

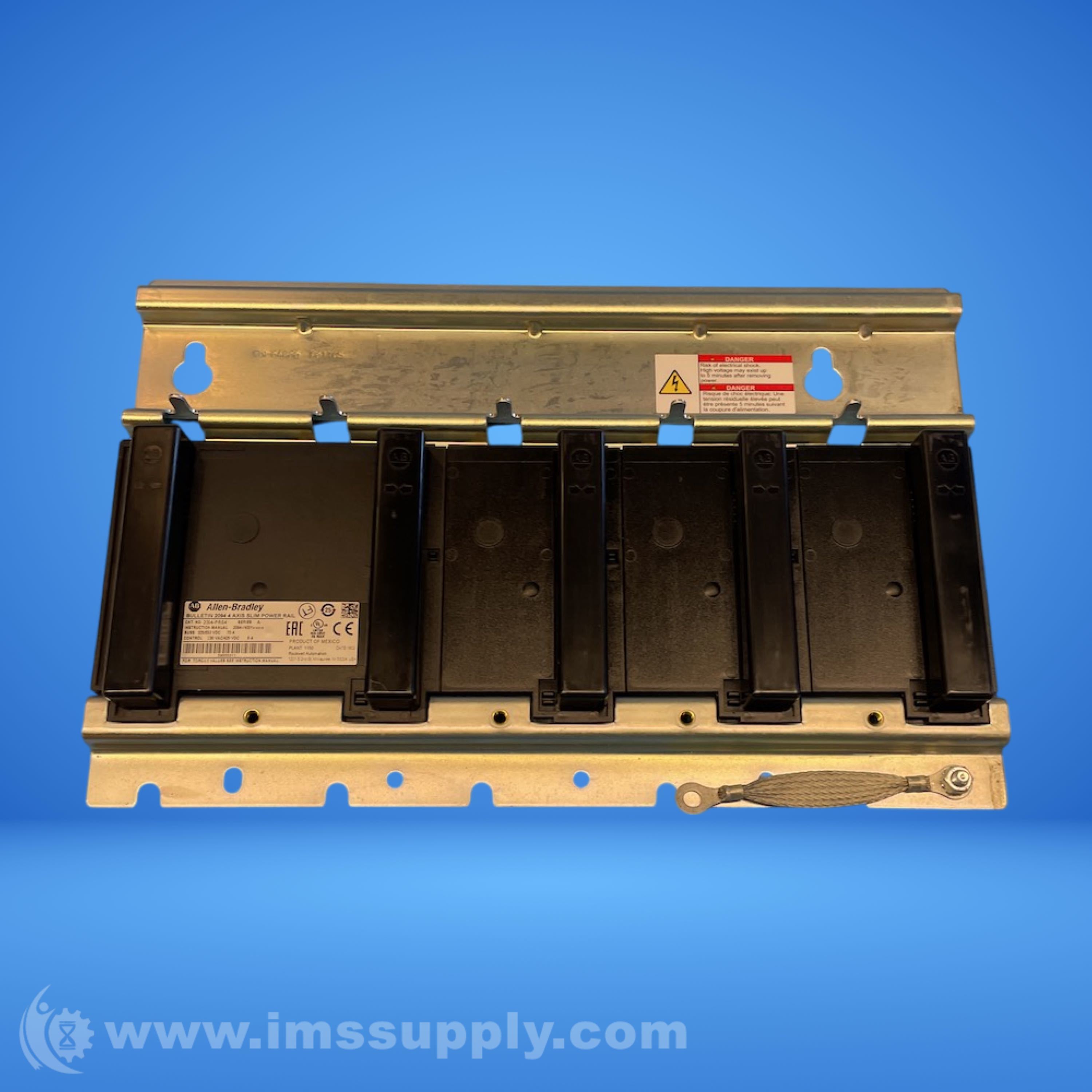

Allen Bradley 2094-PRS4 Kinetix 6000 Slim Power Rail
Slim power rail for Kinetix 6000 series servo drives, supporting 4 axes, compatible with 230V and 460V systems. It supports 1 integrated axis module and 3 additional axis modules, with provisions for shunt modules and slot filler modules.
Specifications
- type: Power Rail
- module type: Slim Power Rail
- number of axes: 4
- voltage: 230V OR 460V
- compatibility: Compatible with 230 Volts rated Kinetix systems and with 460 Volts rated Kinetix systems
- axis support: Supports 1 to 3 regular axis modules and 1 integrated axis module
- additional features: Supports shunt modules and needs slot filler modules to cover axis slots that are not being used
- operating temperature: 32 to 122 degrees Fahrenheit
- dimensions: 13.7 x 10.5 in (348.0 x 266.7 mm)
- weight: 5.9 lbs (2.67 kg)
