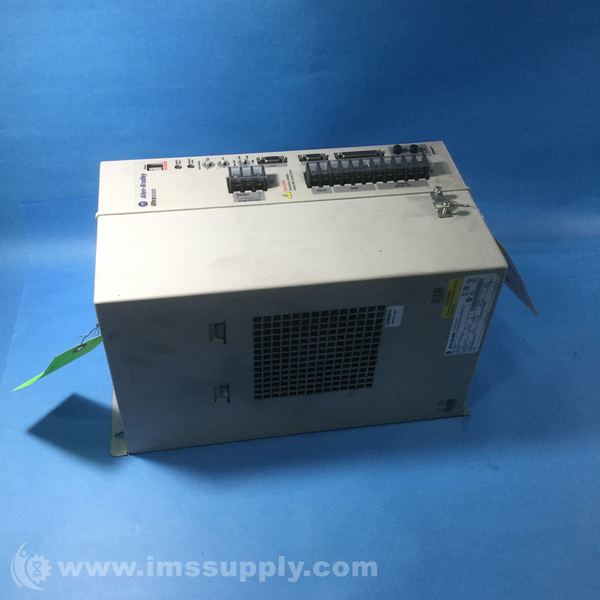

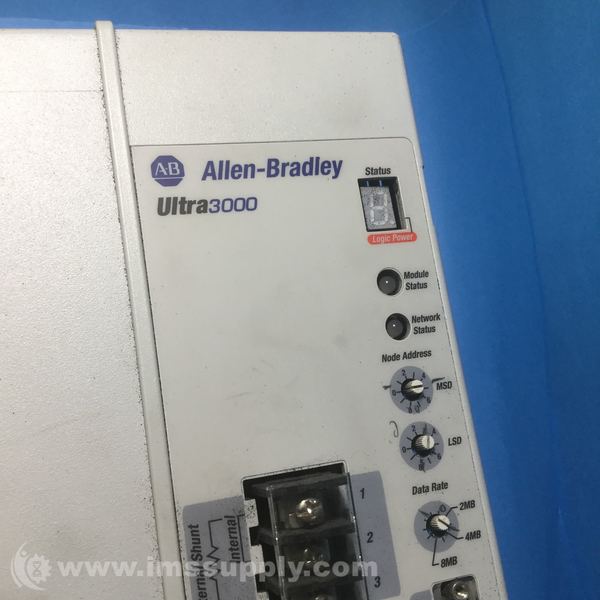

ALLEN BRADLEY 2098-DSD-HV220-SE ULTRA3000 DIGITAL SERVO DRIVE
Quick Overview
Manufactured By: ALLEN BRADLEY

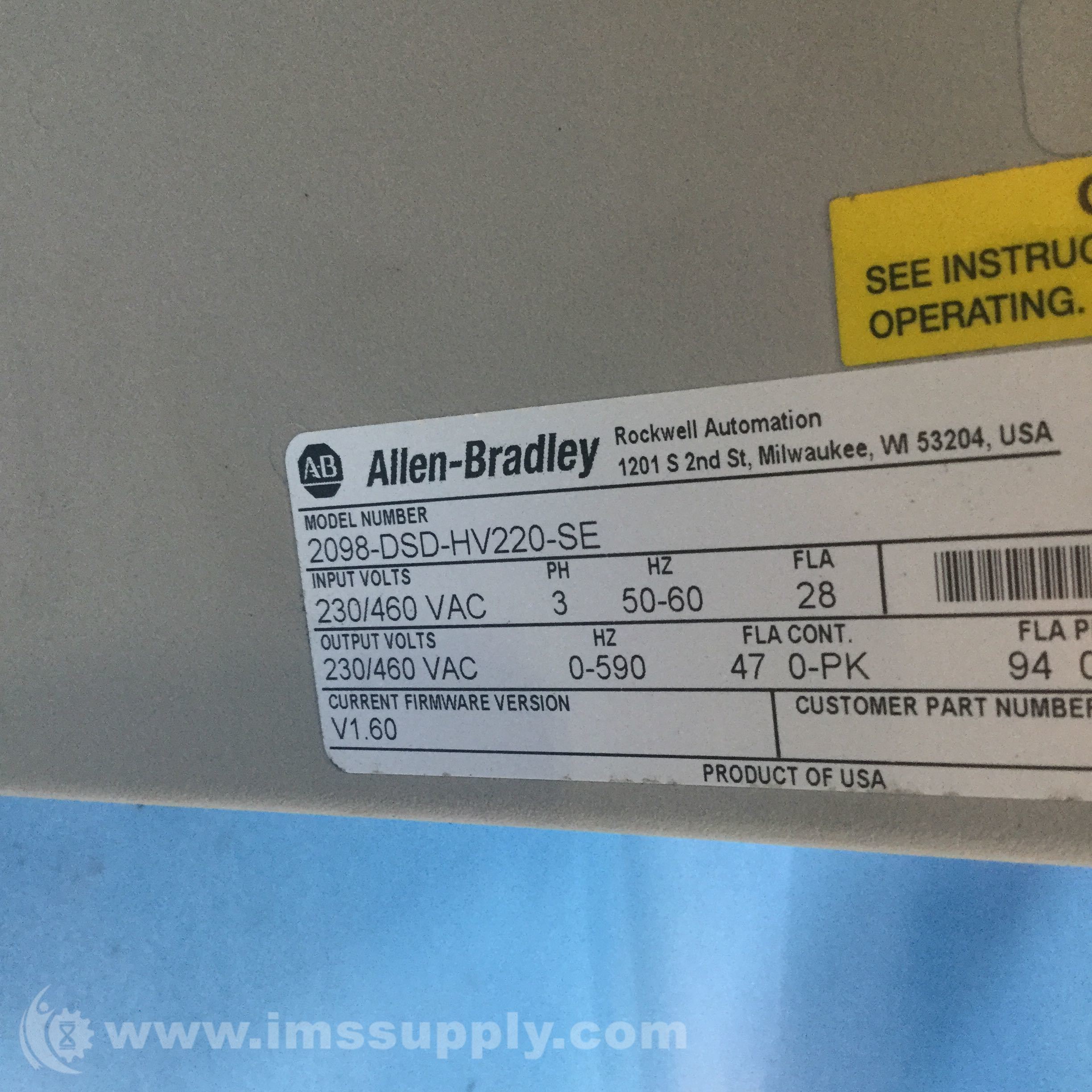

Manufacturer Part Number: 2098-DSD-HV220-SE
IMS Product Code: 1815668
Packaging: Sold Individually
Description:
Allen Bradley 2098-DSD-HV220-SE Ultra3000 Digital Servo Drive
Digital Servo Drive for integrated motion
Specifications
- Auxiliary Power Supply: Yes
- Bus Capacitance: 1880 �F
- Bus Overvoltage: 810 Volts dc
- Category: Drives
- Current Rating: 47-94 AMPS
- Features: Sercos
- Frequency: 50/60 HZ
- Input Frequency (AC): 47-63 Hz
- Input Voltage (AC): 230-480 Voltage Root Means Square (Three Phase)
- Internal Shunt Resistance: 20 Ohms
- Interface: Sercos Interface
- Manufacturer: Allen Bradley
- Nominal Input Current (AC): 28 Amps Root Means Square
- Output Current (Continuous): 47 Amps (0-peak)
- Output Current (Intermittent): 94 Amps (0-peak)
- Part Number: 2098-DSD-HV220-SE
- Power Rating: 22 KW
- Product Line: Ultra3000-5000
- Series: Ultra 3000 Drives
- Shunt On: 800 Volts dc
- Type: Servo Drive
- UPC: 662453959542
- Voltage Range: 230-480 VAC
- Weight: 31.00 lbs (14.06 kg)
