ALLEN BRADLEY 42EF-P8JBC-F4 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 42EF-P8JBC-F4
IMS Product Code: 2156546
Packaging: Sold Individually
Description:

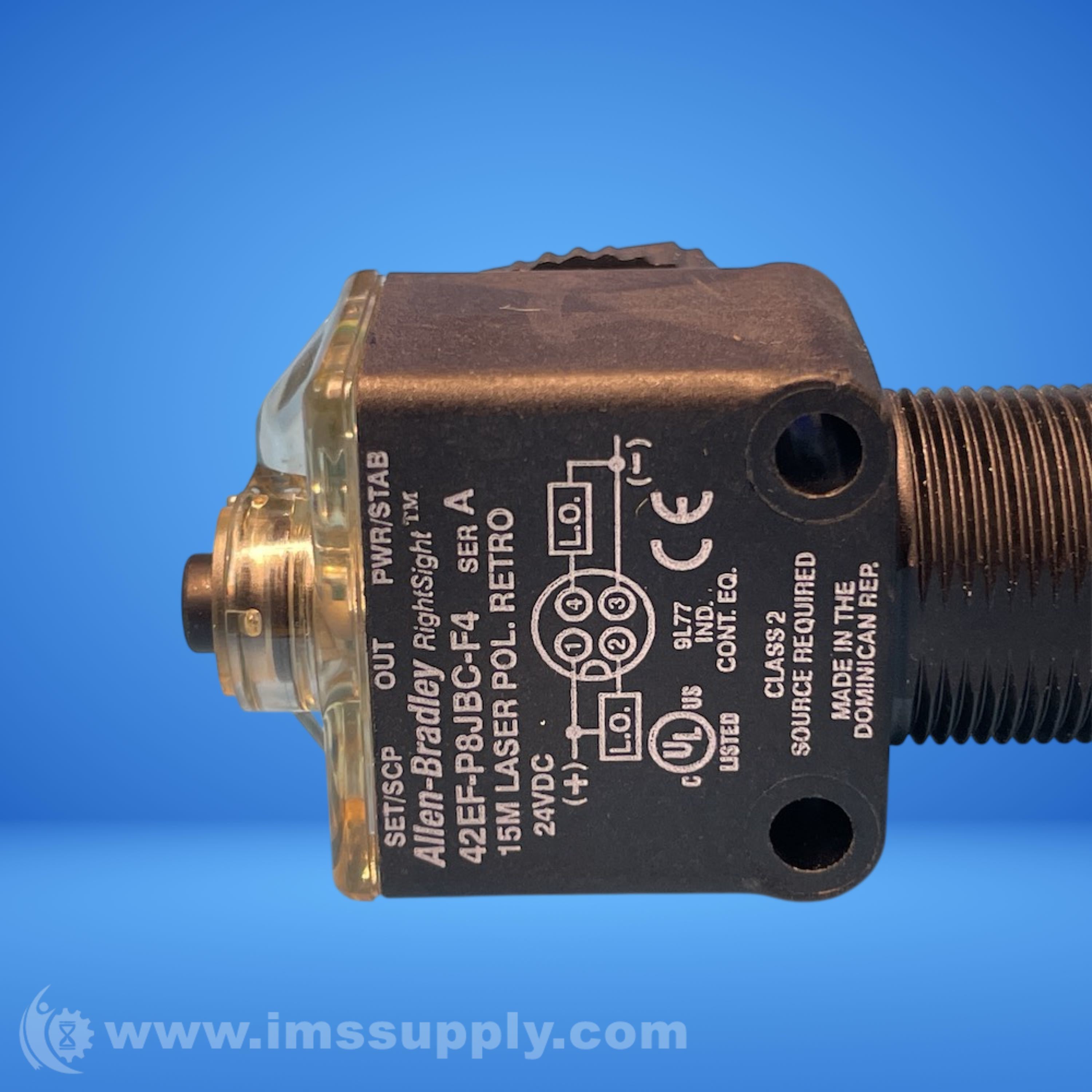

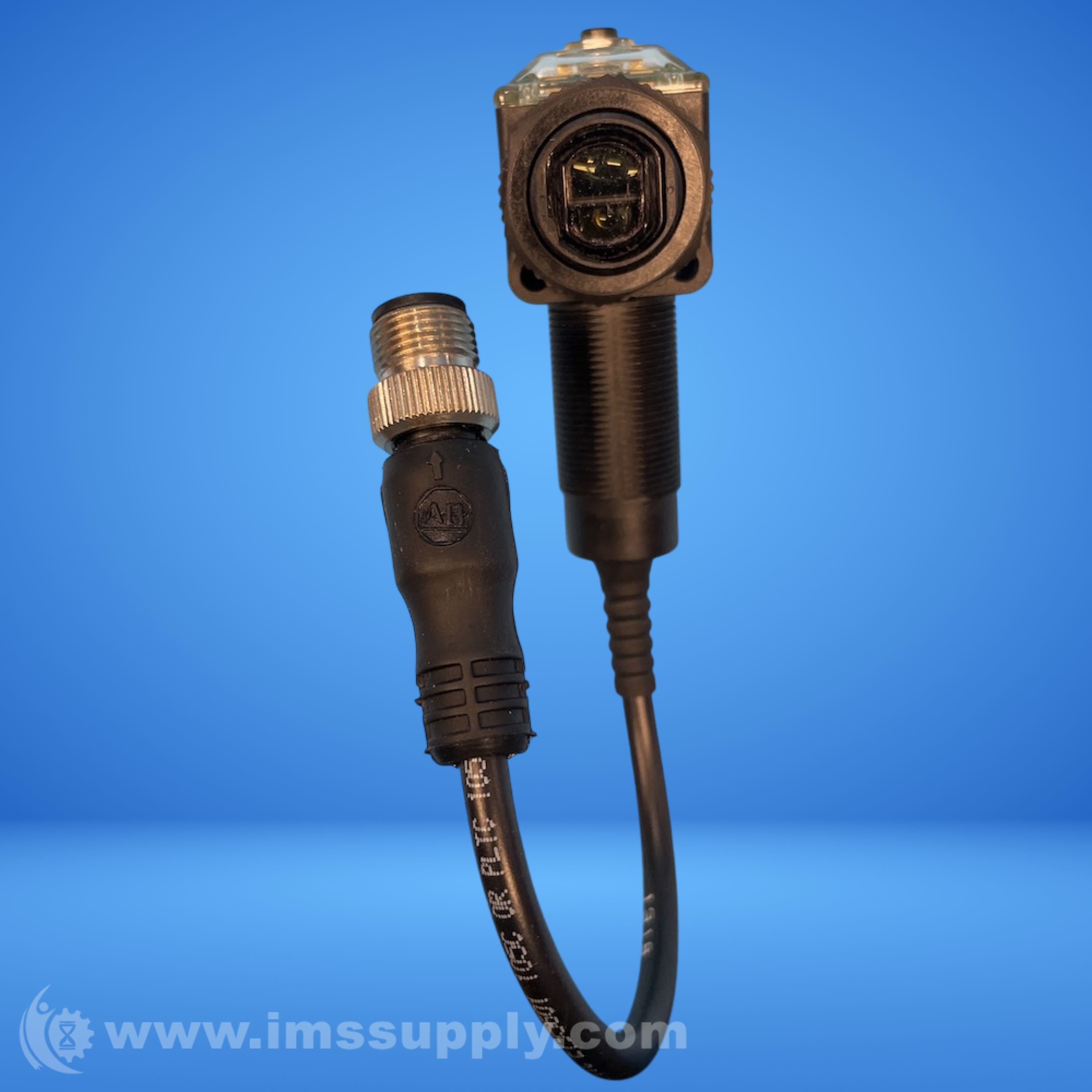

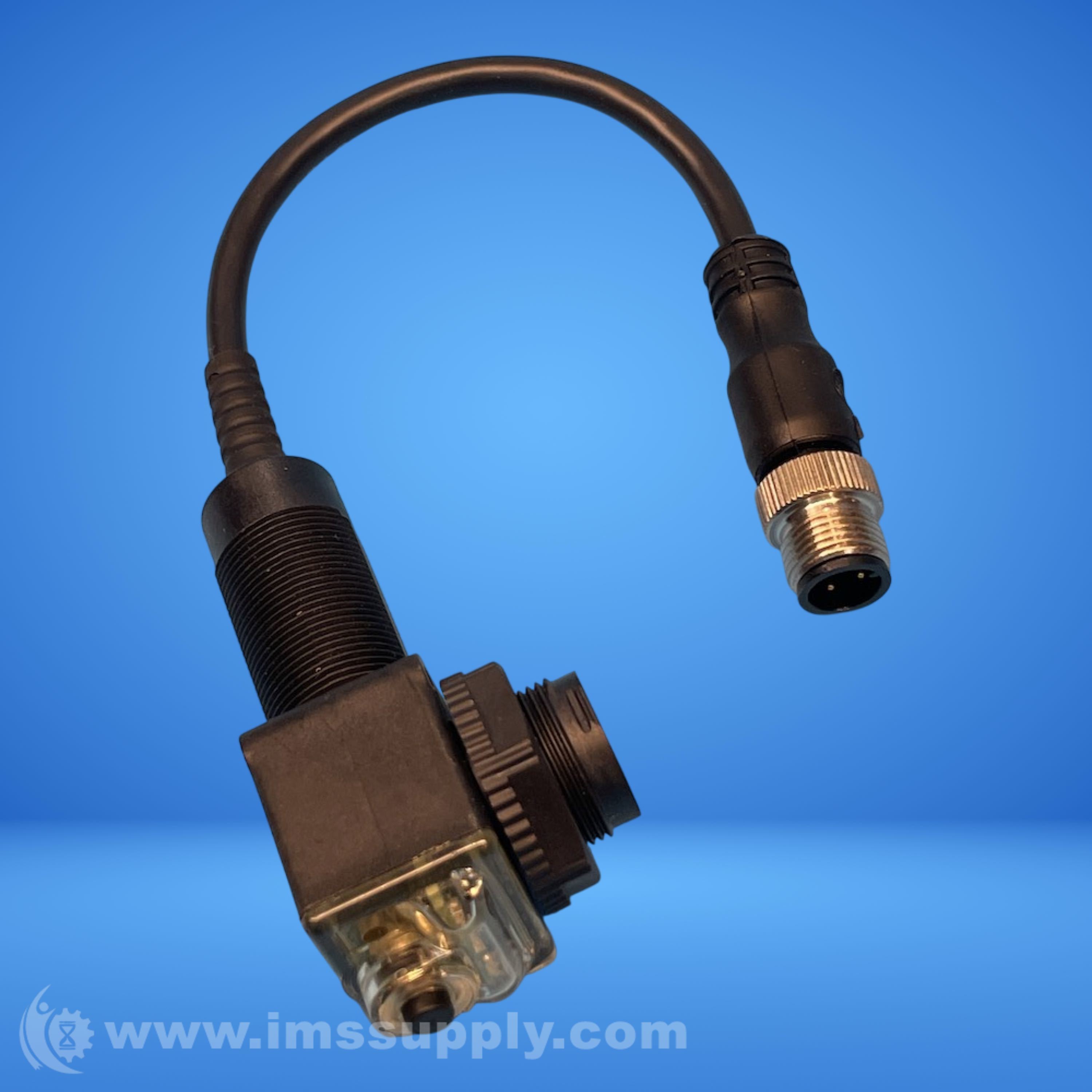

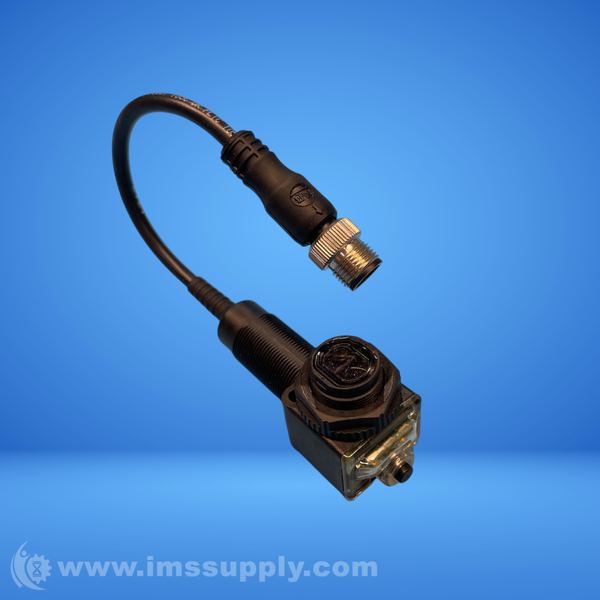

Allen Bradley 42EF-P8JBC-F4 Photoelectric Sensor
Polarized retroreflective photoelectric sensor with laser sight, 15m sensing distance, 10-30V DC operating voltage, NPN & PNP output, 4-pin micro QD connector.
Specifications
- Degree of protection (NEMA): 6P
- Degree of protection (IP): IP54
- Width sensor: 27 mm
- Height of sensor: 46.7 mm
- Length of sensor: 34.5 mm
- Sensing mode: Polarized retroreflective
- Field of view: 1.5 degrees
- Spot size: 16 x 20 mm
- Response time: 1 ms
- Voltage type: DC
- Type of switching output: Other
- Type of electric connection: Connector M12
- Type of light: Laser
- Current consumption: 40 mA max
- Lens material: Acrylic
- Sensitivity adjustment: Teach button
- Leakage current: DC: 0.1 mA, max, AC: 0.4 mA, max
- Light source: Laser
- Output type: NPN & PNP W/ SCP
- Connection type: 4 pin micro QD on pigtail
- Operating voltage/mode: DC - light operate
- Protection type: Short circuit, reverse polarity, false pulse, overload
- Max. output current: 100 mA
- Rated control supply voltage: 24V DC (±10%)
- Material housing: Mindel™
- Cover material: Udel™
- Relative humidity: 5...95% noncondensing
- Ambient light immunity: Incandescent light 5000 lux
- Operating temperature: 10…50 °C (14…122 °F)
- Laser protection class: Class 1
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
