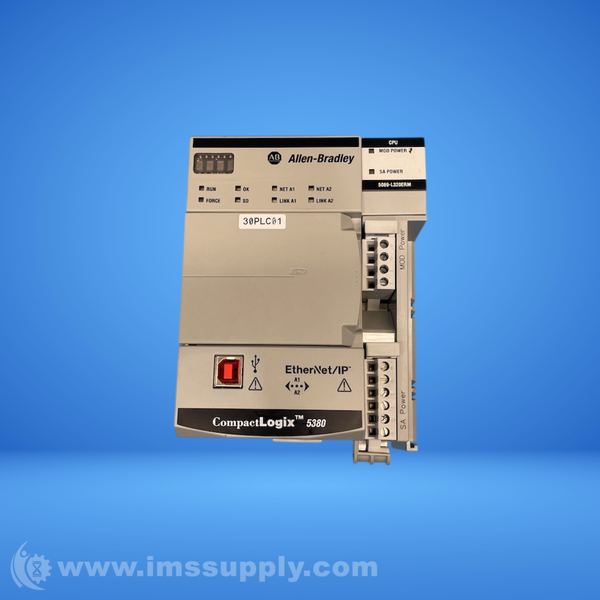

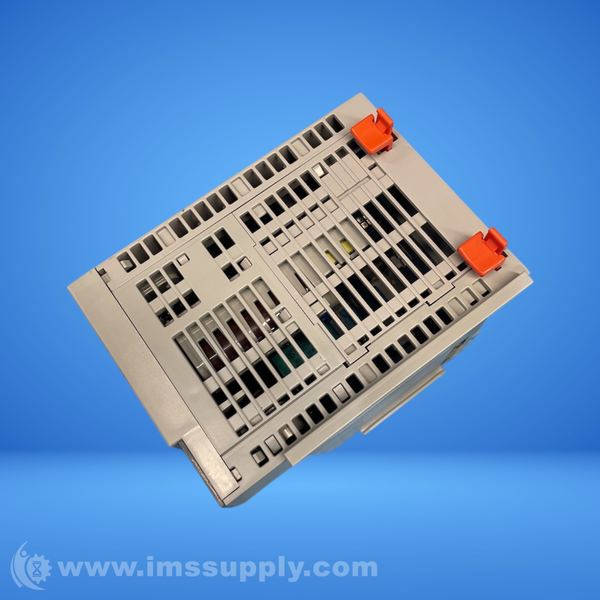

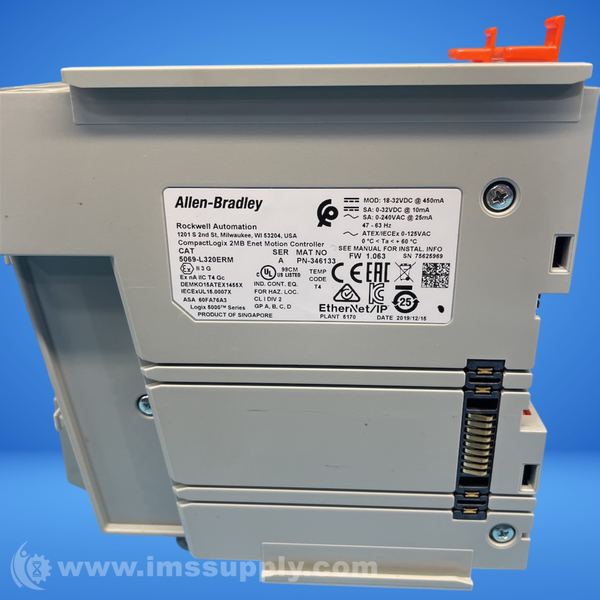

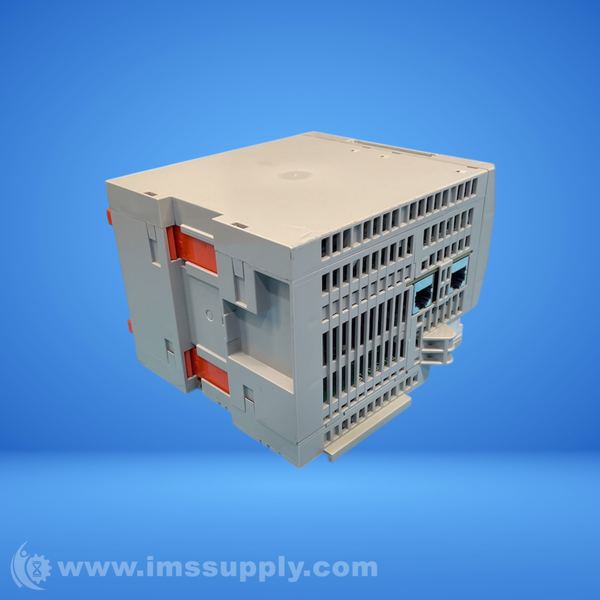

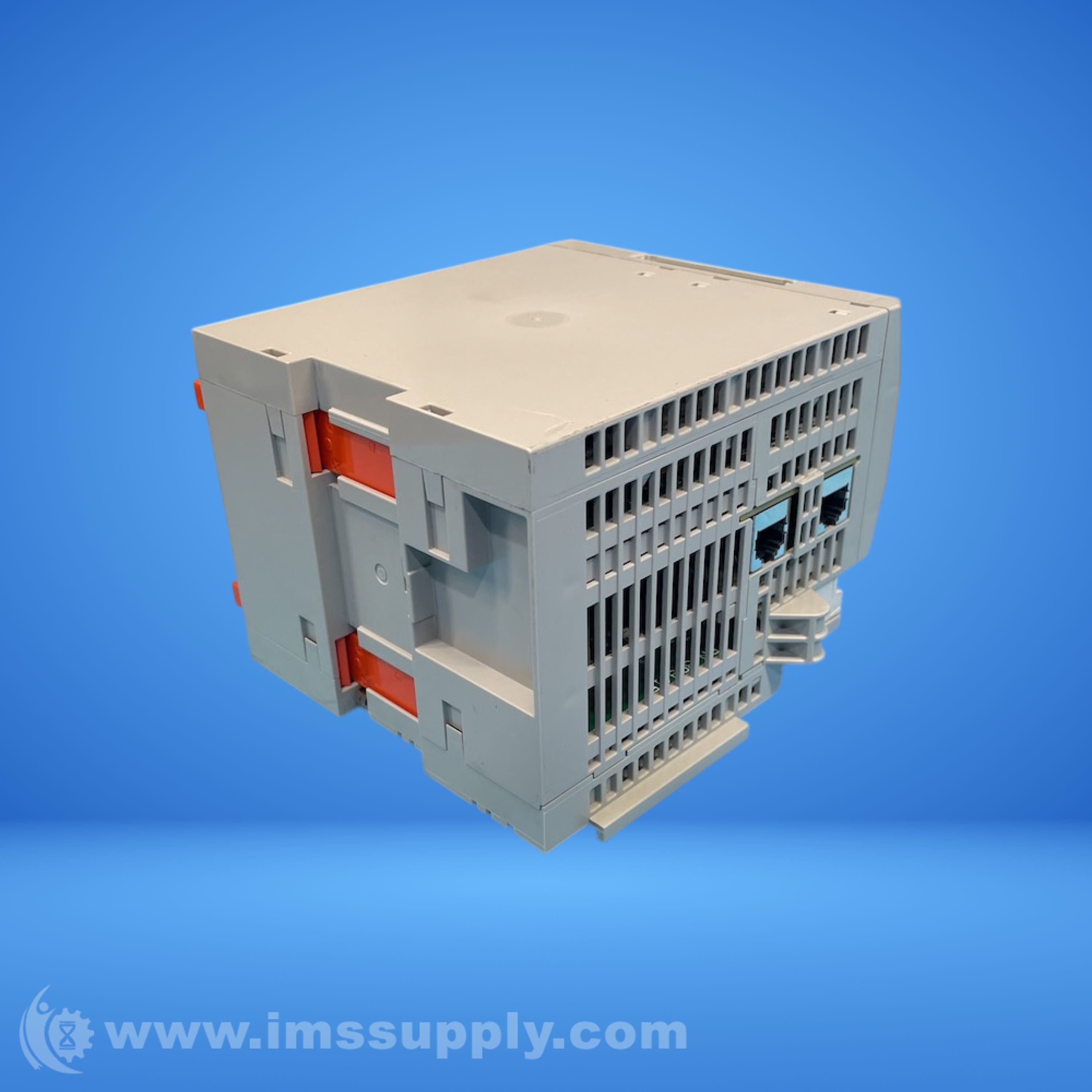

ALLEN BRADLEY 5069-L320ERM COMPACTLOGIX CONTROLLER
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 5069-L320ERM
IMS Product Code: 2141667
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:
Allen Bradley 5069-L320ERM CompactLogix Controller
CompactLogix 5380 controller with 2MB memory, supporting 16 I/O modules, 8 motion axes, and 40 EtherNet/IP nodes.
Specifications
- Communication: EtherNet/IP, USB
- Depth: 136.81mm, 5.39 inches
- Height: 123mm, 4.84 inches
- Interface: 2 x 1 Gb EtherNet port
- Isolation: 300V(cont); No isolation between ENET ports
- Memory: 2MB
- Number Of Channels: 0
- Power Supply: MOD Power 18…32V DC SA Power 0…32V DC 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC max
- Processor: Quad Core
- User Memory: 2 MB
- Tasks: 32
- Programs Per Task: 1000
- Ethernet/IP Nodes: 40
- Motion Control Axes: 8
- I/O Modules (max): 16
- Safety Rating Selection: None
- Series: 5380
- Controller Type: CompactLogix
- System Overhead Time: 1600 ns
- Non-Volatile Memory: 20%
- Ethernet RIO Port: 1
- Dimensions: 5.4 x 0.9 x 4.2 in (138 x 22 x 105 mm)
- Weight: 0.39 lbs (175 g)
- Communication Ports: 1 Type B 2.0 Full-Speed USB and 2 Ethernet/IP Ports (10 Mbps, 100 Mbps, 1 Gbps)
- Programming Languages: Sequential Function Chart, Function Block Diagram, Structured Text, and Ladder Diagram
- Pulse Latching Supported: Yes
- Pattern Matching Supported: Yes
