ALLEN BRADLEY 800F-X11D CONTACT BLOCK
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800F-X11D
IMS Product Code: 2148546
Variation: Unspecified
Unspecified
Series: A

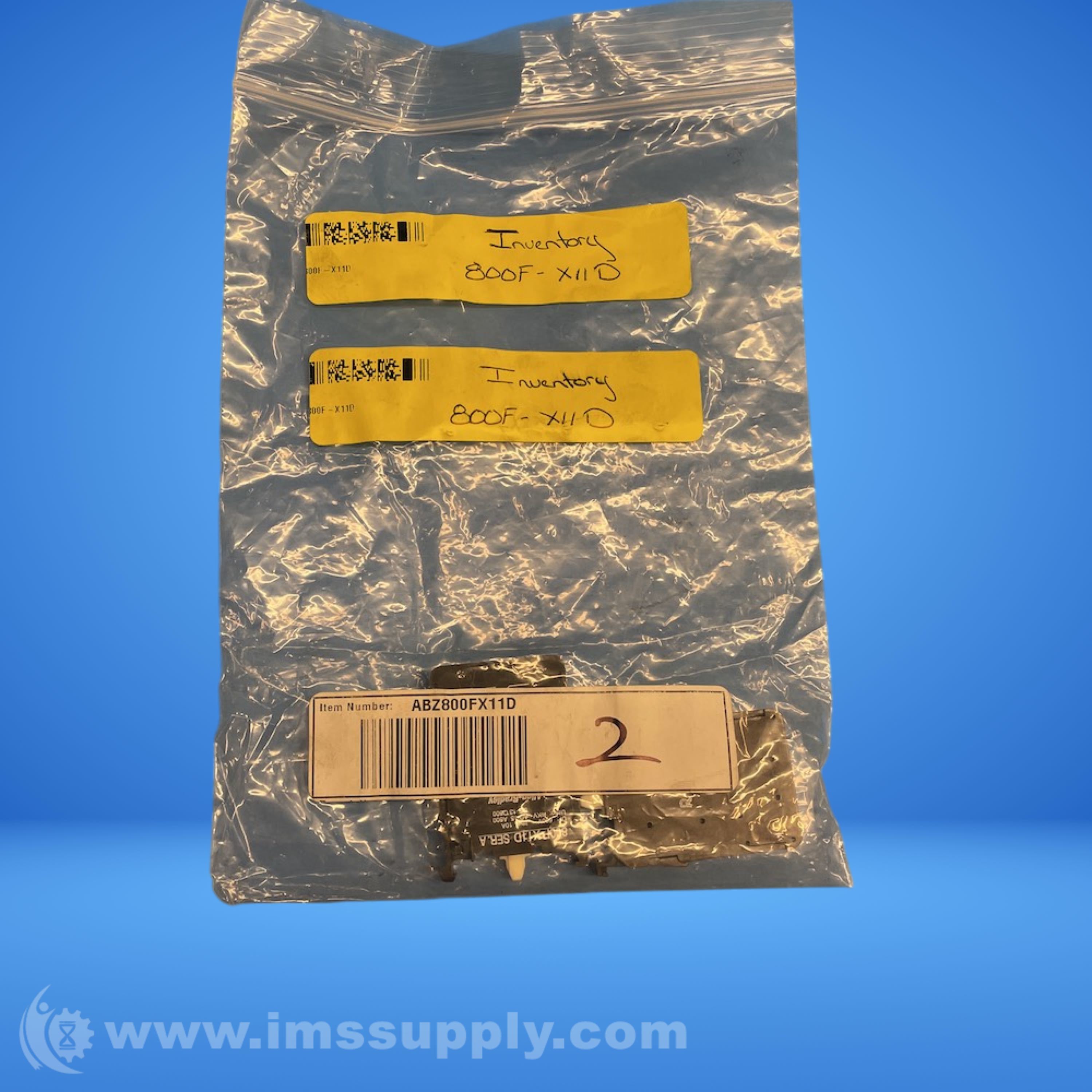

Packaging: Bag of 2
Sold Individually
Bag of 2
Description:

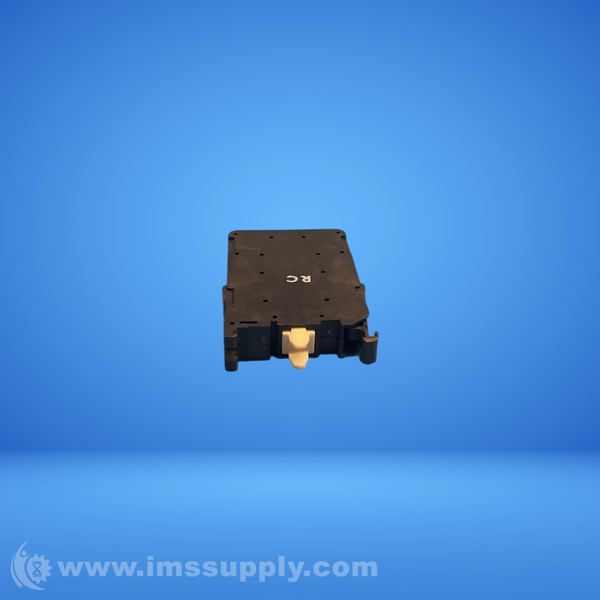

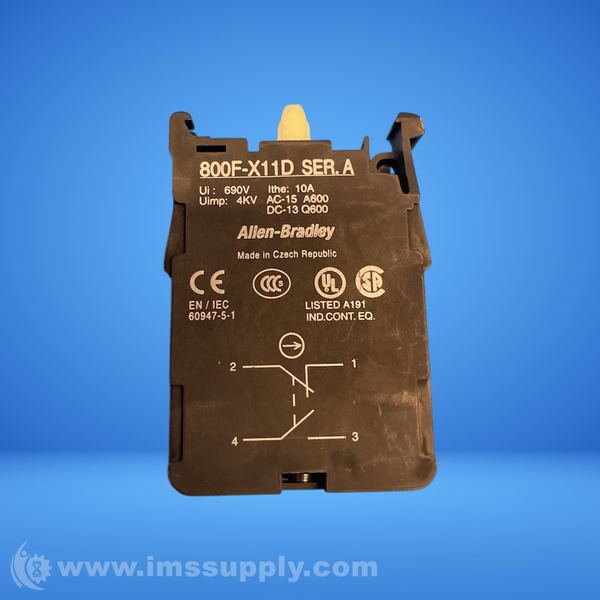

Allen Bradley 800F-X11D Contact Block
22.5mm PB No Latch, Screw Contact Block, 1 N.O. 1 N.C. Double Circuit
Specifications
- Product Type: 22mm Contact Block
- Number of contacts as normally closed contact: 1
- Number of contacts as normally open contact: 1
- Contact block configuration: 1 NO/1 NC
- Contact block type: Double circuit
- Contact block utilization category (AC): A600, AC 15 - screw termination
- Contact block utilization category (DC): Q600, DC-13 - screw termination
- Contact block operational voltage, max: 600V (A600, Q600) - screw termination
- Contact block thermal current rating: 10 A
- Contact block mounting style: Latch
- Termination style: Screw
- Latch material: Plastic / metal
- Contact block termination wire range: #18...12 AWG (0.75...2.5 mm)
- Vibration: 10 g
- Shock: 100 g
- Operator mounting hole dimension: 22.5 mm
- Contact block durability: 1.0E7
- Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m
- Operating temperature: -25 degrees C
- Storage temperature: -40 degrees C
- Humidity: <=95% RH from 25...60 degrees C (77...140 degrees F)
- Certifications: UL,UR, CSA, CCC, CE
- Weight: 0.02 kgs
