ALLEN BRADLEY 800H-AR7D1 BLUE FLUSH HEAD PUSHBUTTON
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800H-AR7D1
IMS Product Code: 2128190
Packaging: Sold Individually
Description:

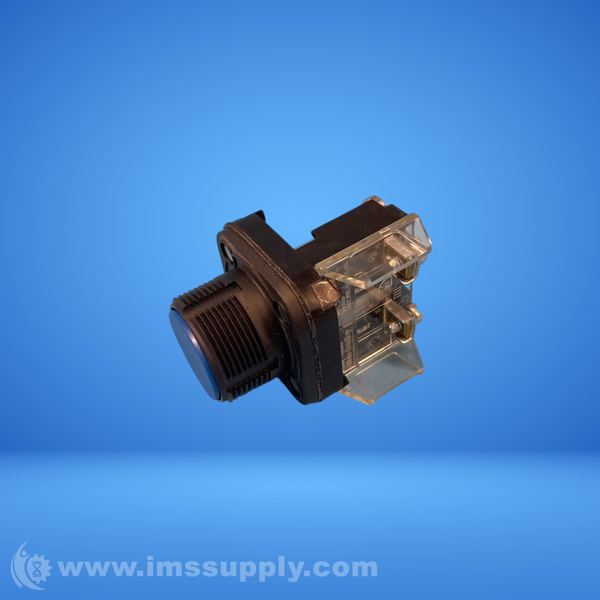

Allen Bradley 800H-AR7D1 Blue Flush Head Pushbutton
30 mm momentary push button with 1 NO contact configuration, flush head operator, blue plastic cap, screw connection, NEMA 4/4X/13 enclosure compatibility
Specifications
- Product Type: 30mm Momentary Push Button
- Operator Cap/Button Shape: Round
- Operator Cap/Button Material: Plastic
- Contact Block Thermal Current Rating: 10 A
- Contact Block Utilization Category (AC): A600, AC-15
- Contact Block Utilization Category (DC): Q600, DC-13
- Contact Block Operational Voltage, Max: 600V AC @ 600V DC
- Operator Cap Type: Flush Head
- Hole Diameter: 30.5 mm
- Type of Electric Connection: Screw Connection
- Operator Mechanical Design Life (Cycles, Min.): 1.0E7
- Operator Cap Color: Blue
- Enclosure Compatibility (NEMA Type): 1, 4, 4X, 12, 13
- Operator Function: Momentary Contact
- Contact Block Termination Tightening Torque: 6 - 8 in-lb / 0.7 - 0.9 N-m
- Contact Block Electrical Design Life (Cycles, at Max. Load): 1000000

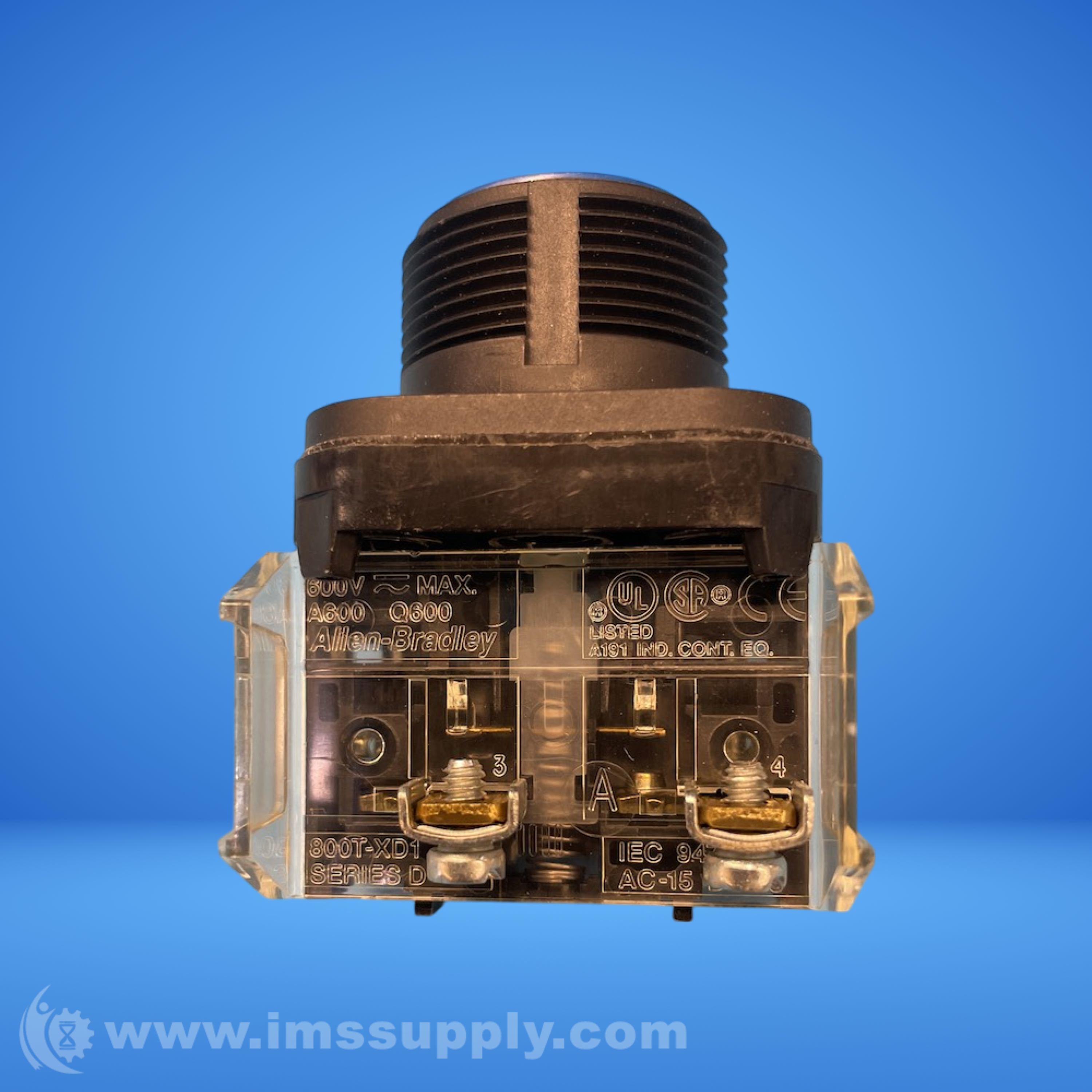

- Contact Block Configuration: 1 NO, Standard Contact Block (800T-XD1)
- Shock: 25 G (Contact Fragility)/100 G (No Damage)
- Vibration: 10 G Maximum
- Contact Block Termination Wire Range: 14 - 18 AWG (x2)
- Certifications: ABS, CCC, CE, CSA, EAC, GOST, UL
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 7 minutes.
