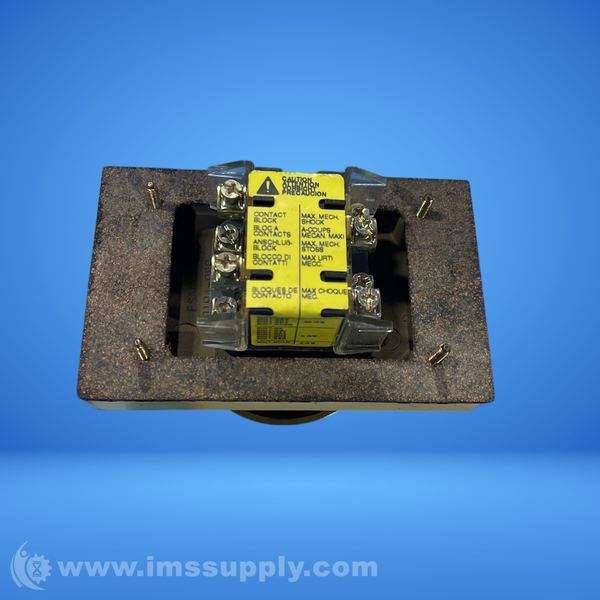

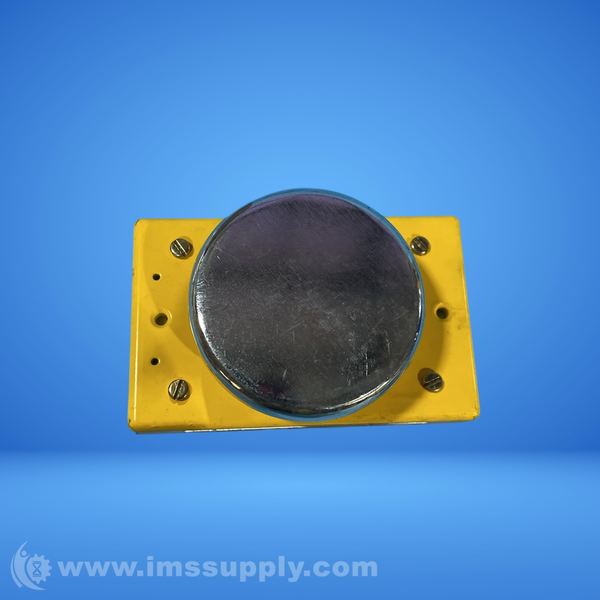

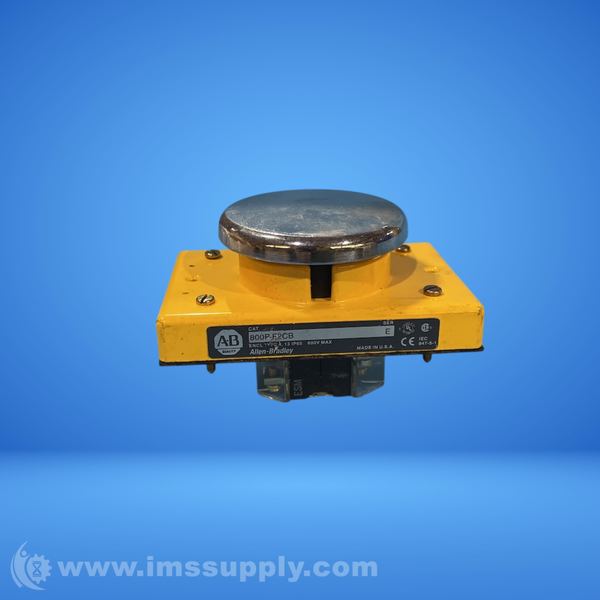

ALLEN BRADLEY 800P-F2CB PALM-OPERATED PUSH BUTTON
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800P-F2CB
IMS Product Code: 154481
Packaging: Sold Individually
Description:
Allen Bradley 800P-F2CB Palm-Operated Push Button
Palm-operated push button with articulated drive, chrome button, flush mounting type, and 2-NO 2-NC standard contacts.
Specifications
- Button Color: Chrome
- Guard Option: No Guard
- Mounting: Flush Mounting Push-Button
- Operation: Articulated Drive
- Number of contacts as normally closed contact: 2
- Number of contacts as normally open contact: 2
- Operational voltage (Ue), max: DC 60
- Thermal continuous current (Ith), max: 10 A, AC
- Rated operational current: 69VA @ 28...600V DC
- Rated operational current, break: 720VA @ 72...120V AC
- Rated operational current, make: 7200VA @ 120...600V AC
- Utilization category: Standard contact blocks: IEC: AC-15,DC-13 NEMA: A600, Q600
- Electrical life cycle: 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed)
- Dielectric strength: 2200V @ 1min
- Spring-return: True
- Mounting type: Flush mount
- Shock: Mechanical shock at 0.5 cycle sine-wave for 11 ms
- Contact fragility: 800T-XA contact block with no damage at 100 G: 9 G
- Vibration: 10...2000 Hz, 1.52 mm displacement (peak-to-peak) 10 G maximum
- Typical operating force: Articulated: 800T-XD1 and 800T-XD4 contact blocks, 3.7 lb, maximum at center of button
- Unlocking method: Push button
- Contact operation for shallow contact blocks: Snap action
- Mechanical life operations: Push buttons: 1000000 minimum
- Degree of protection (IP): IP65
- Colour cap: Other
- List of degrees of protection (NEMA): 1, 4, 12, 13
- Enclosure: No enclosure (flush style)
- Degree of protection (NEMA): 4
- Operating temperature: 32 °F
- Storage temperature: -40 °F
- Series: 800P
- Voltage: 600VAC
- Mounting Type: Flush
- Nema Rating: 1, 4, 12, 13
- Temperature Rating: 32 °F
- Actuator Type: Spring Return
- Contact Configuration: 2NO, 2NC
- Size: 30.5 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships Tomorrow
