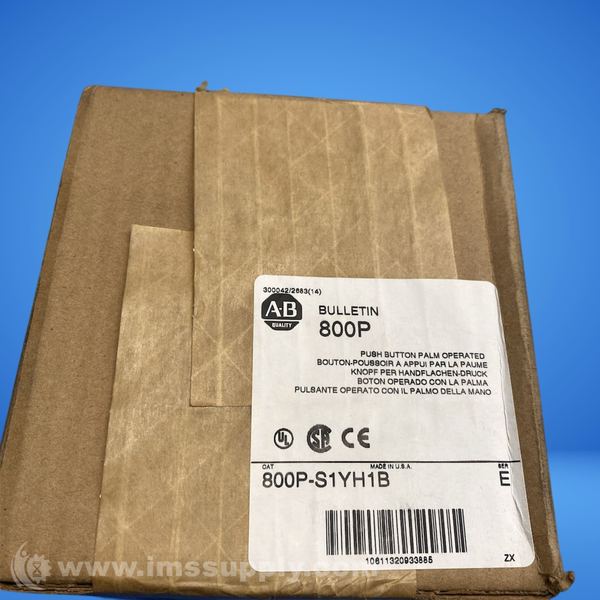

ALLEN BRADLEY 800P-S1YH1B PALM OPERATED PUSH BUTTON
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800P-S1YH1B
IMS Product Code: 2147389
Variation: Unspecified
Unspecified
Series: E
Packaging: Sold Individually
Description:
Allen Bradley 800P-S1YH1B Palm Operated Push Button
Palm operated push button with yellow button, surface mounting, standard drive, gray die cast guard, 2 NO 2 NC standard contacts
Specifications
- Button Color: Yellow
- Contact Blocks: 2-NO 2-NC Standard Contacts
- Enclosure Type: Surface Mounting Push-Button
- Guard Option: Gray Die Cast Guard
- Operation: Standard Drive
- Product Type: 800P
- Number of contacts as normally closed contact: 2
- Number of contacts as normally open contact: 2
- Operational voltage (Ue), max: DC 60
- Thermal continuous current (Ith), max: 10 A, AC
- Rated operational current: 69VA @ 28...600V DC
- Rated operational current, break: 720VA @ 72...120V AC
- Rated operational current, make: 7200VA @ 120...600V AC
- Utilization category: Standard contact blocks: IEC: AC-15,DC-13 NEMA: A600, Q600
- Electrical life cycle: 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed)
- Dielectric strength: 2200V @ 1min
- Spring-return: True
- Mounting type: Surface mount
- Shock: Mechanical shock at 0.5 cycle sine-wave for 11 ms
- Contact fragility: 800T-XA contact block with no damage at 100 G: 9 G
- Vibration: 10...2000 Hz, 1.52 mm displacement (peak-to-peak) 10 G maximum
- Typical operating force: Standard drive: 3.7 lb
- Unlocking method: Push button
- Contact operation for shallow contact blocks: Snap action
- Mechanical life operations: Push buttons: 1000000 minimum
- Degree of protection (IP): IP65
- Colour cap: Yellow
- List of degrees of protection (NEMA): 1, 4, 12, 13
- Enclosure: Single Hub
- Degree of protection (NEMA): 4
