ALLEN BRADLEY 800T-24HG2KB6AX 30MM SELECTOR SWITCH
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800T-24HG2KB6AX
IMS Product Code: 1767221
Packaging: Sold Individually
Description:

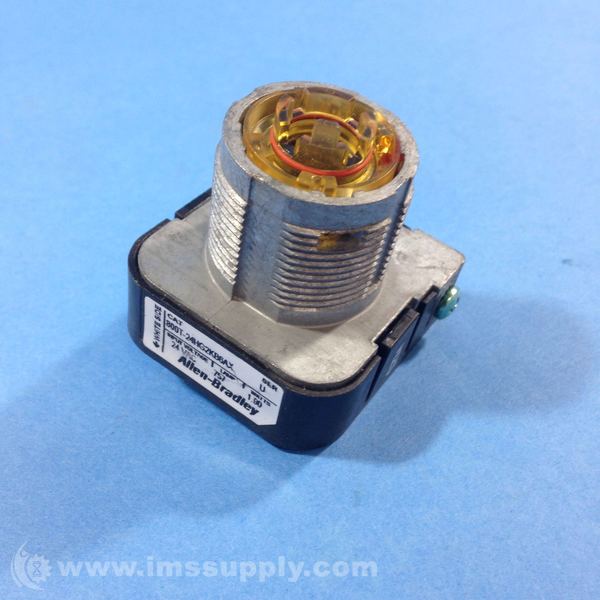

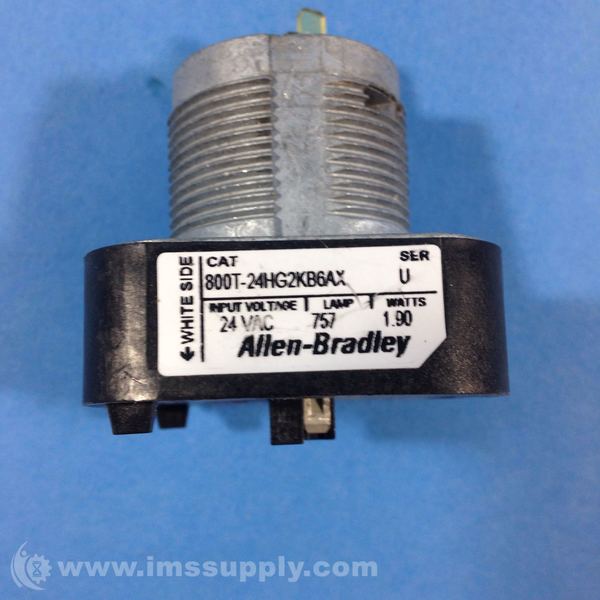

Allen Bradley 800T-24HG2KB6AX 30mm Selector Switch
30mm selector switch with 2 positions, maintained operation, 24V AC/DC illumination, standard knob operator, green color, 1NO-1NC contact configuration.
Specifications
- Product Type: 30mm Selector Switch
- Number of switch positions: 2
- Hole diameter: 30.5 mm
- Type of electric connection: Screw connection
- Operator mechanical design life (cycles, min.): 200000
- Enclosure compatibility (NEMA type): 1, 4, 12, 13
- Operator type: Selector switch
- Operator function: Maintained
- Illumination lamp type: Incandescent
- Illumination module type: Full voltage
- Illumination module input voltage: 24V AC/DC
- Position 1 contact block: 1-NO 1-NC standard contacts
- Operator cap/button material: Plastic
- Operator construction/material: Metal
- Operator cap type: Standard knob
- Operator cap color: Green
- Operating temperature: -25 degrees C
- Storage temperature: -40 degrees C
- Certifications: ABS, CCC, CE, CSA, EAC, GOST, UL
- Size: 30 mm
- Mounting Options: Front panel mounting
- IP Rating: IP66
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 31 minutes.
