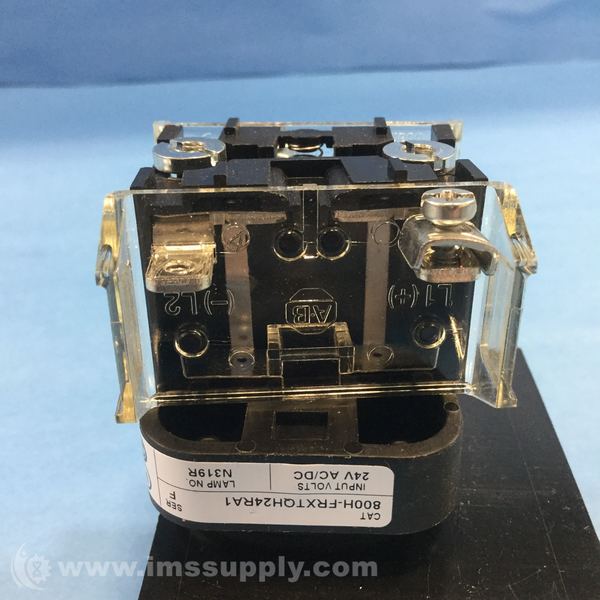

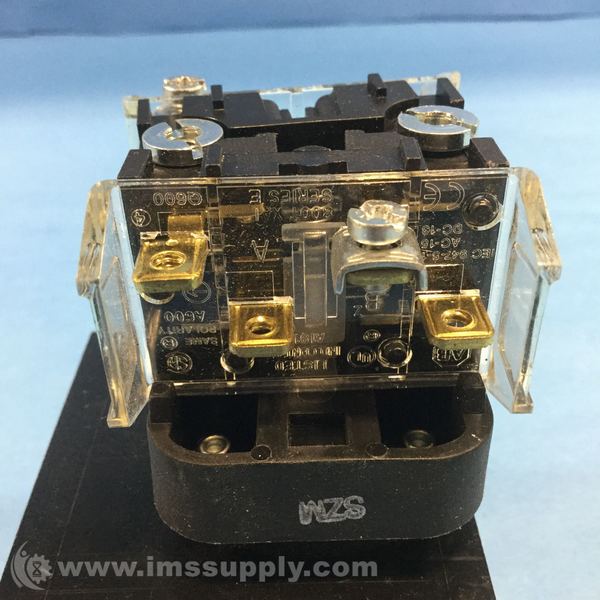

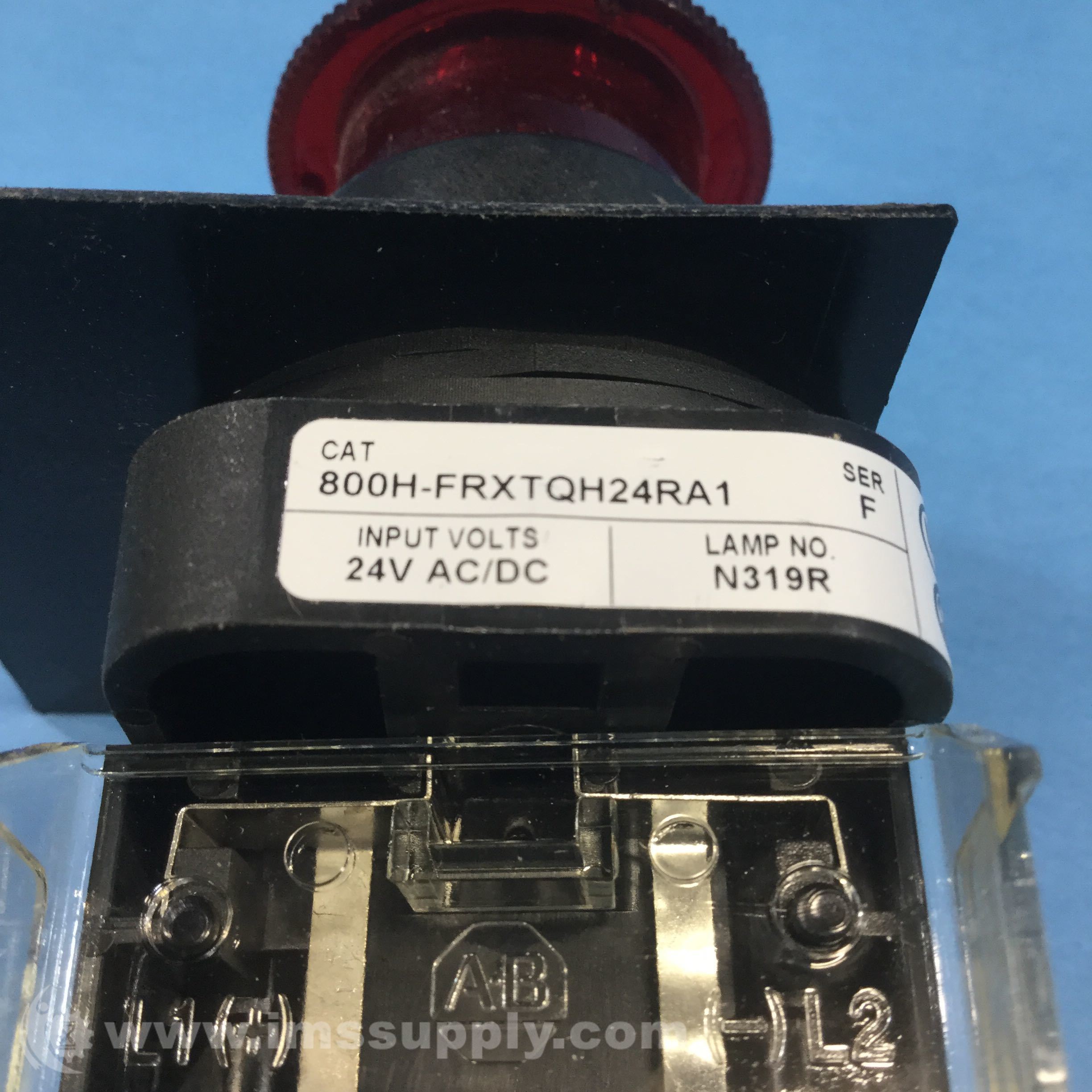

ALLEN BRADLEY 800T-FRXTQH24RA1 ILLUMINATED PUSH PULL DEVICE
Starting At: $168.19
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800T-FRXTQH24RA1
IMS Product Code: 1766453
Packaging: Sold Individually
Description:
Allen Bradley 800T-FRXTQH24RA1 Illuminated Push Pull Device
Specifications:
- Item Name: Illuminated Push Pull Device
- Type: 800H Series
- Voltage Rating: 24 VAC/VDC
- Action: Twist, Push Pull
- Contact Configuration: 1NCLB 1NO
- Actuator: Mushroom Head
- Color: Red Lens
- Size: 30 MM
- Contact Rating: Minimum: 24 MA At 24 V, Maximum: 10 A AC, 2.5 A DC
- Type Of Indicators: LED
- Number Of Position: 2
- Material: Round Plastic
- Enclosure: NEMA 4, 4X, 13
- Mounting Hole: 30.5 MM
- Dimension: 2-1/8 IN Length X 1-39/64 IN Width X 2-15/32 IN Height
- Operating Cycles: 250000
- Temperature Rating: -40 To 131 DEG F
- Environmental Conditions: Storage Temperature: -40 To 185 DEG F, Vibration: 10 - 2000 HZ, Shock: 1/2 Cycle Sine Wave For 11 MS Greater Equals 25 G (Contact Fragility) And No Damage At 100 G, Humidity: 50 - 95% Relative Humidity From 77 - 140 DEG F Per Procedure IV of MIL-STD-810C
- Dielectric Strength: 2200 V For 1 MIN, 1300 V For 1 MIN (Logic Reed)
- Wire Size: 18 - 14 AWG
