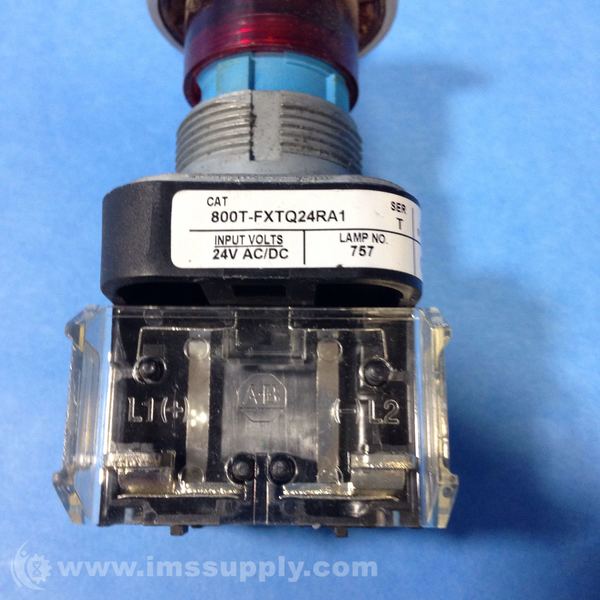

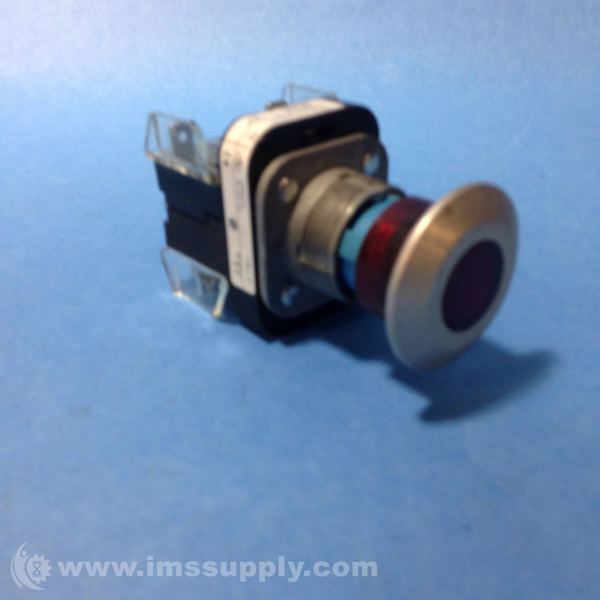

ALLEN BRADLEY 800T-FXTQ24RA1 ILLUMINATED PUSHBUTTON
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800T-FXTQ24RA1
IMS Product Code: 1749024
Variation: Unspecified
Unspecified
Color: Red
Series: T
Packaging: Sold Individually
Description:
Allen Bradley 800T-FXTQ24RA1 Illuminated Pushbutton
30mm metal pushbutton with mushroom head, 2-position maintained with twist release, 1 NO/1 NC contact block, 24V AC/DC incandescent illumination
Specifications
- Product Type: 30mm Push-Pull Device
- Operator cap/button shape: Round
- Operator cap/button material: Plastic
- Operator cap type: Mushroom head
- Operator cap color: Red
- Operator cap size: 40 mm
- Illumination lamp type: Incandescent
- Illumination module type: Full voltage
- Illumination module input voltage: 24V AC/DC
- Contact block thermal current rating: 10 A
- Contact block utilization category (AC): A600, AC-15
- Contact block utilization category (DC): Q600, DC-13
- Contact block operational voltage, max: 600V AC @ 600V DC
- Contact block configuration: 1 NCLB, 1 NO
- Type of electric connection: Screw connection
- Contact block termination wire range: 14 - 18 AWG
- Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m
- Illumination module termination wire range: 14 - 18 AWG
- Illumination module termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m
- Operator function: 2-position
- Operator special function: Maintained with twist release
- Hole diameter: 30.5 mm
- Enclosure compatibility (NEMA type): 1, 4, 12, 13
- Operator mechanical design life (cycles, min.): 250000
- Contact block electrical design life (cycles, at max. load): 1000000
- Shock: 25 G (contact fragility)/100 G (no damage)
- Vibration: 10 G maximum
- Operating temperature: -25 degrees C
- Storage temperature: -40 degrees C
- Certifications: ABS, CCC, CE, CSA, EAC, GOST, UL
- Material: Metal
