MSRP: $174.30
Starting At: $30.19

Quick Overview

Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800T-PD16
IMS Product Code: 155437
Packaging: Sold Individually

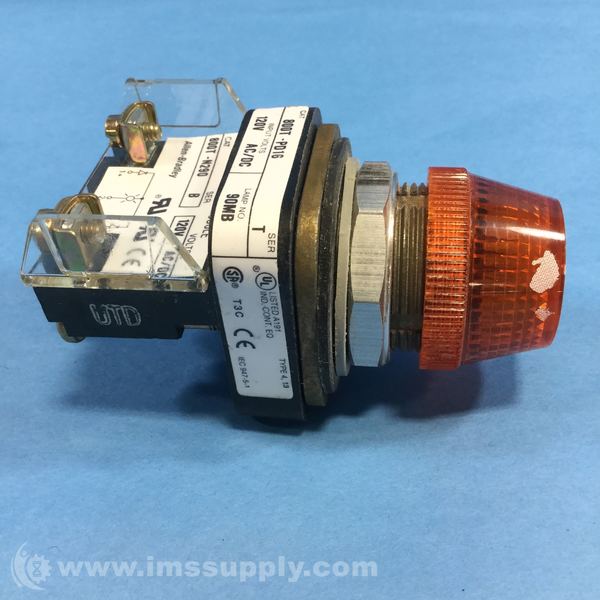

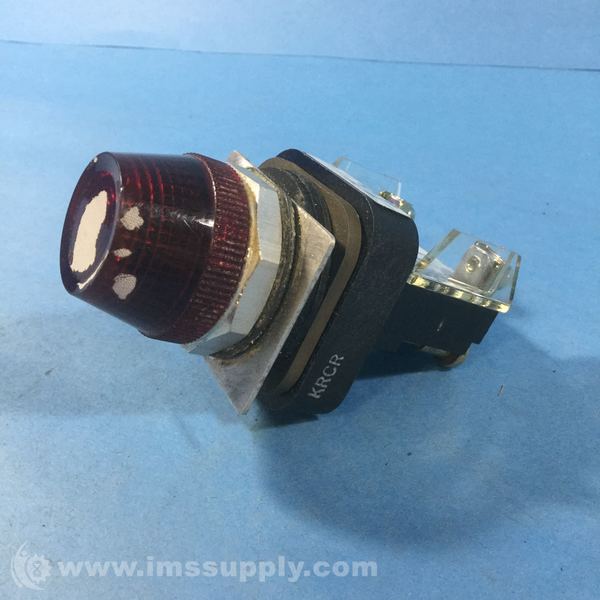

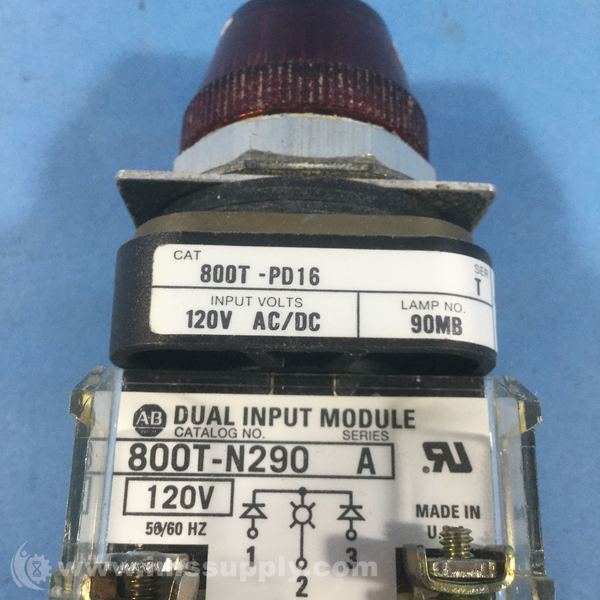

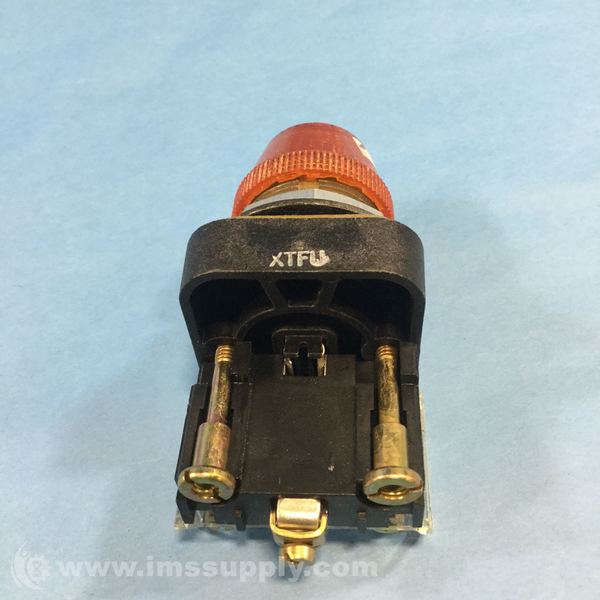

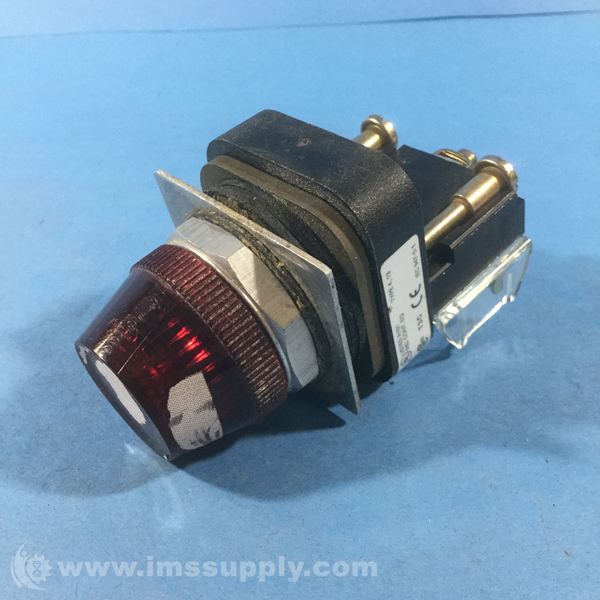

Allen Bradley 800T-PD16 800T Series Metal Dual Input Pilot Light


  •   Item Name: Pilot Light
  •  Type: 800T Series, Dual Input Diode
  •  Voltage Rating: 120 VAC At 50/60 HZ
  •   Lamp Type: Incandescent
  •   Enclosure: NEMA 4, 13
  •   Contact Configuration: 1NO 1NC
  •   Material: Metal
  •   Dimension: 1-13/16 IN Length X 1-13/16 IN  Width X 2-3/32 IN Height
  •   Temperature Rating: -40 To 131 DEG F
  •   Size: 30 MM
  •  Environmental Conditions: Storage Temperature: -40 To 185 DEG F, Vibration: 10 - 2000 HZ, 1.52 MM Displacement (Peak-To-Peak) Maximum/10 G Maximum (Except Logic Reed), Shock: 1/2 Cycle Sine Wave For 11 MS Greater Than Or Equal To 25 G (Contact Fragility) And No Damage At 100 G, Humidity: 50 - 95% Relative Humidity From 77 - 40 DEG F Per Procedure IV Of MIL-STD-810C, Method 507.1 Cycling Test
  •  Dielectric Strength: 2200 V For 1 MIN, 1300 V For 1 MIN (Logic Reed)
  •  Mounting Hole Size: 30.5 MM
  •  Wire Size: 18 - 14 AWG
  •  Operating Cycles: Electrical: 1000000 At Maximum Rated Load, 200000 At Maximum Rated Load (Logic Reed), Mechanical: 200000

A previously used, fully functional product that may have some signs of cosmetic wear.

Availability: 3 In Stock

Ships today if ordered in the next 2 hours and 6 minutes.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Allen Bradley. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
