ALLEN BRADLEY 889D-M4EC-2 DC MICRO CORDSET
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 889D-M4EC-2
IMS Product Code: 1766518
Packaging: Sold Individually
Description:

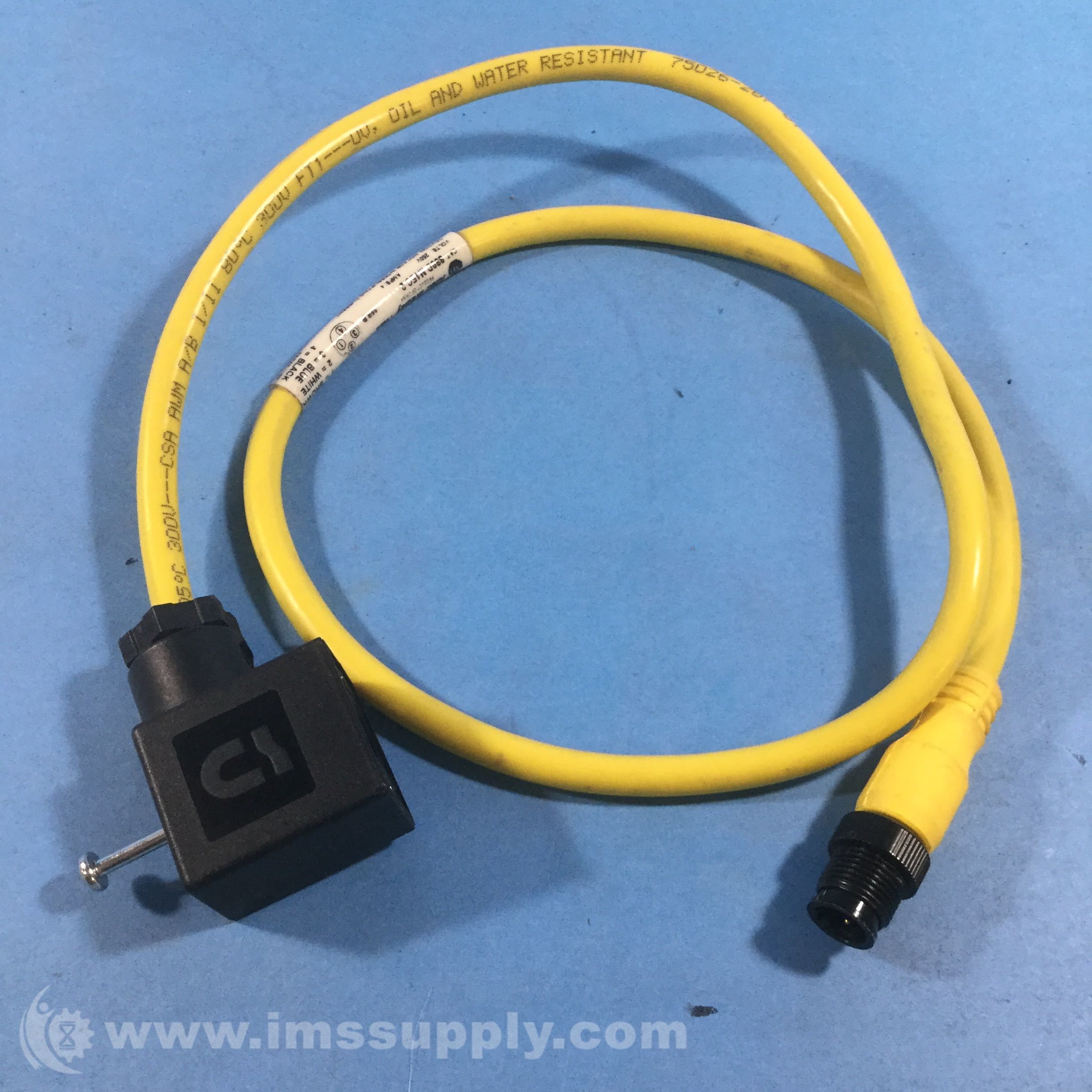

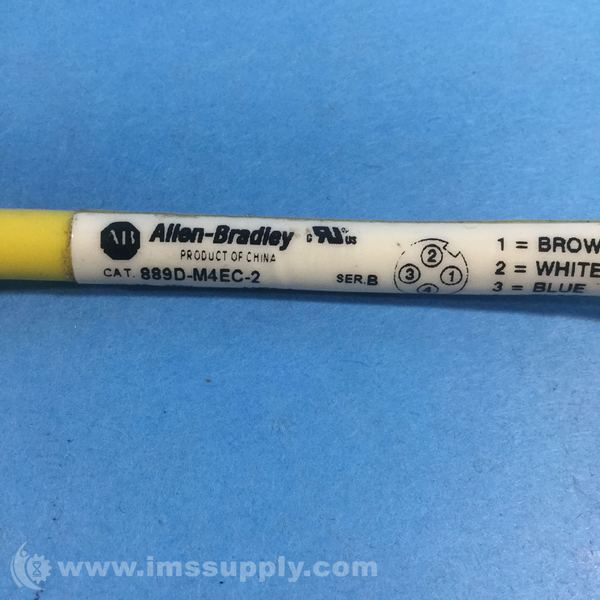

Allen Bradley 889D-M4EC-2 DC Micro Cordset
DC Micro (M12), Male, Straight, 4-Pin, PVC Cable, Yellow, Braided Shield, IEC Color Coded, No Connector, 2 meter (6.56 feet), 22AWG
Specifications
- Cable Jacket: PVC Cable, Yellow, Shld 22 AWG

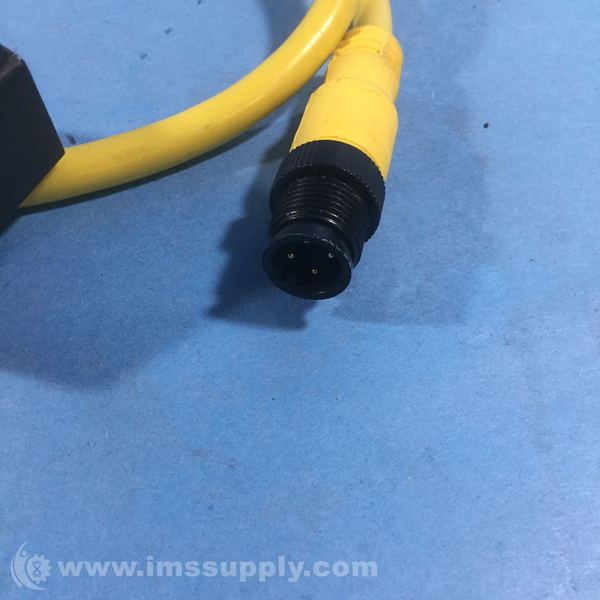

- Male End Connector Style: Male, Straight (ext. threads)
- Male Pin Count: 4-pin
- Wire Size: 22 AWG
- Number of Poles: 4
- Degree of Protection (IP), Mounted: IP69K
- Operating Temperature: -20 degrees C
- Cable Type: Yellow oil-resistant PVC jacket, 22 AWG conductors, 300V
- Material: Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass
- Bend Radius: 10 x diam
- Rated Voltage: 250 V
- Rated Current In: 4 A
- Cable Rating: UL AWM style 2661 VW-1 105 degrees C @ 300V, CSA AWM A/B I/II 80 degrees C @ 300V FT1, UV oil and water resistant
- With Shield Connection: True
- Cable Length: 2000 mm
- Diameter: 5 mm
- Material of Contact Surface: Gold
- Type of Plug-in Contact, Outer Side: Male (plug)
Used (Special):

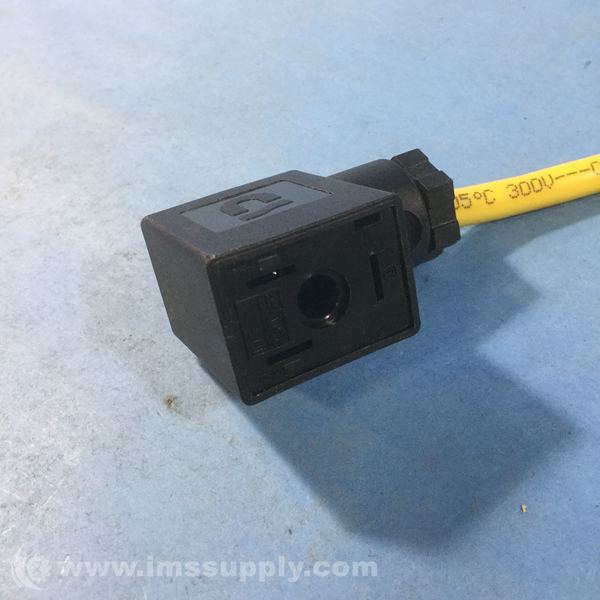

Additional part attached
