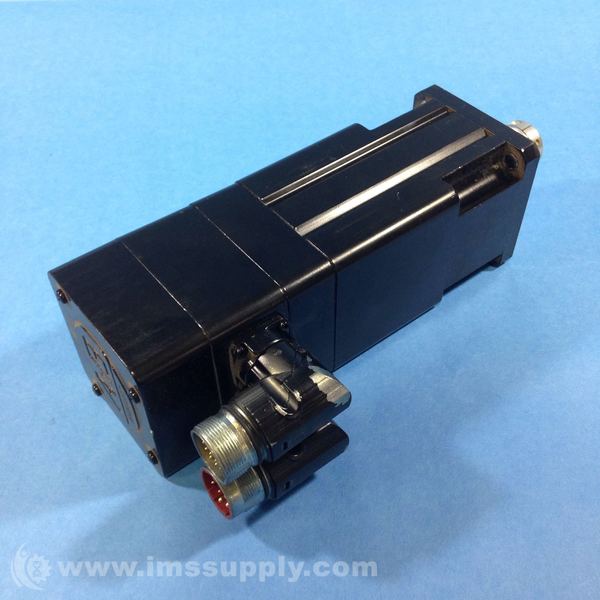

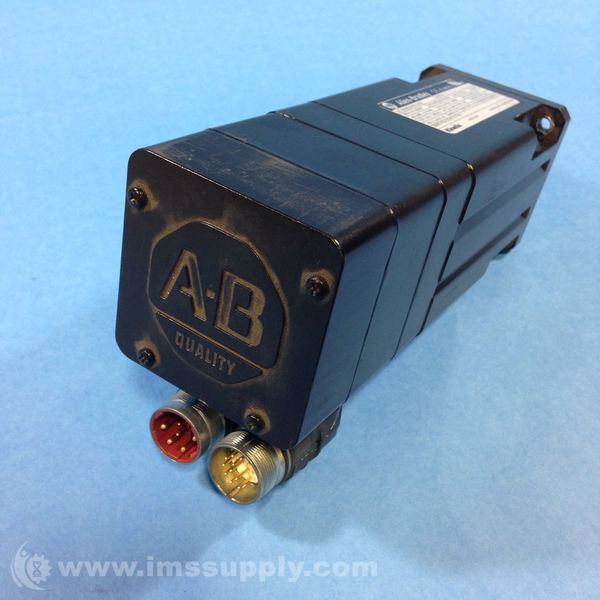

ALLEN BRADLEY MPL-B230P-VJ44AA SERVO MOTOR 5000 RPM
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: MPL-B230P-VJ44AA
IMS Product Code: 1738266
Packaging: Sold Individually
Description:

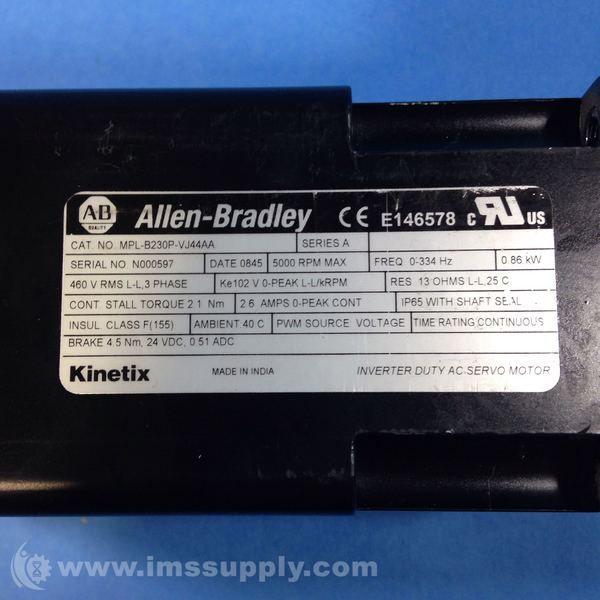

Allen-Bradley MPL-B230P-VJ44AA MP-Series Low Inertia Small Frame Brushless Servo Motor, 460V AC Voltage Rating, 75 mm Frame Size, 3-inch Magnet Stack, 5000 RPM Rated Speed, 0.86 kW Output, Continuous Stall Torque, Nm (lb-in.): 2.1 (18.6); Continuous Stall Current, Amp (0-peak): 2.6; Multi-turn 128 sin/cos Absolute Encoder (Hiperface protocol), Shaft Key/No Shaft Seal, Connectors: Circular (threaded) DIN Connector, Right Angle, 180° Rotatable, 24V DC Brake, Mounting Flange: IEC Metric, Standard Protection, Series A
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
