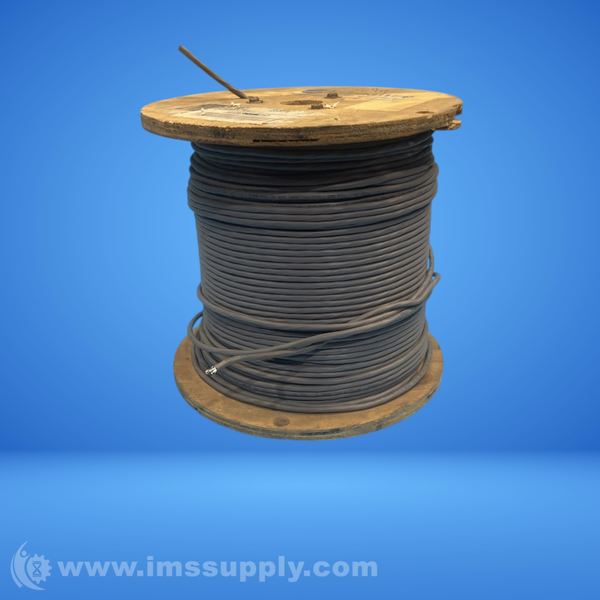

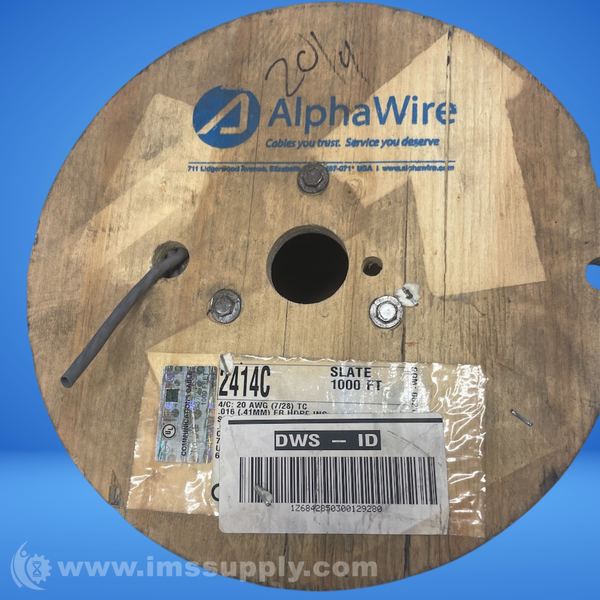

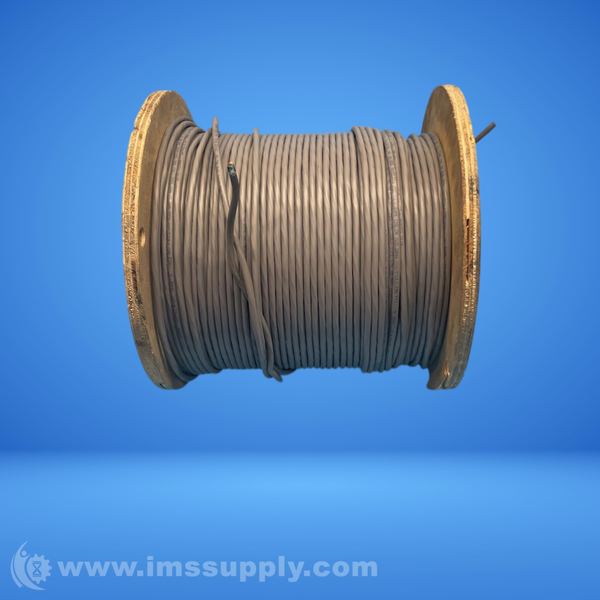

ALPHA WIRE 2414C COMMUNICATION AND CONTROL CABLE
Quick Overview
Manufactured By: ALPHA WIRE
Manufacturer Part Number: 2414C
IMS Product Code: 2170849
Packaging: Sold Individually
Description:
Alpha Wire 2414C Communication and Control Cable
Communication and control cable designed for applications including audio systems, data transmission, security systems, and control systems.
Specifications
- Diameter: 0.217 (0.228 max.) inches
- Conductor: 20 (7/28) AWG Tinned Copper
- Insulation: 0.016" Wall, Nom. FRPE
- Shield: Alum/Mylar Tape, 25% Overlap (min.)
- Jacket: 0.022" Wall, Nom. PVC
- Temperature Range: -20 to 75 degrees C
- Voltage Rating: 300 VRMS
- Capacitance: 23.9 pF/ft @1 kHz, Nominal Conductor-to-Conductor
- Inductance: 0.19 �H/ ft, Nominal
- Conductor DCR: 10.2 O/1000ft @20 degrees C, Nominal
