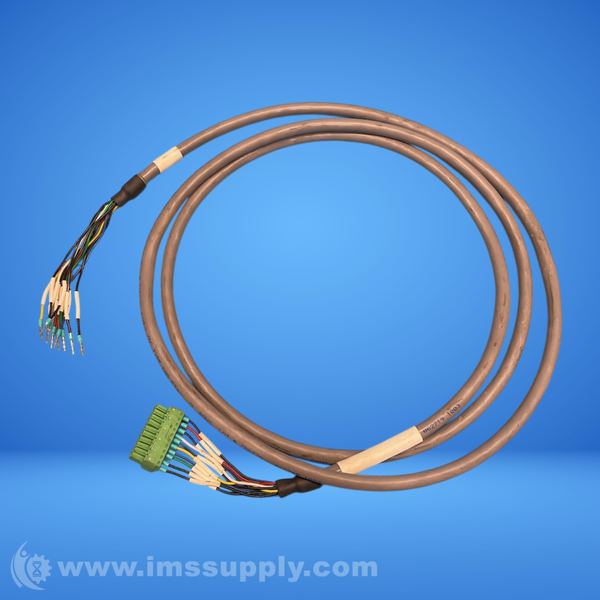

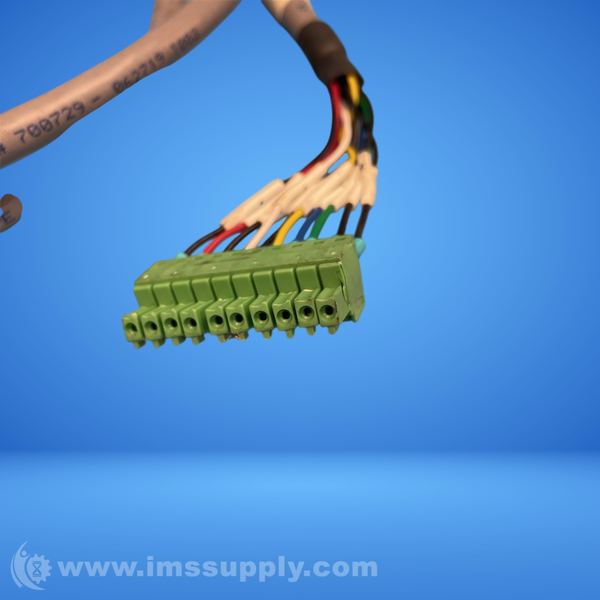

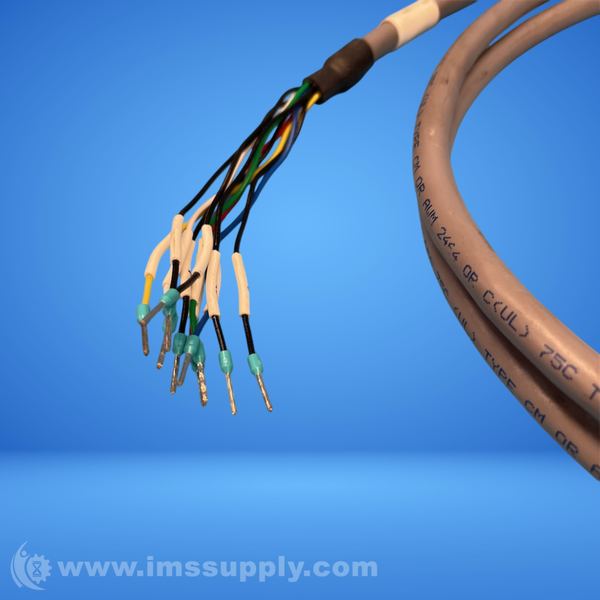

ALPHA WIRE 6376 COMMUNICATION CONTROL CABLE
Quick Overview
Manufactured By: ALPHA WIRE
Manufacturer Part Number: 6376
IMS Product Code: 2129821
Packaging: Sold Individually
Description:
Alpha Wire 6376 Communication Control Cable
22 AWG 5 Pair 300V Foil Braid SR-PVC Insulation Communication Control Industrial Cable
Specifications
- Diameter (in): 0.312 (0.328 max.)
- Conductor: 22 (7/30) AWG Tinned Copper
- Insulation: 0.010 Wall, Nom. PVC, Semi-Rigid
- Pair: 2/Cond Cabled Together
- Twists: 8.0 Twists/foot (min.)
- Shield: Alum/Mylar Tape, 25% Overlap, Min.
- Drain Wire: 24 (7/32) AWG Tinned Copper
- Braid: Tinned Copper, 65% Coverage Nom.
- Jacket: 0.032 Wall, Nom. PVC
- Color(s): SLATE
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 63 lbs. (max.)
- Voltage Rating: 300 VRMS
- Characteristic Impedance: 70 O
- Mutual Capacitance: 35 pF/ft @1 kHz, Nominal
- Ground Capacitance: 63 pF/ft @1 kHz, Nominal
- Conductor DCR: 16.5 O/1000ft @20°C, Nominal
- OA Shield DCR: 3.4 O/1000ft @20°C, Nominal
- Conductor Count: 5 PAIRS
- Conductor Material: TINNED COPPER
- Conductor Size: 22 AWG (AMERICAN WIRE GAUGE)
- Conductor Type: STRANDED CONDUCTOR
- Fire Rating: GENERAL PURPOSE
- Insulation Material: SRPVC-SEMI-RIGID PVC
- Jacket Material: PVC-POLYVINYL CHLORIDE
- NEC Rating: UL LISTED ART 800
- Screen/Shield Type: BRAID OVER FOIL SHIELD
- Screen/Shield: YES
- Shield Construction: OVERALL FOIL & BRAID
- UNSPSC Code: 26121524
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
