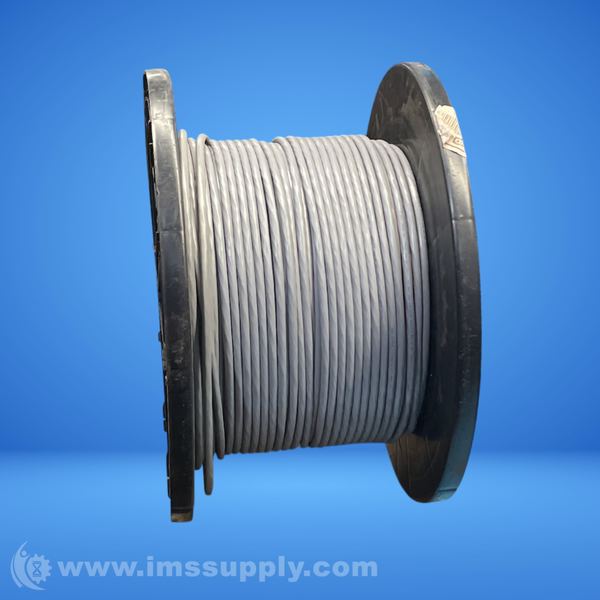

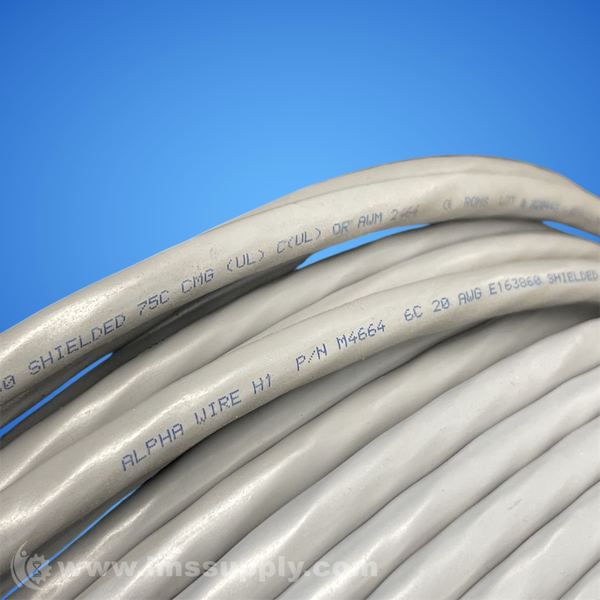

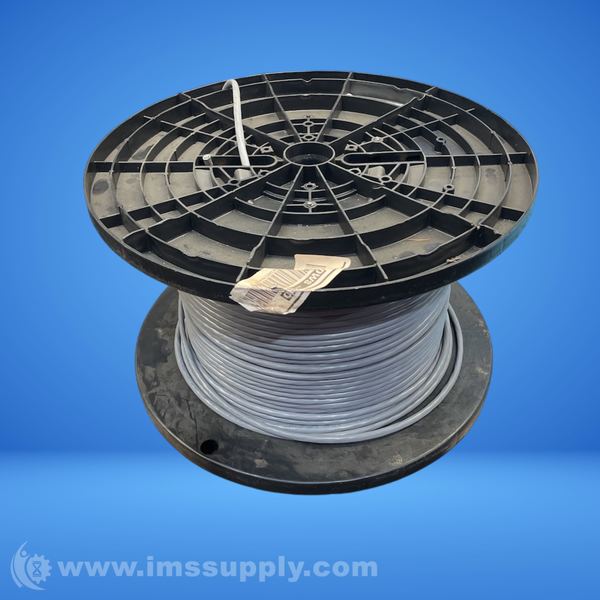

ALPHA WIRE M4664 COMMUNICATION AND CONTROL CABLE
Quick Overview
Manufactured By: ALPHA WIRE
Manufacturer Part Number: M4664
IMS Product Code: 2170881
Packaging: Sold Individually
Description:
Alpha Wire M4664 Communication and Control Cable
20 AWG, 6 conductors, tinned copper, PVC insulation, aluminum/mylar tape shield.
Specifications
- Conductor: 20 AWG Tinned Copper
- Insulation: 0.016" Wall, Nom. PVC
- Shield: Alum/Mylar Tape, 25% Overlap, Min.
- Jacket: 0.032" Wall, Nom.,PVC
- Temperature Range: -20 to 80 degrees C
- Voltage Rating: 300 VRMS
- Capacitance: 45 pF/ft @1 kHz, Nominal Conductor to Conductor
- Conductor Count: 6 Conductors
- NEC Rating: NEC CMG
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
