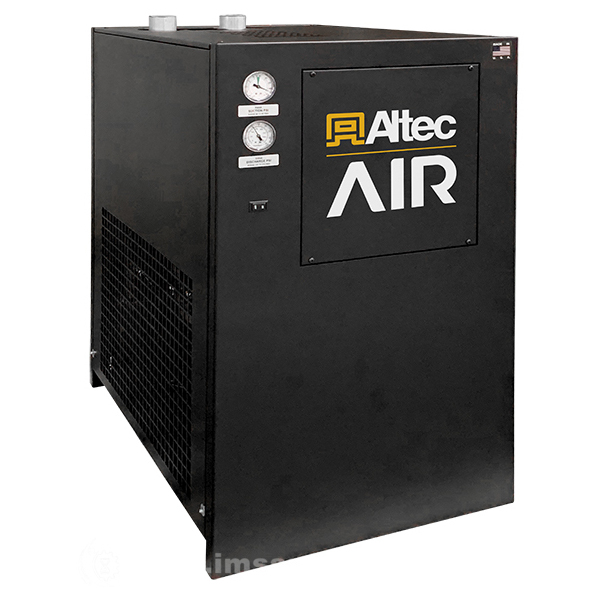

ALTEC AIR UA100A-2 NON-CYCLING REFRIGERATED AIR DRYER 115 VAC

MSRP: $3,352.00
Starting At: $2,396.68

Quick Overview

Manufactured By: ALTEC AIR
Manufacturer Part Number: UA100A-2
IMS Product Code: 1929592
Packaging: Sold Individually

Description:

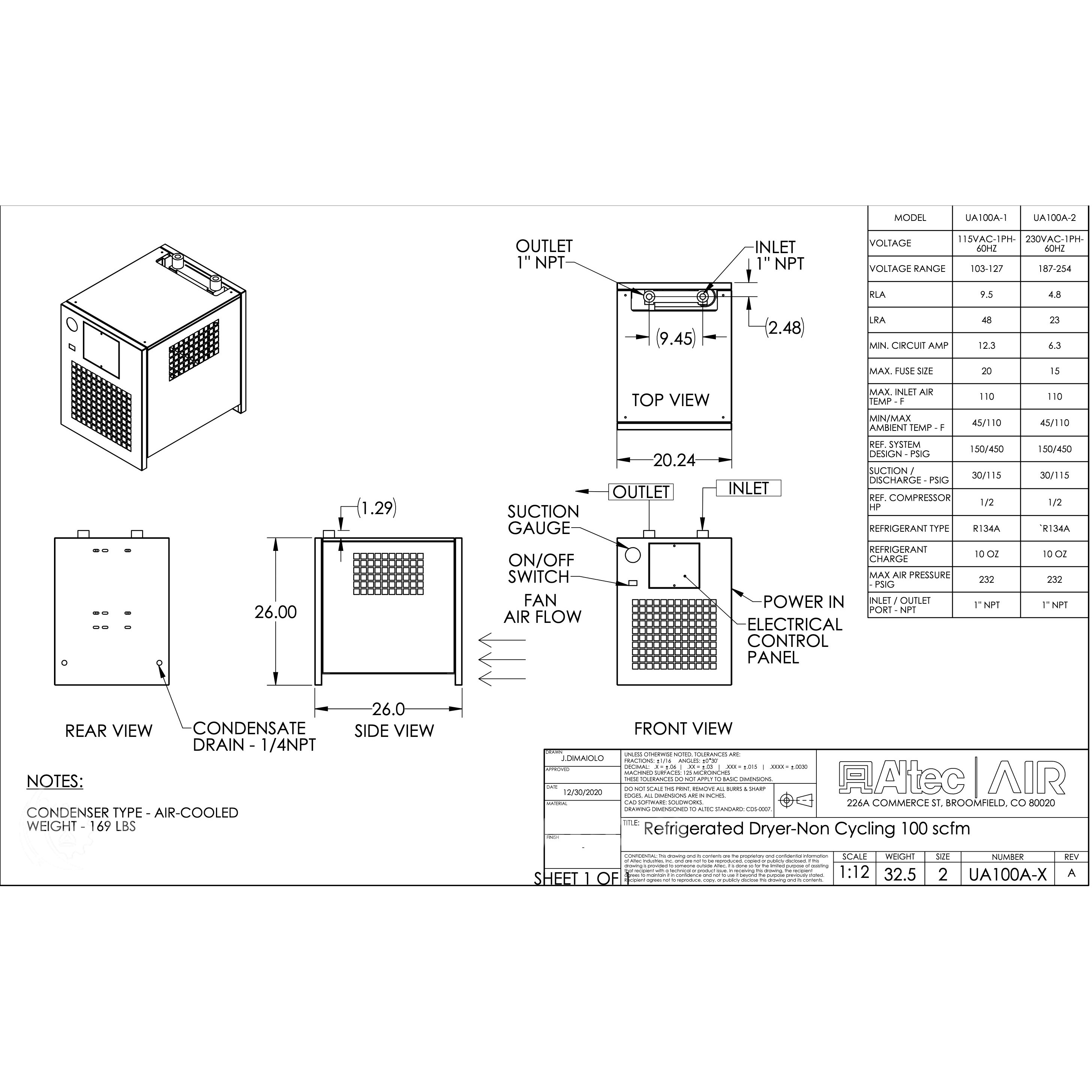

Refrigerated Dryer-Non Cycling 100 scfm

Features:

  • Outlet Dewpoint with 100°F / 38°C Saturated Inlet
  • 38°F Pressure Dewpoint (PDP)
  • Maximum Pressure - 232 PSIG
  • Maximum Inlet Temperature - 120°F / 49°C
  • Voltage: 230VAC-1PH-60Hz
  • Voltage Range: 187-254
  • RLA: 4.8
  • LRA: 23
  • Min. Circuit Amp: 6.3
  • Max. Fuse Size: 15
  • Max. Inlet Air Temp: 110
  • Min/max Ambient Temp: 45/110
  • Ref. System Design - PSIG: 150/450
  • Suction / Discharge - PSIG: 30/115
  • Ref. Compressor Hp: 1/2
  • Refrigerant Typer: R134A
  • Refrigerant Charge: 10 OZ
  • Max Air Pressure PSIG: 232
  • Inlet / Outlet Port - NPT: 1" NPT

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 7 Days

IMS Supply is an authorized Altec AIR distributor.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
