AMCI HT-20 RESOLVER TRANSDUCER
Quick Overview
Manufactured By: AMCI
Manufacturer Part Number: HT-20
IMS Product Code: 1896677
Packaging: Sold Individually
Description:

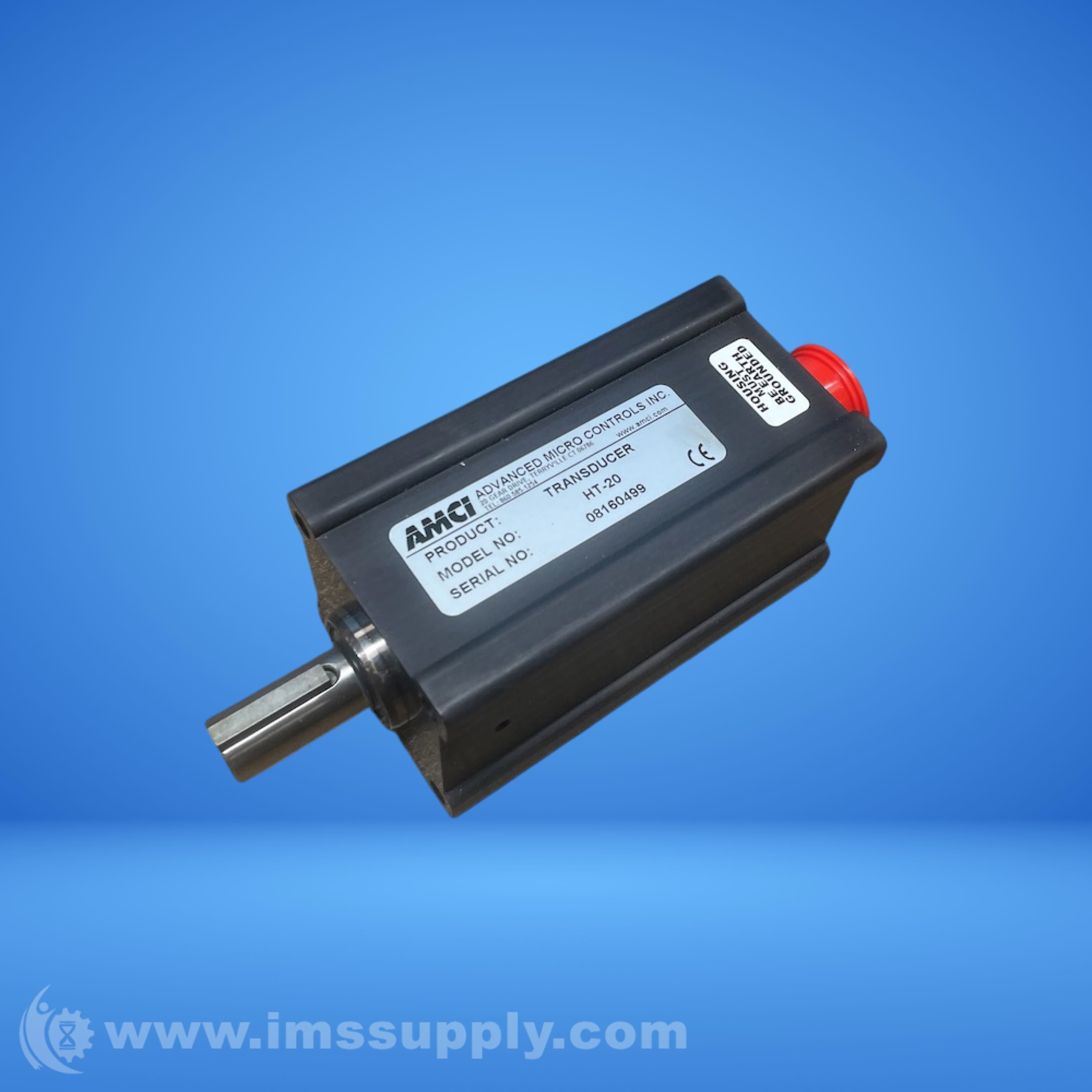

AMCI HT-20 Resolver Transducer
Single-turn resolver transducer with 5/8" keyed shaft, used for precise angular measurement.
Specifications
- Shaft Loading: 100 lbs. radial/50 lbs. axial maximum
- Starting Torque: 8.0 oz. in max @25 degrees C
- Moment of Inertia: 6.25 X 10^-4 oz-in-sec^2
- Weight: 4 lbs.
- Input Frequency: 5000 Hz
- Rotor Input Voltage: 7.0 V rms
- Stator Output Voltage: 6.65 V rms
- Transformation Ratio: 0.95 ± 5%
- Input Current: 17 mArms max.
- Phase Shift: 10 degrees max.
- Accuracy: max. error ±7 minutes
- Operating Temperature: -40 degrees C to 125 degrees C
- Shock: 50 G's for 11 mSec
- Vibration: 15 g's to 2,000 Hz
- Dimensions: 18 cm x 6.5 cm x 6.5 cm
