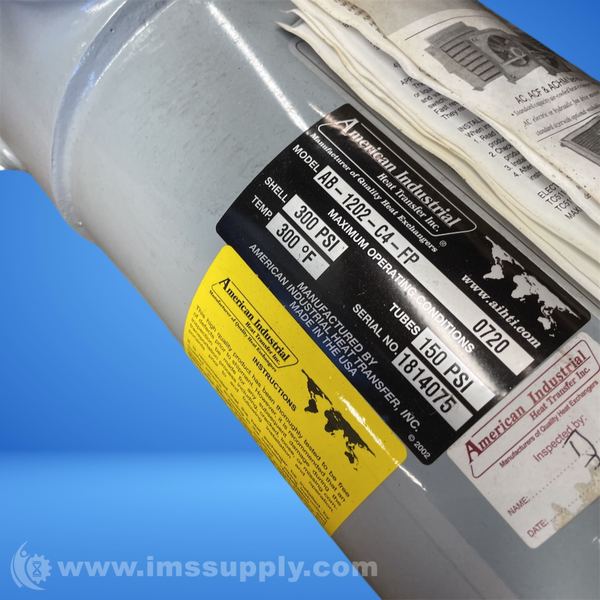

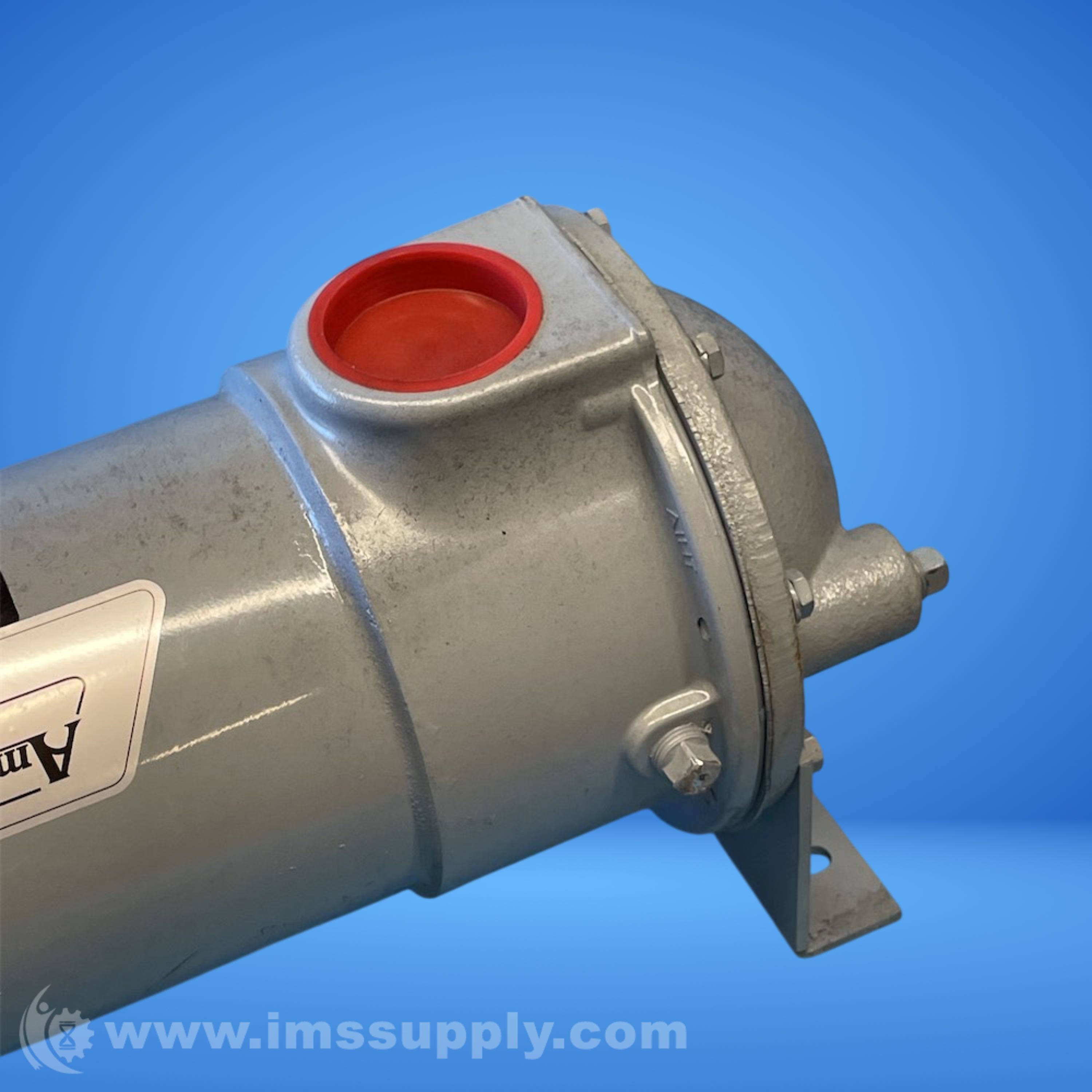

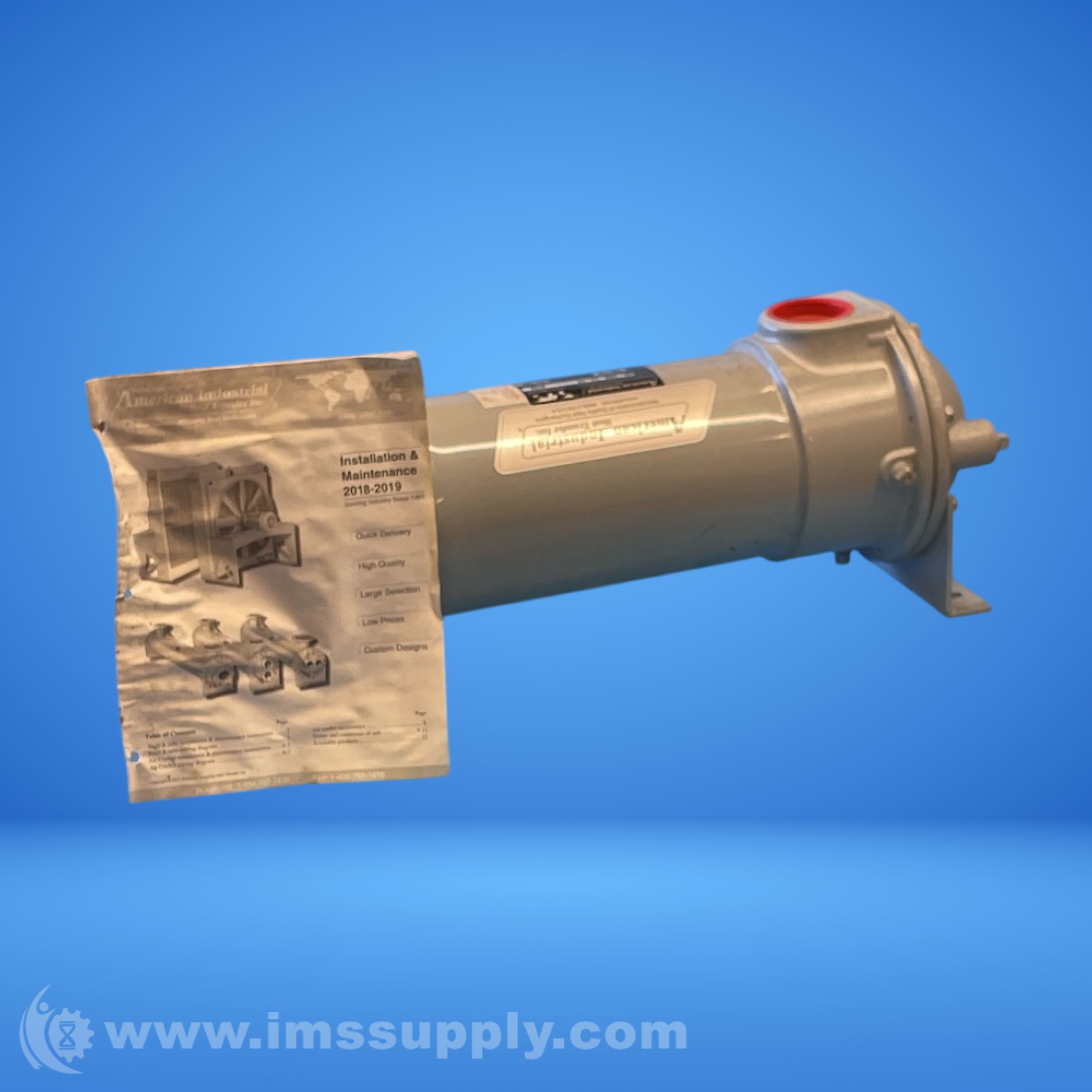

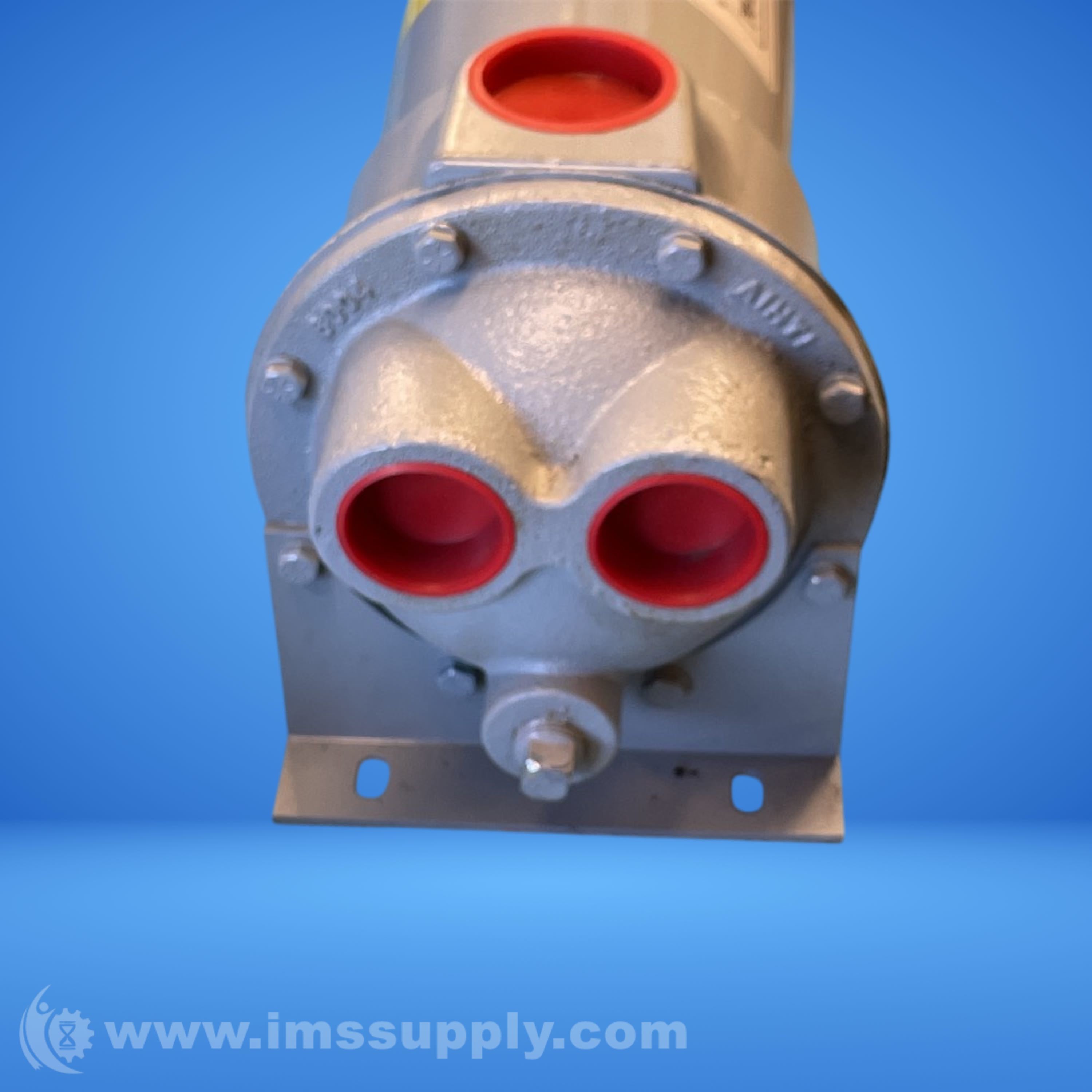

AMERICAN INDUSTRIAL AB-1202-C4-FP HEAT EXCHANGER
Quick Overview
Manufactured By: AMERICAN INDUSTRIAL HEAT TRANSFER, INC.
Manufacturer Part Number: AB-1202-C4-FP
IMS Product Code: 2145871
Packaging: Sold Individually
Description:
American Industrial AB-1202-C4-FP Heat Exchanger
Brass shell, copper tubing, cast iron bonnet, brass baffle, hypalon gasket heat exchanger with 4 passes
Specifications
- Series: AB
- Baffle Material: Brass
- Baffle Spacing: 4.500 in
- Cooling Tube Diameter: 0.250 in
- Drain Port Size: 0.500 NPT
- Effective Tube Length: 24.44 in
- End Bonnet Material: Cast Iron
- Flow Rate - Shell Side: 105 gpm
- Flow Rate - Tube Side: 7.5 to 56.0 gpm
- Gasket Material: Hypalon
- Max Operating Temperature: 300 degrees F
- Mounting Bracket Material: Steel
- Mounting Hole Spacing: 5.00 in
- Number Of Passes: 4
- Overall Length: 24.44 in
- Port Size - Shell Side: NPT 2.000
- Port Size - Tube Side: NPT 1.500
- Shell Diameter: 6.13 in
- Shell Material: Brass
- Tubing Material: Copper
- Weight: 79.00 lbs
- Pressure: 300PSI
