Manufactured By: AMETEK
Manufacturer Part Number: 4M928
IMS Product Code: 1761734
Packaging: Sold Individually

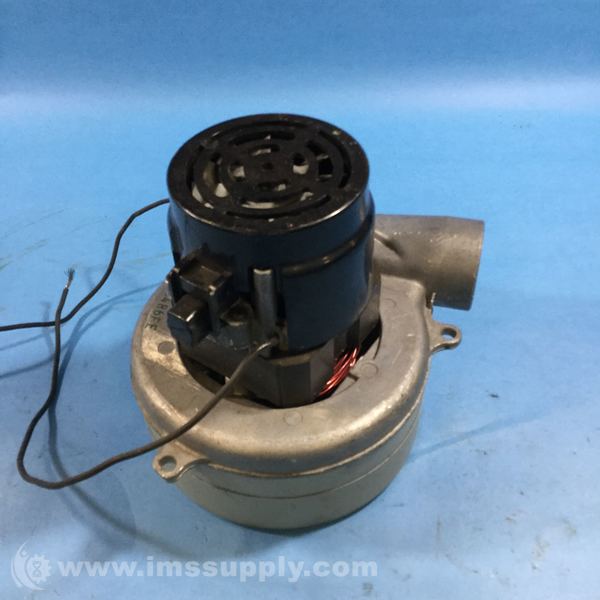

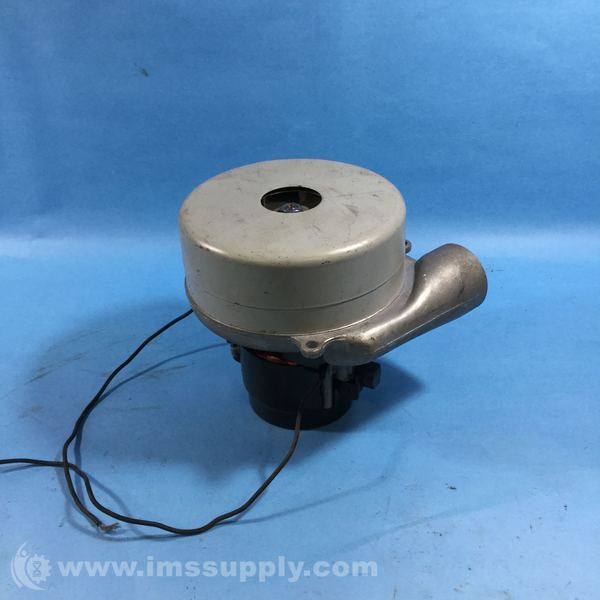

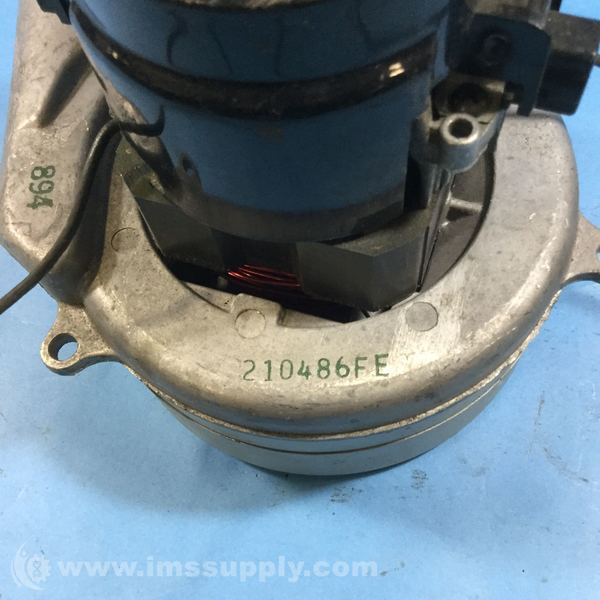

Ametek 4M928 120V Universal AC/DC Vacuum Motor

  • Item Vacuum Motor
  • Motor/Blower Type Bypass
  • Discharge Tangential Bypass
  • Blower Stages 2
  • No. of Speeds 1
  • Motor Enclosure Design Open
  • CFM @ 2-In. Orifice 105.5
  • Vacuum (H2O Sealed) 88.2
  • Voltage 120
  • Hz 60/50
  • Phase 1
  • Max. Amps 8.2
  • Max. Air Watts 285
  • Motor Mounting Type Lug
  • Motor Design Universal AC/DC
  • Motor Mounting Position All Angle
  • Motor Thermal Protection None
  • Ins. Class A
  • Bearings Ball
  • Ambient Temperature 40 Degrees C
  • Body Dia. 5.7"
  • Overall Height 6-1/3"
  • Mounting Brackets Thermoset
  • Duty Intermittent
  • Average Life 500 hr.
  • Standards UL Recognized (E47185), CSA Certified (LR31393)
  • Replacement Brushes 2UV81
