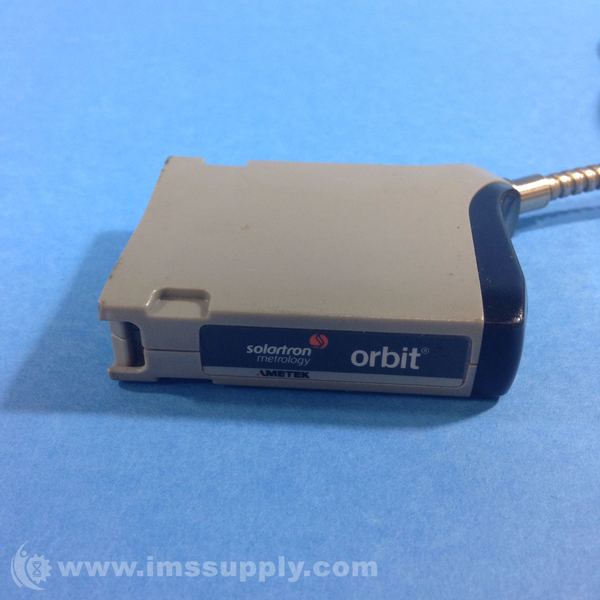

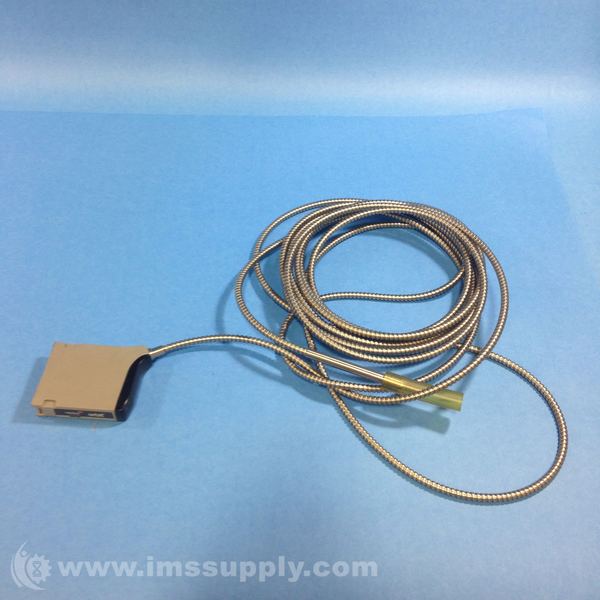

AMETEK DP5S GAUGING PROBE DIGITAL SPRING PUSH
Quick Overview
Manufactured By: AMETEK
Manufacturer Part Number: DP5S
IMS Product Code: 1734751
Packaging: Sold Individually
Description:
Ametek DP5S Gauging Probe Digital Spring Push
Specifications:
- Axial Cable Outlet: DP/5/S
- Body Diameter: 8h6
- Measurement Range (mm): 5
- Pre-Travel (mm): 0.15
- Over Travel (mm): 0.85
- Accuracy (% of reading)1: 0.05
- Repeatability (μm): <0.15
- Tip Force (N) @ centre travel: 0.7 ± 20%
- Resolution (μm user selectable): <0.05
- Data Speed (user selectable): Up to 3906 Readings Per Second
- Environmental Protection: IP65 (Probe only)
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
