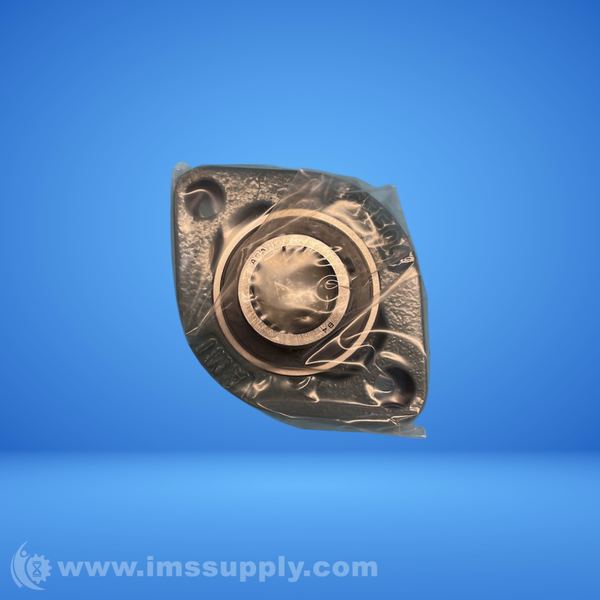

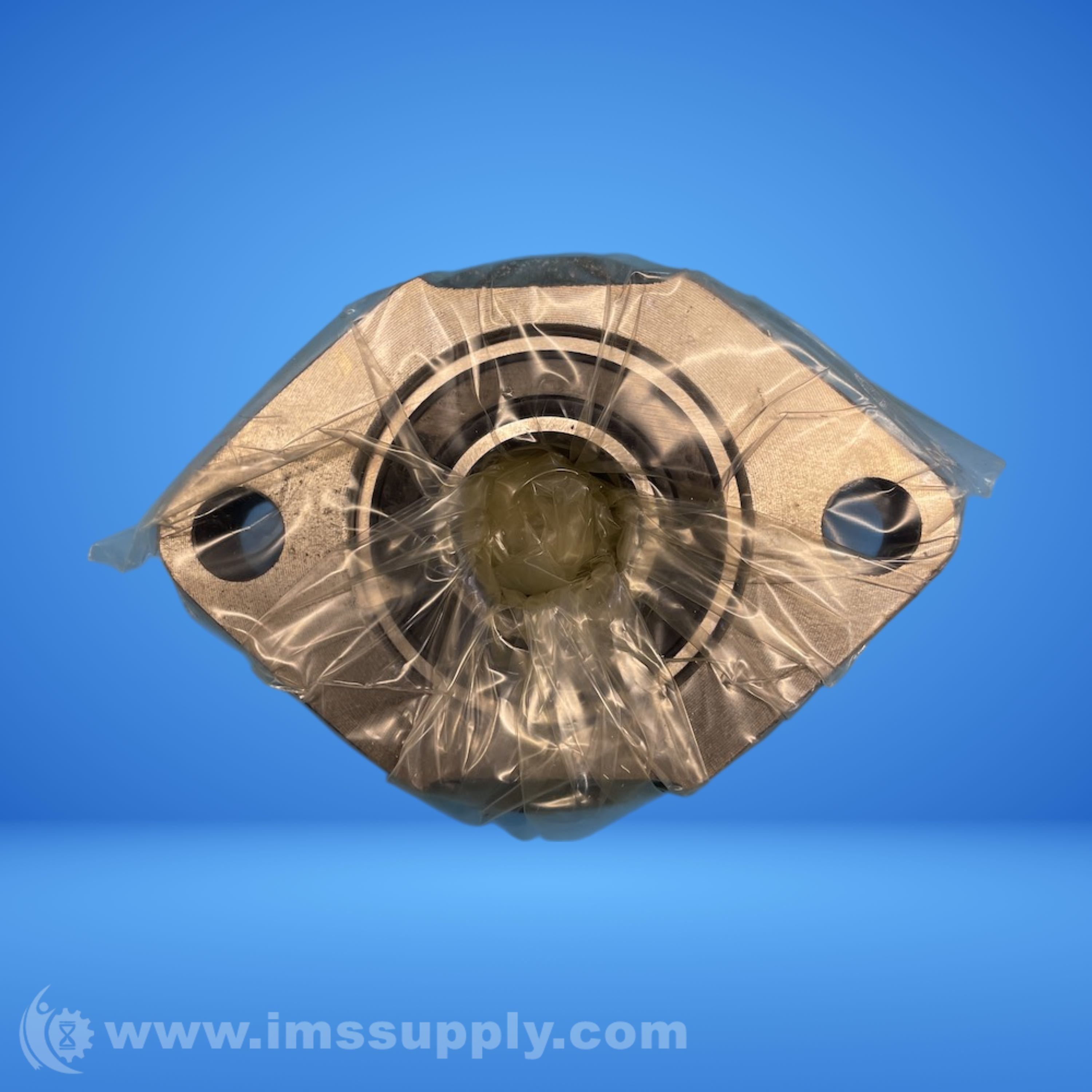

AMI BEARINGS BLCTE204 FLANGE MOUNT BALL BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: BLCTE204
IMS Product Code: 2132296
Packaging: Sold Individually
Description:
Ami Bearings BLCTE204 Flange Mount Ball Bearing
Two-Bolt Flange Ball Bearing Unit with 20 mm Bore, Set Screw Locking, Malleable Iron Housing
Specifications
- Shaft Diameter: 20 mm
- Bolt Size: M8
- Bearing: B4
- Weight: 0.98 lb
- Bore Diameter: 20 mm
- Housing Material: Malleable Iron
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Contact Seal
- Lubrication Type: Non-Relubricatable
- Bore Type: Straight
- Radial Dynamic Load Capacity: 2150 lbf
- Radial Static Load Capacity: 1080 lbf
- Length Through Bore: 0.866 in
- Series: BLCTE200
- Type Of Bearing: Ball
- Mounting Type: 2-Bolt Flange
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships Tomorrow
