AMI BEARINGS BLFL6-19 FLANGE MOUNT BALL BEARING UNIT
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: BLFL6-19
IMS Product Code: 1838843
Packaging: Sold Individually
Description:

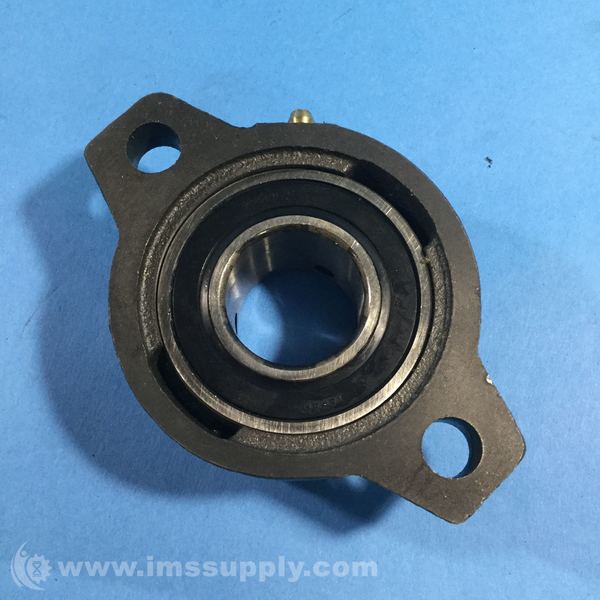

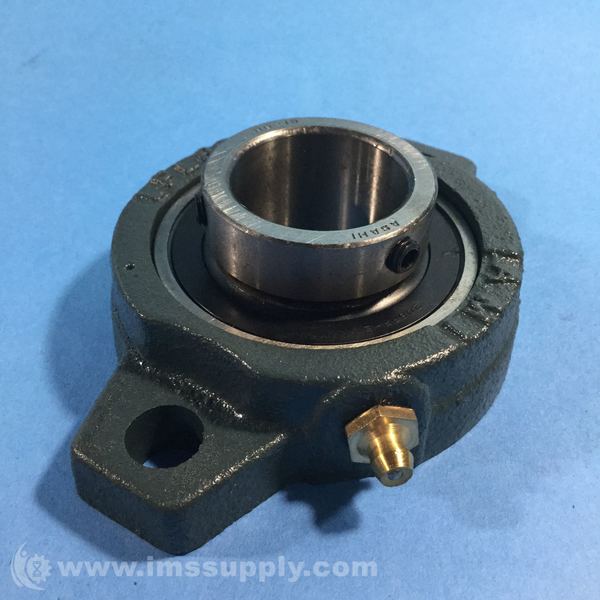

Ami Bearings BLFL6-19 Flange Mount Ball Bearing Unit
Flange-mount ball bearing unit with 1-3/16 in bore, 2-bolt flange, set screw locking, cast iron housing, non-expansion bearing, standard duty, and contact seal.
Specifications
- Shaft Diameter: 1-3/16 in
- Bolt Size: 3/8 in
- Bearing: B6-19
- Housing: LFL6
- Housing Material: Cast Iron
- Lubrication Fitting Tap: 1/8-27 NPT
- Weight: 1.42 lb
- a: 4-7/16 in
- e: 3-9/16 in
- g: 15/32 in
- x: 7/8 in
- s: 15/32 in
- b: 3-3/32 in
- Z: 1.350 in
- Bi: 1.193 in
- Bore Diameter: 1-3/16 in
- Duty Type: Standard Duty
- Bolt Center To Center Length: 3.5625 in
- Locking Device: Set Screw
- Bearing Insert Material: AISI 52100 Steel
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Contact Seal
- Overall Length Diameter: 4.4375 in
- Bore Type: Straight
- Lubrication Type: Relubricatable
- Radial Dynamic Load Capacity: 2150 lbf
- Radial Static Load Capacity: 1080 lbf
- Length Through Bore: 0.8660 in
- Series: BLFL200
- Housing Type: Narrow Width Two-Bolt Flange
- Type Of Bearing: Ball
- Mounting Type: 2-Bolt Flange
- Application: General Purpose
- Inner Ring Width: Narrow
- Insert Type: Ball Bearing
- Relubrication: Yes
- Seal: Contact seal
- Type: 2 Bolt Flange
