AMI BEARINGS BPP3 PILLOW BLOCK BEARING
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: BPP3
IMS Product Code: 1797882
Packaging: Sold Individually
Description:

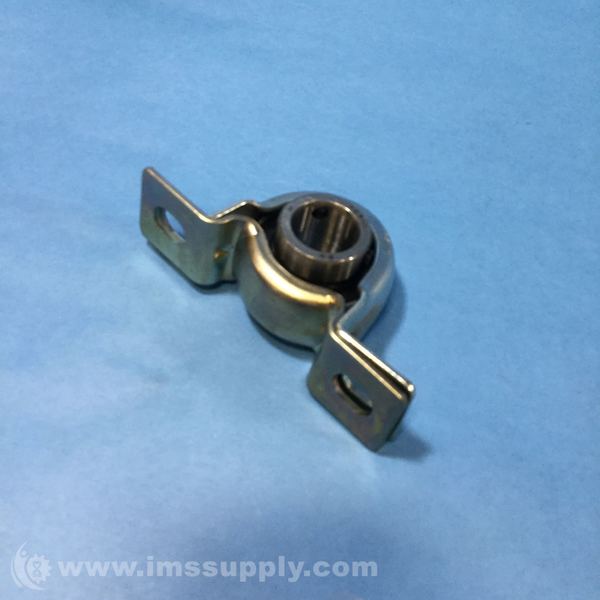

Ami Bearings BPP3 Pillow Block Bearing
Pillow Block Ball Bearing Unit - 2-Bolt Base, 17 mm Bore, Pressed Steel Material, Standard Duty, Non-Expansion Bearing (Fixed)
Specifications
- Shaft Diameter: 17 mm
- Stamping Load Limit: 300 lb
- Bolt Size: M8
- Bearing: B3
- Housing: PP3
- Weight: 0.35 lb
- Mounting Type: 2-Bolt Base
- Bore Type: Round
- Bore Diameter: 17 mm
- Bolt Center To Center Length: 64 mm to 73 mm
- Base To Bore Centerline: 22.2 mm
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Seal Type: Contact/Lip
- Housing Material: Pressed Steel
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Length: 92.1 mm
- Base Width: 25.4 mm
- Radial Dynamic Load Capacity: 975 kgf
- Radial Static Load Capacity: 490 kgf
- Lubrication Type: Cannot Be Relubricated
- Series: BPP200
- Locking Type: Set Screw
- Number Of Mounting Holes: 2
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 46 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
